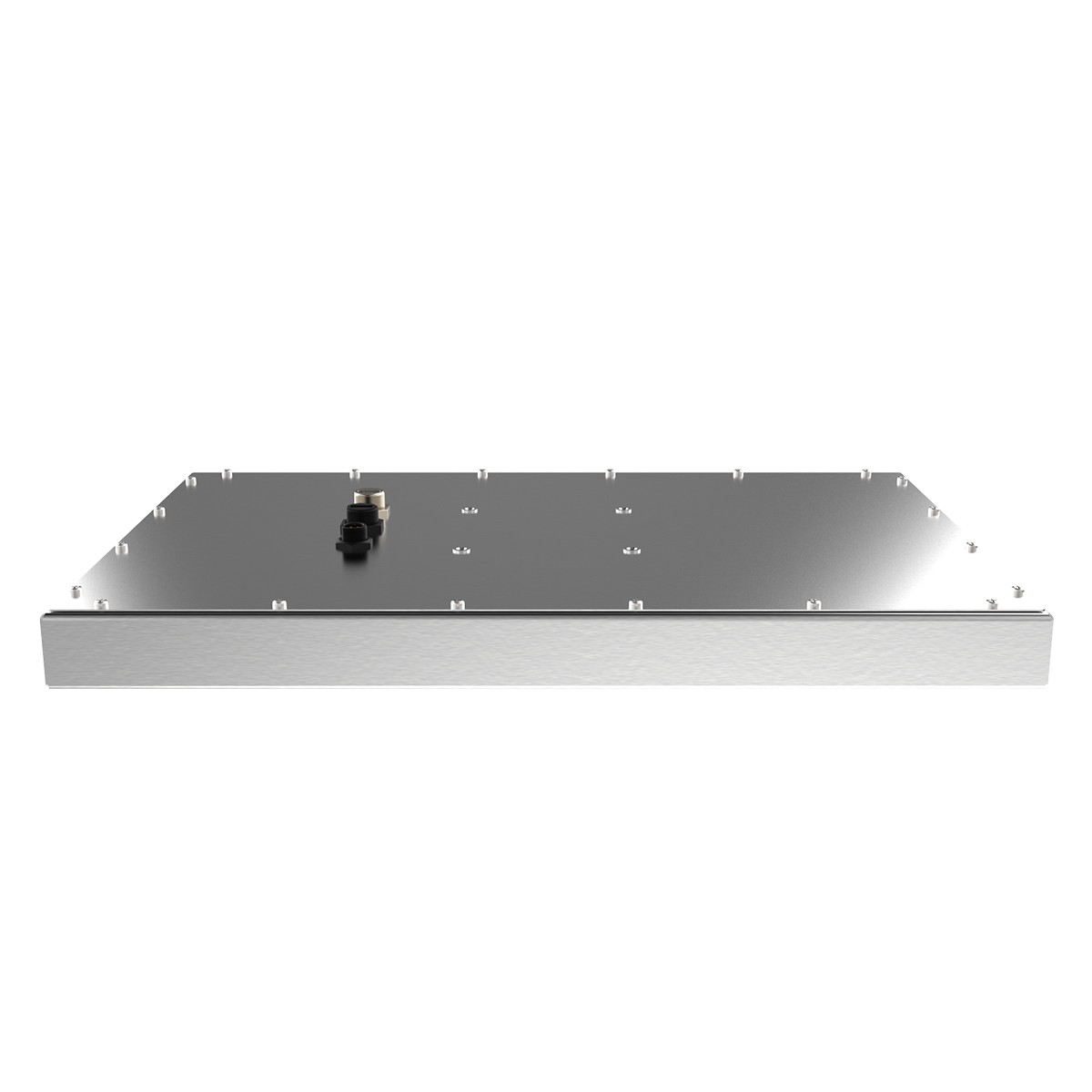

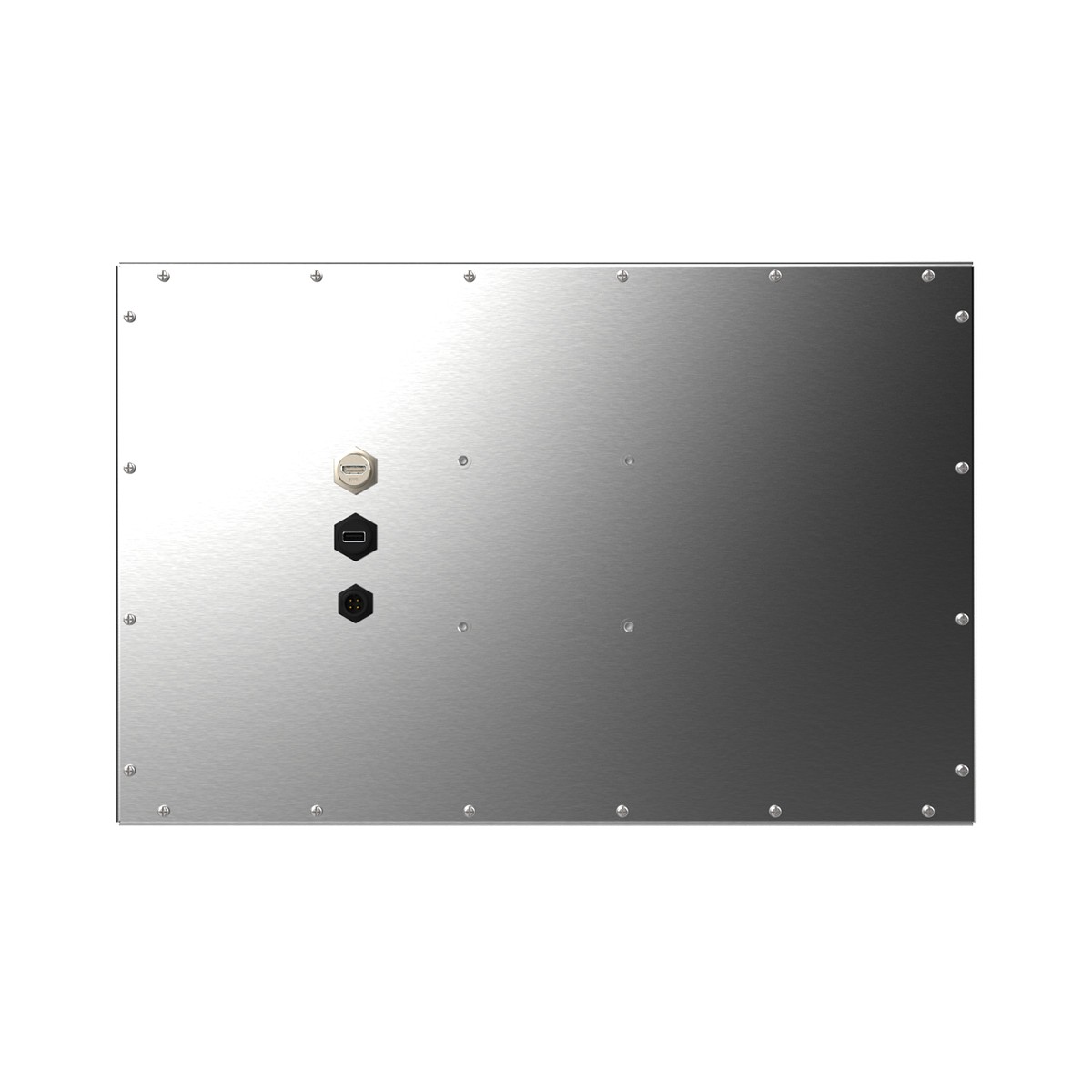

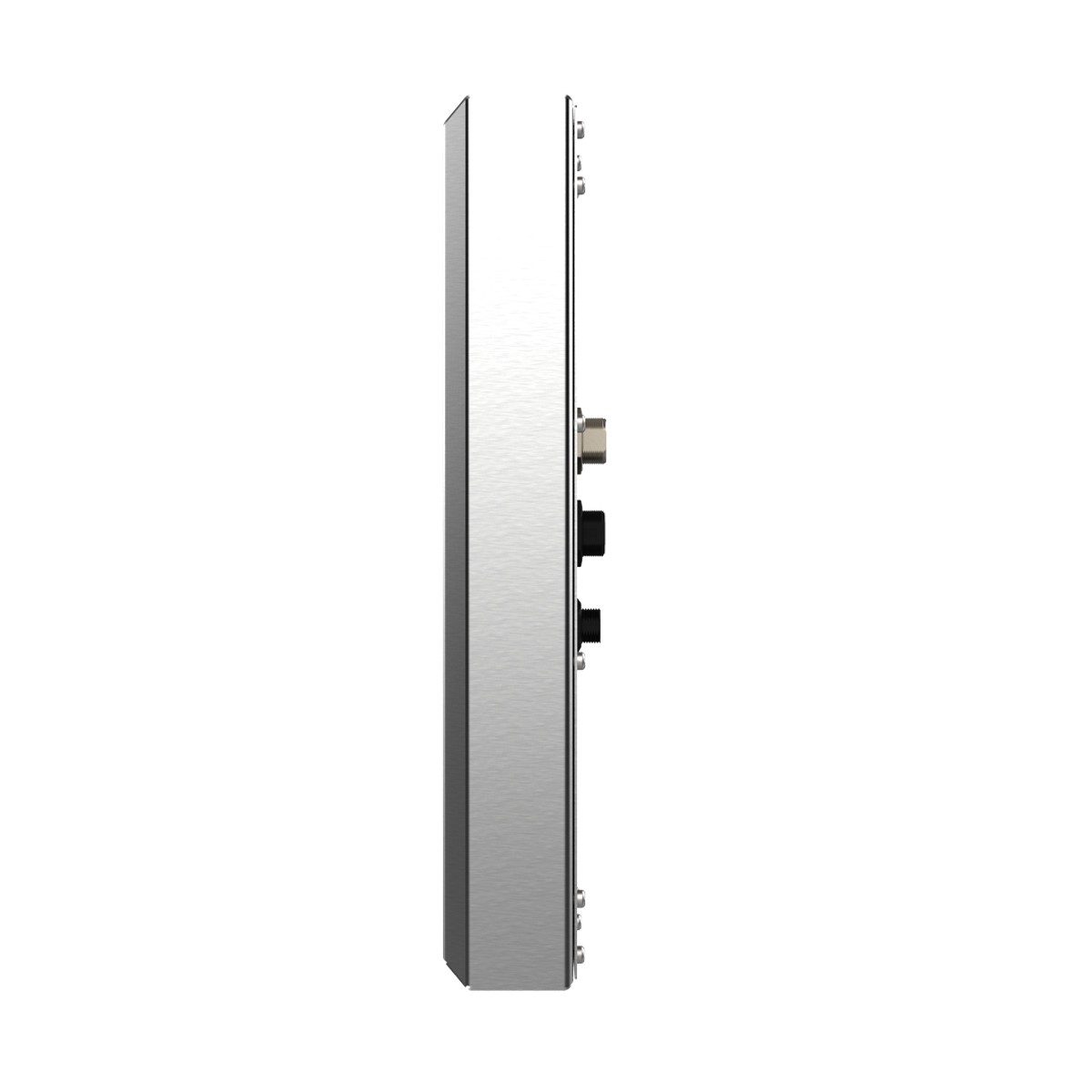

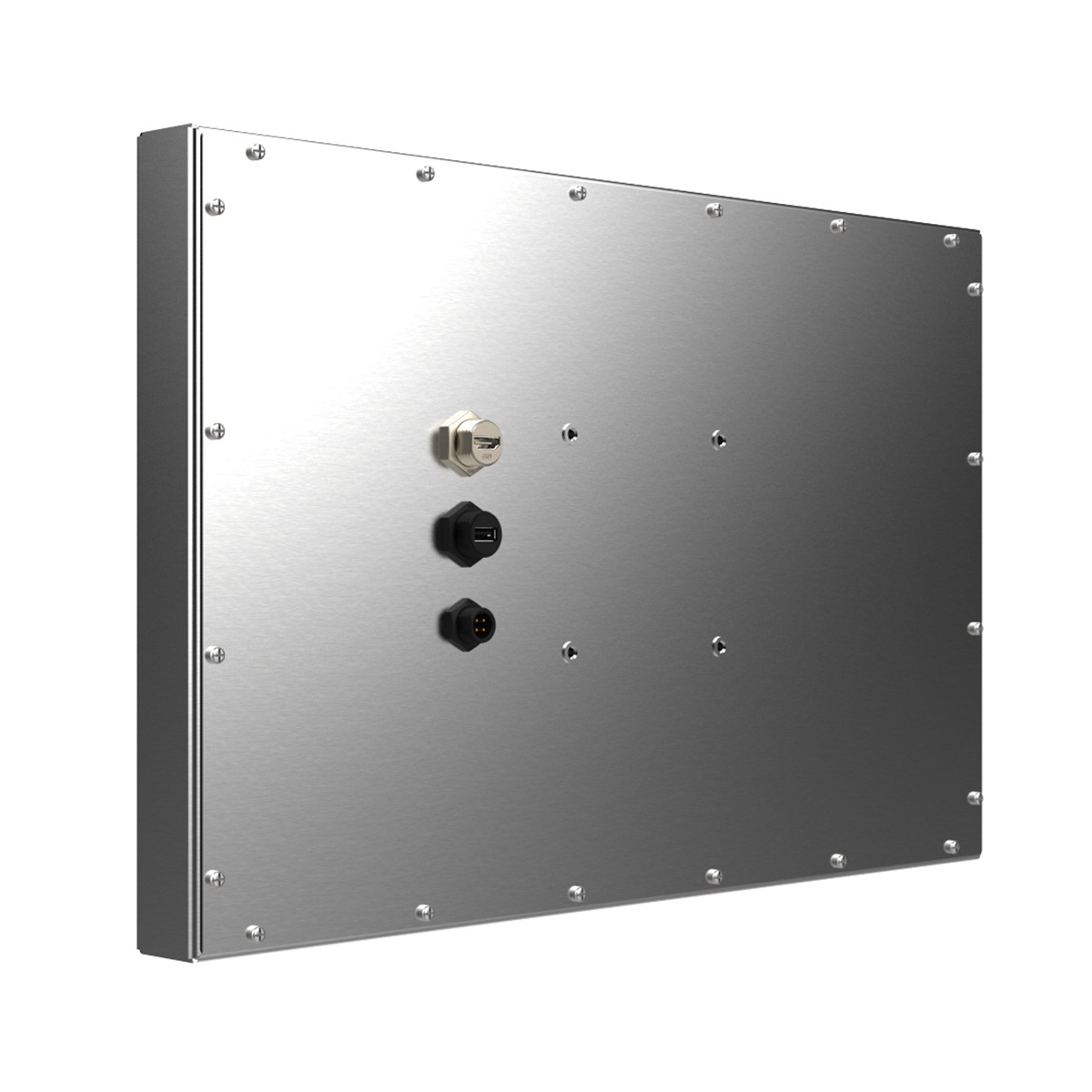

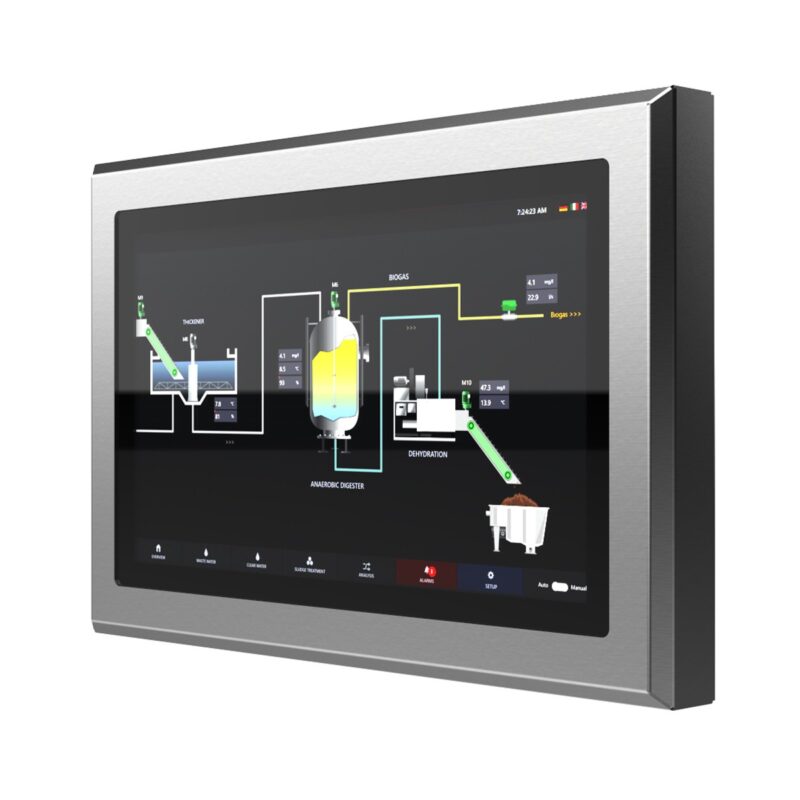

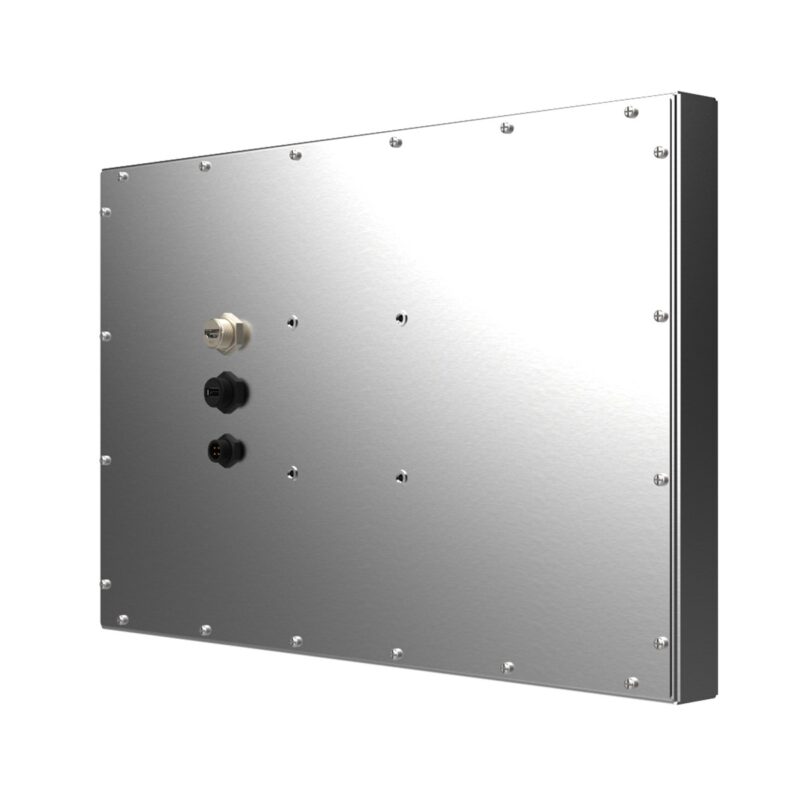

AINOX-240X
24” Industrial AINOX Monitor (16:9)
Resolution: FullHD (1920×1080)
Touch or w/o -Touch version with USB driver interface connection
9 ~ 24V, VDC
VESA 100×100 + CUSTOM
INDATECH Industrial AINOX Monitor
Specifiche tecniche
| DISPLAY | |
| Size: | 24” |
| Resolution: | FullHD (1920×1080) |
| Aspect Ratio: | 16:9 |
| Backlight: | Led |
| Bright and Contrast: | 350 cd/mq 1000:1 |
| Colors: | 16 M |
| View Angle: | 178° – 178° |
| TOUCH SCREEN | (Only with Touch Version) |
| Glass Thickness: | 3 mm |
| Technology: | Projective Capacitive Multitouch – 10 points |
| Connection Type: | USB |
| I/O INTERFACE | |
| Video Input: | 1x HDMI |
| USB ports: | 1x USB for Touch Driver (Only with Touch Version) |
| POWER | |
| Power in: | 9 ~ 24V, DC Version |
| Max Power: | 60W max |
| MECHANICAL | |
| Material: | AISI 316 Stainless Steel |
| IP Protection: | IP66 |
| Dimensions: | (W)643x(D)412x(H)52mm |
| Weight: | 14 Kg |
| Mounting: | VESA 100×100 + CUSTOM |
| ENVIRONMENT | |
| Operating temp.: | -10°C to 50°C |
| Humidity: | 100% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, LVD |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| AINOX-240X | |||
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| AINOX-240X | v1.0 | 2021-12-10 | 5.99 MB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| AINOX-240X manual | v1.28 | 2021-12-10 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| AINOX-240X HIG | v1.28 | 2021-12-10 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| AINOX-240X drivers | v1.0 | 2021-12-10 | 4.3 GB | |
