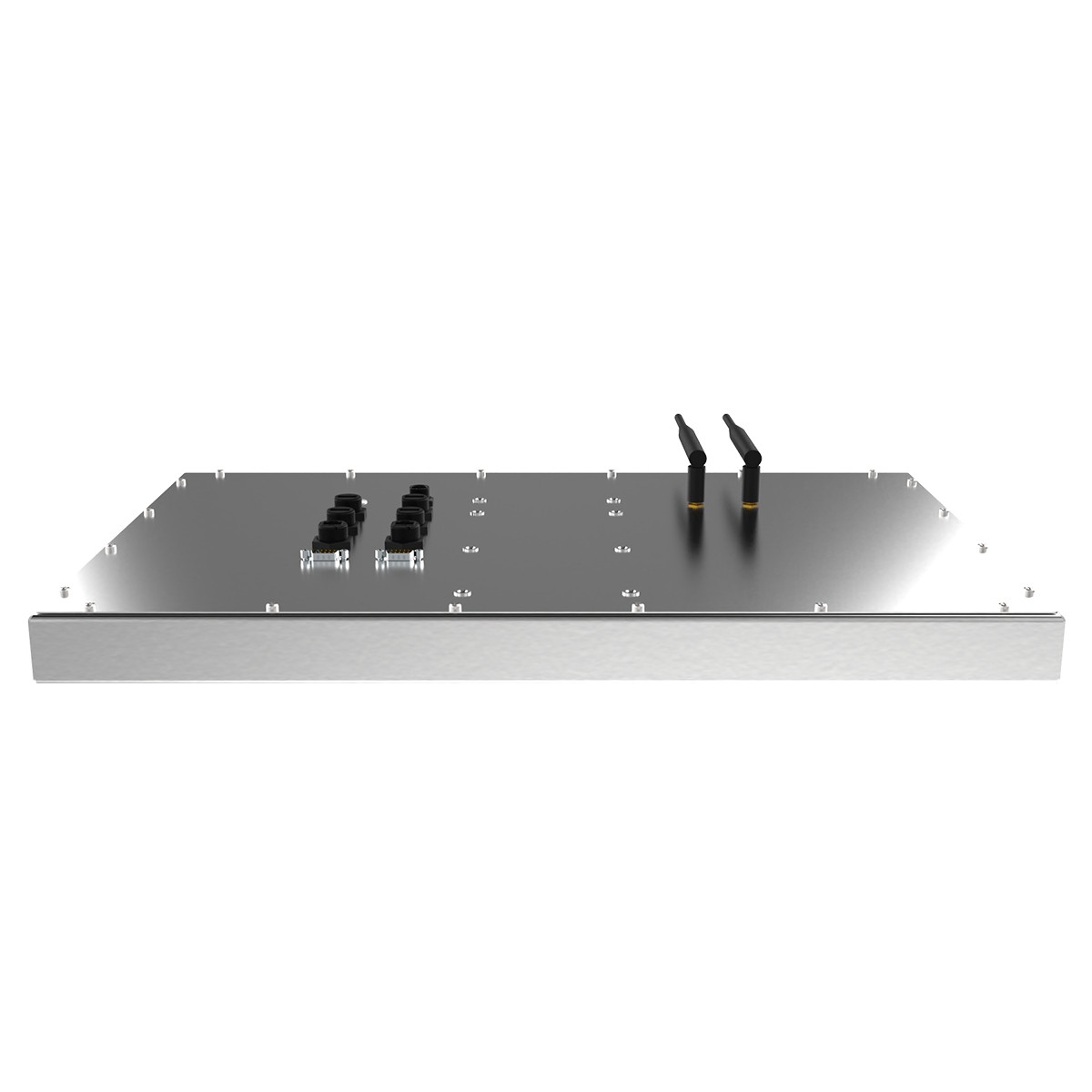

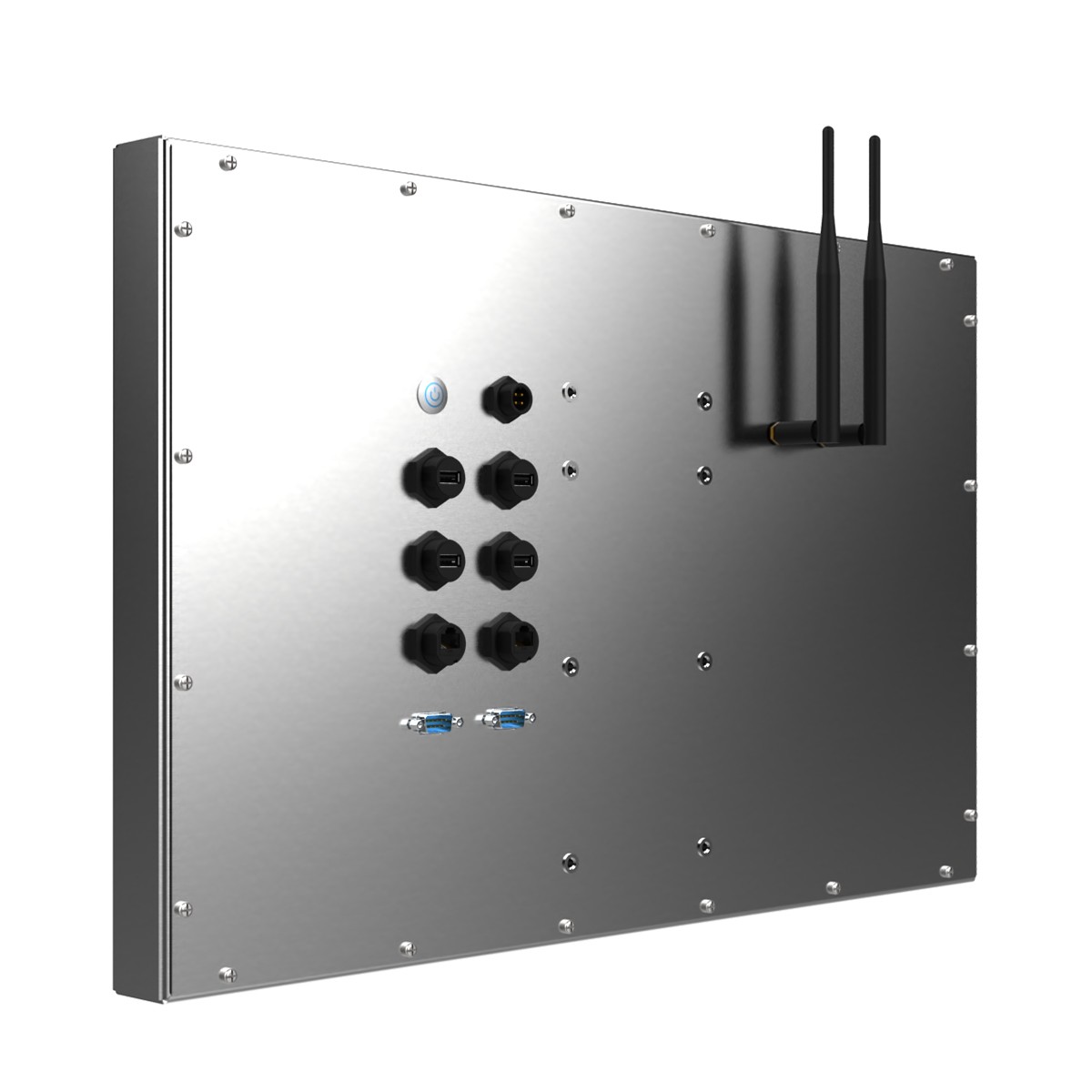

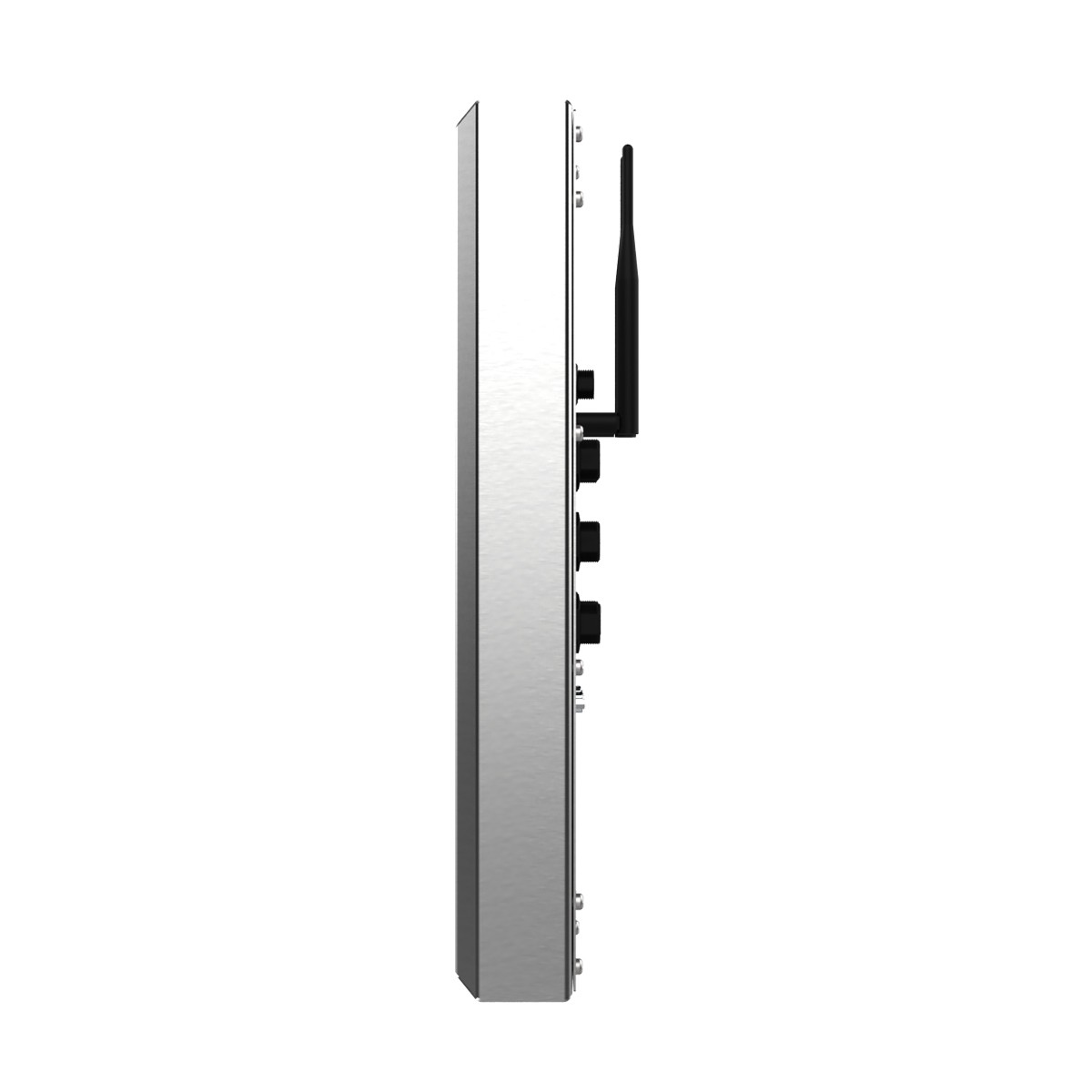

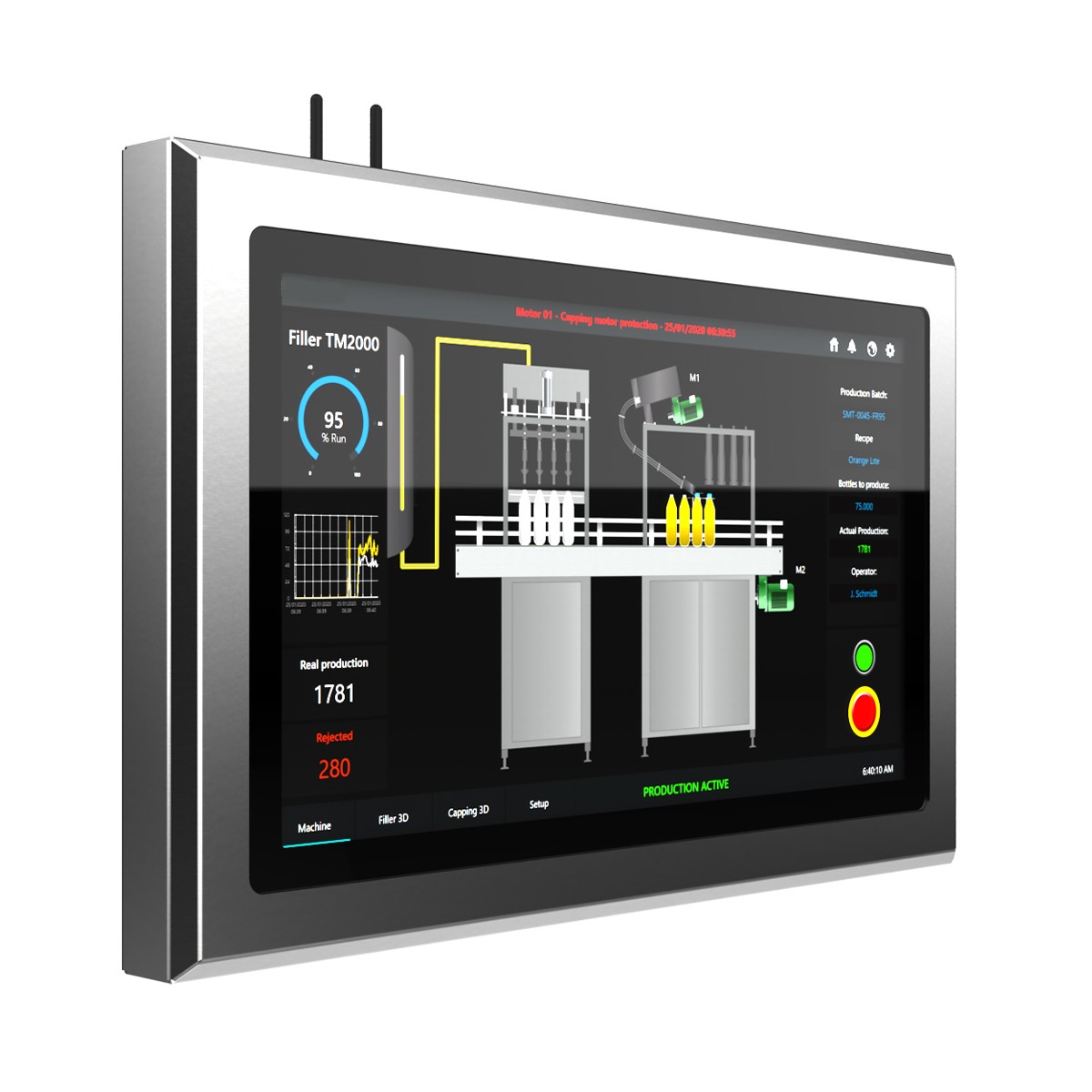

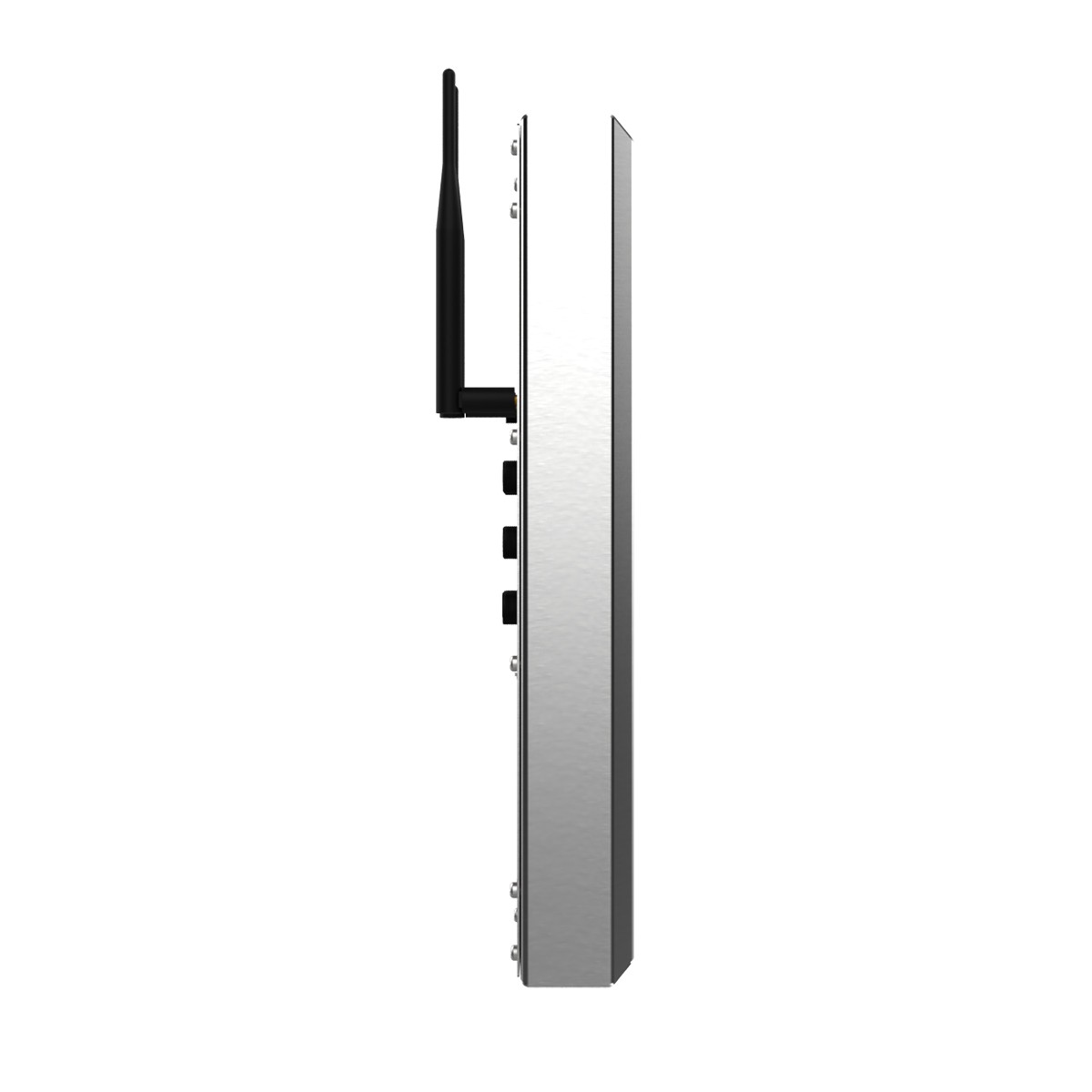

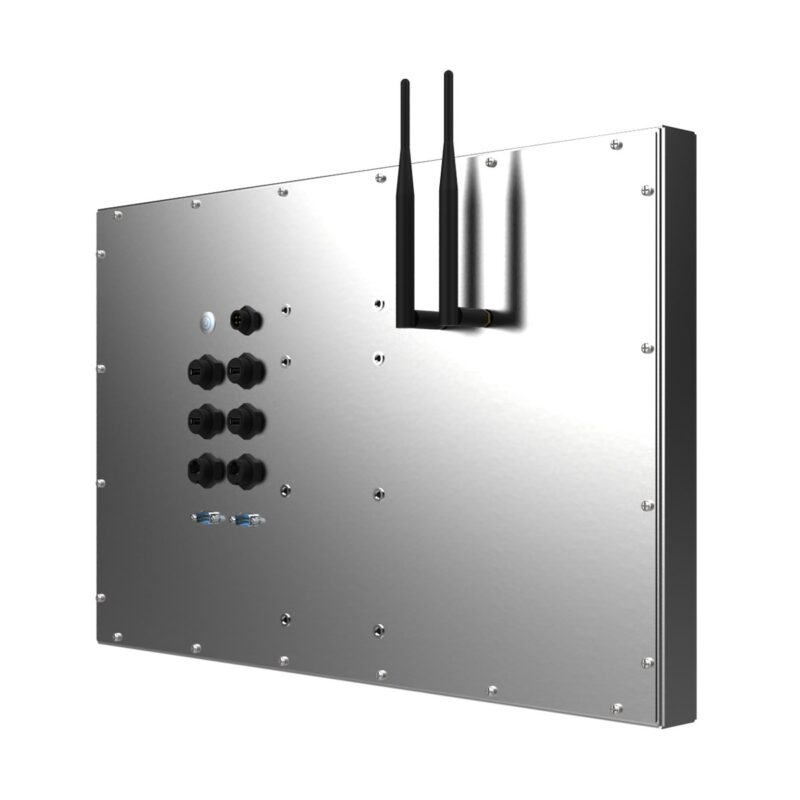

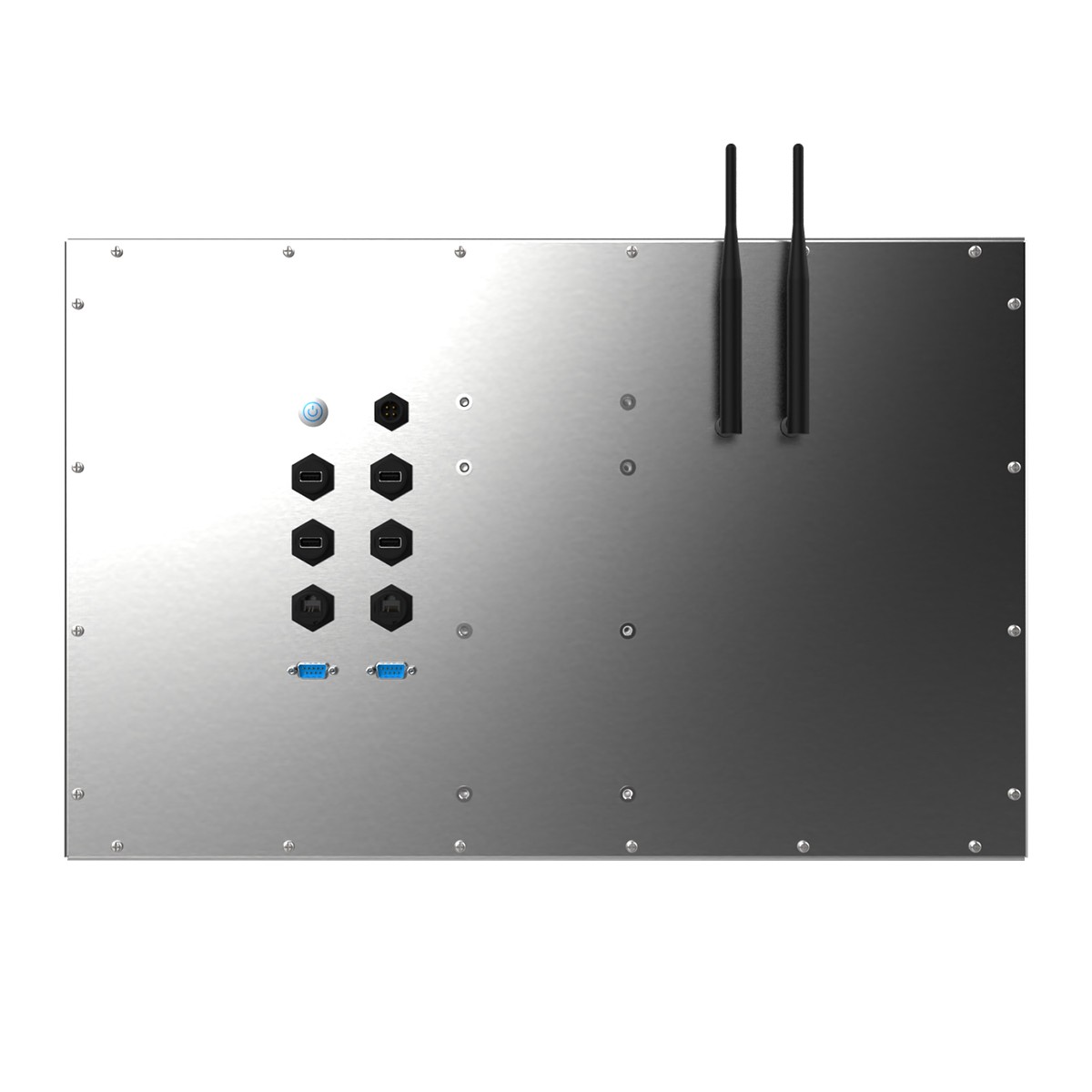

AINOX P215 – i5 8265UE
21.5” Industrial AINOX PC (16:9)
Intel® Core i5 8265UE
Up to 32 GB RAM
FullHD + 10 point multi touch screen
Extended power supply range from 9V to 24V
2x LAN Intel® Gigabit Ethernet
High quality AISI 316 Stainless Steel
Full-IP66 & Fanless cooling
VESA 100 + CUSTOM
INDATECH Industrial AINOX PC
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Core i5 8265UE
4 Core / 8 Thread 1.6 GHz (Base) / 4.1GHz (Turbo) 15 W |
| MEMORY | |
| Capacity: | up to 32 GB |
| Frequency: | 2666 MHz |
| Type | 1x SO-DIMM DDR4 |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2 | 1x M.2 M-Key (2242/2260/2280)
Support PCIe x4 (NVMe) & SATA |
| Storage Bay: | 1x Internal 2.5″ SSD Bay (optional) |
| I/O INTERFACE | |
| Serial ports: | 1x COM RS232/422/485
1x COM RS232 |
| USB ports: | 4x USB 2.0, |
| M.2: | 1x M.2 E-Key (2230)
CNVi WIFI module (optional) |
| ETHERNET | |
| LAN: | 1x Intel® i219LM PHY Gigabit LAN (iANT 11.0)
1x Intel® i211AT Gigabit LAN |
| TOUCH SCREEN | |
| Glass Thickness: | 3 mm |
| Technology: | Projective Capacitive Multitouch |
| DISPLAY | |
| Size: | 21.5″ |
| Resolution: | FullHD (1920×1080) |
| Aspect Ratio: | 16:9 |
| Backlight: | Led |
| Bright and Contrast: | 250 cd/mq 1000:1 |
| Colors: | 16 M |
| View angle: | 170° – 160° |
| MECHANICAL | |
| Material: | AISI 316 Stainless Steel |
| IP Protection: | Full IP66 |
| Dimensions: | (L)592x(W)383x(H)52mm |
| Weight: | 11 Kg |
| Mounting: | VESA 100 + CUSTOM |
| POWER | |
| Power in: | 9 to 24V, DC-in |
| Max Power: | 60W max |
| ENVIRONMENT | |
| Operating temp.: | -10°C to 50°C |
| Humidity: | 100% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence, FreeNAS 11.2 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| AINOX P215 – i5 8265UE | 10005376 | B04-23C-BACH-I58365U-R08-M2D256 | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
