BACH i5 8365UE
Intel® Core i5 8365UE 4-core 8-Thread 1.6 GHz (Base) / 4.1 GHz (Turbo), 15W
2x DDR4 2400 MHz up to 32 GB RAM
9-24V, DC-in w/ 220VAC Power Adapter
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI – DP)

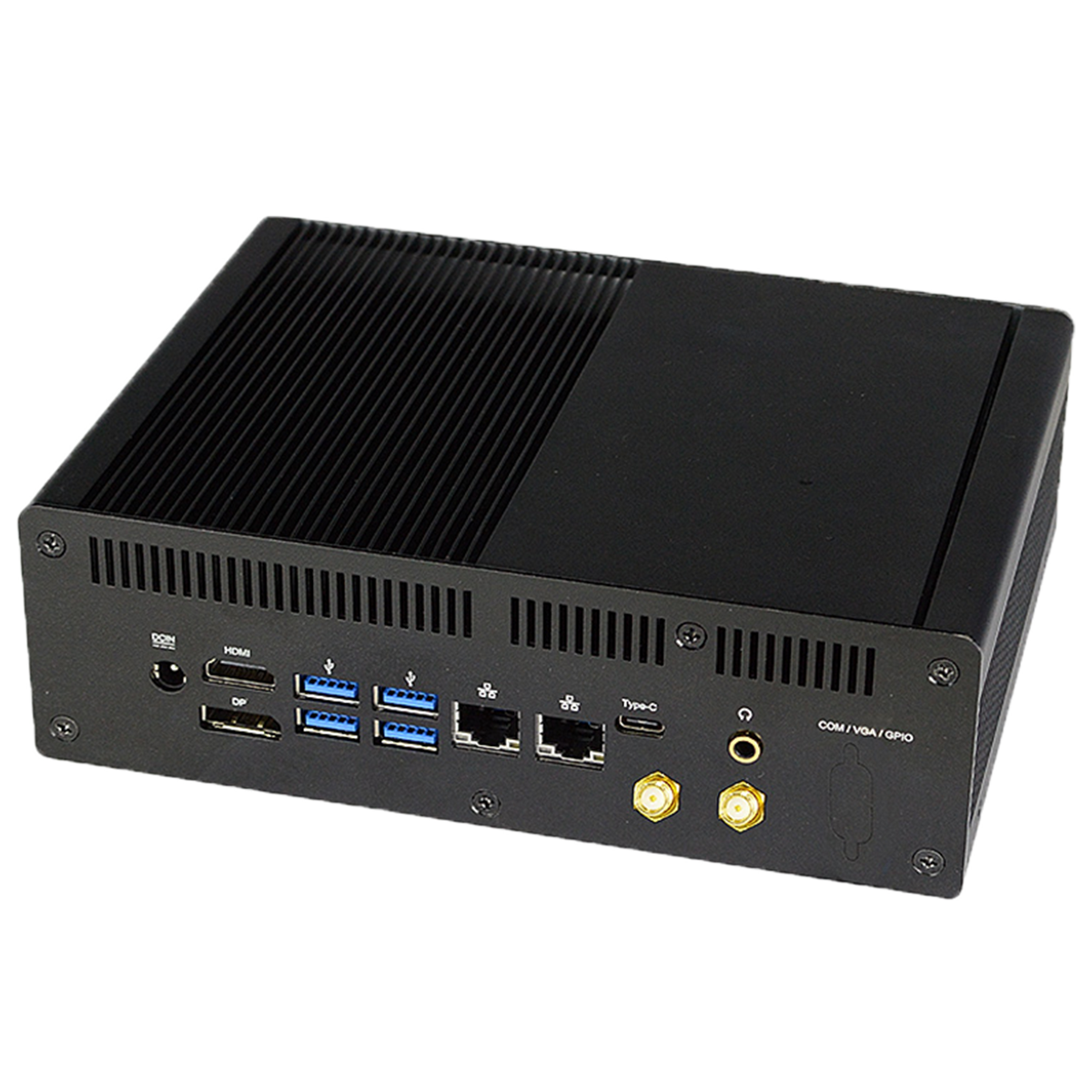

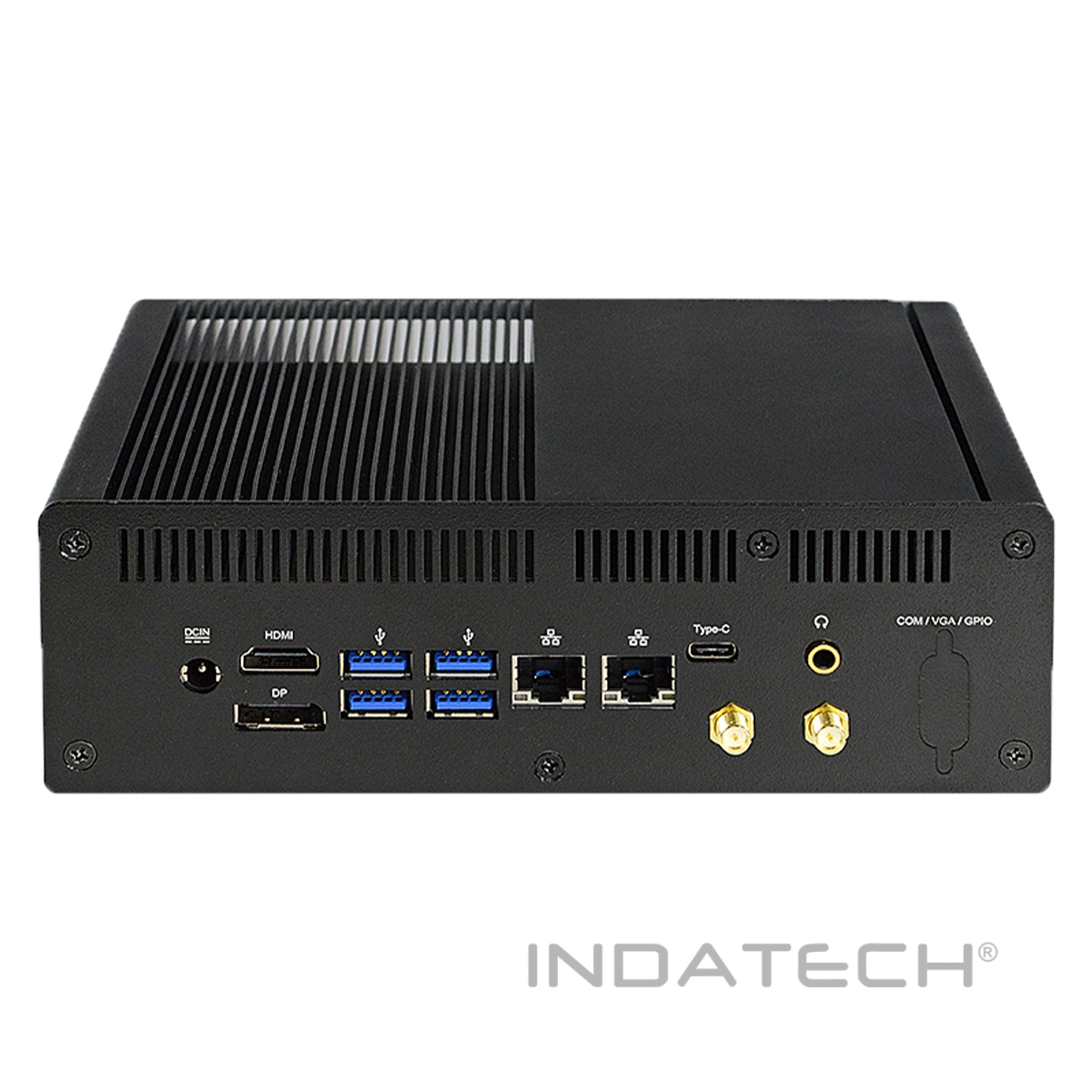

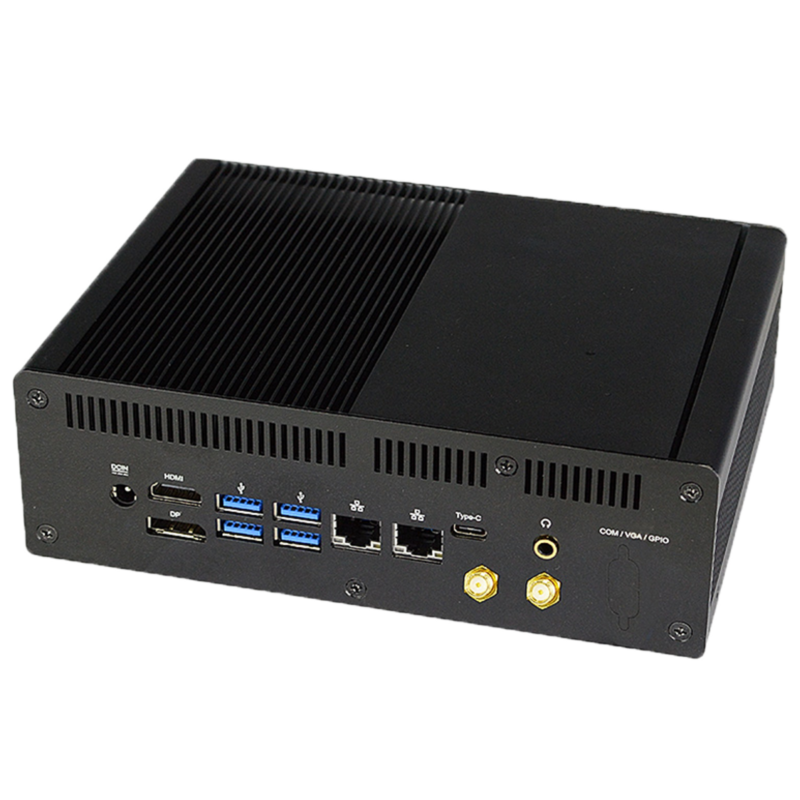

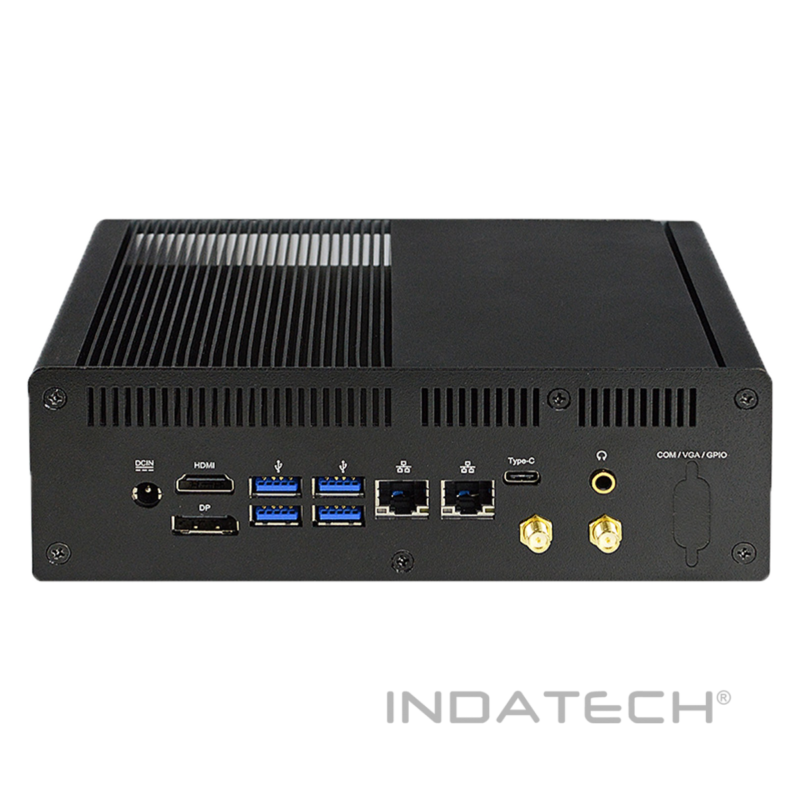

INDATECH Industrial PC BACH i5 8365UE
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Core i5 8365UE
4 Core / 8 Thread 1.6 GHz (Base) / 4.1GHz (Turbo) 15W |
| MEMORY | |
| Capacity: | up to 32GB |
| Frequency: | 2400 MHz |
| Type: | 2x SO-DIMM DDR4 |
| STORAGE | |
| SATA: | 1x SATA3 |
| m.SATA: | 1x M.2 M-Key (2242/2260/2280) Support PCIe x4 (NVMe) & SATA |
| Storage Bay: | 1x Internal 2.5” SSD Bay |

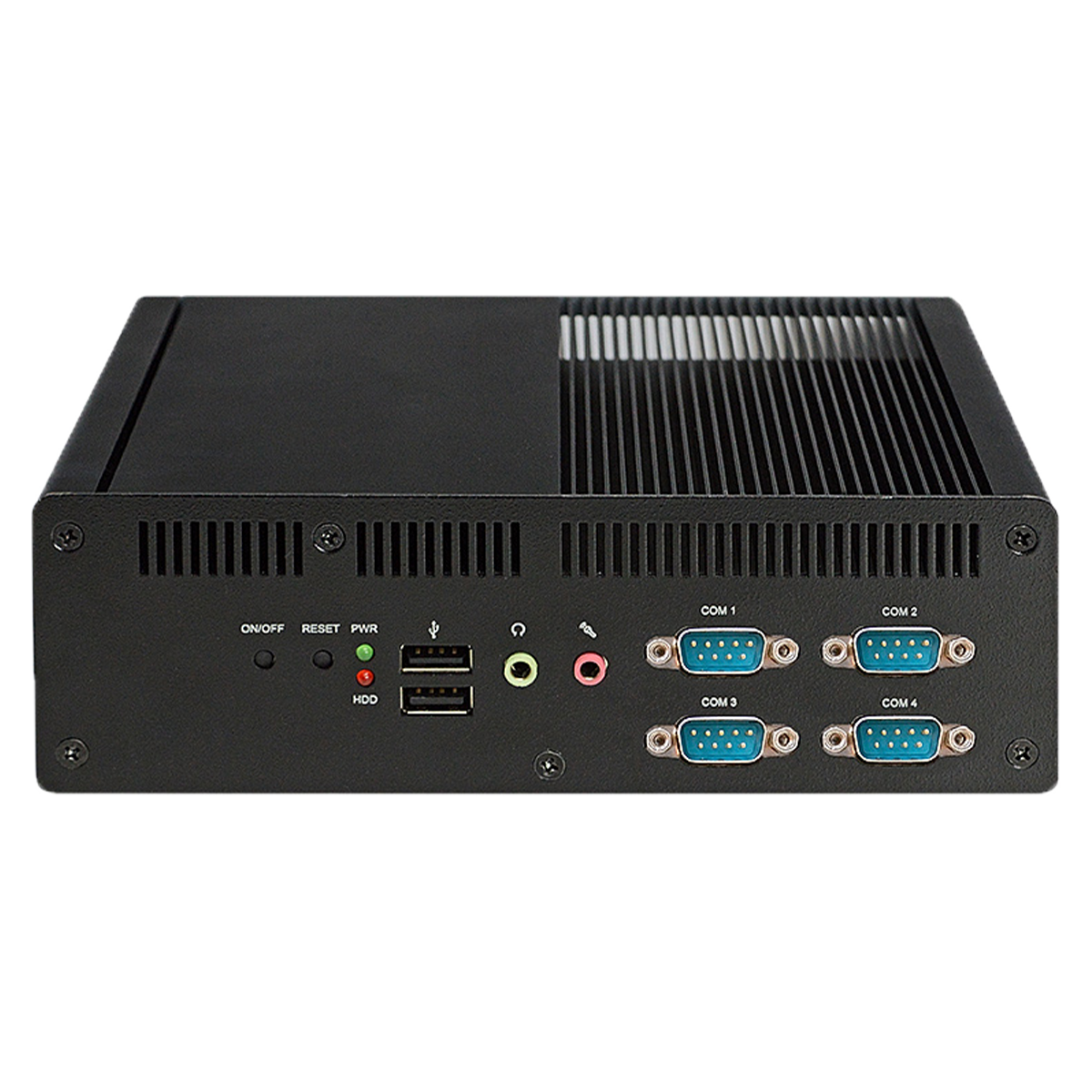

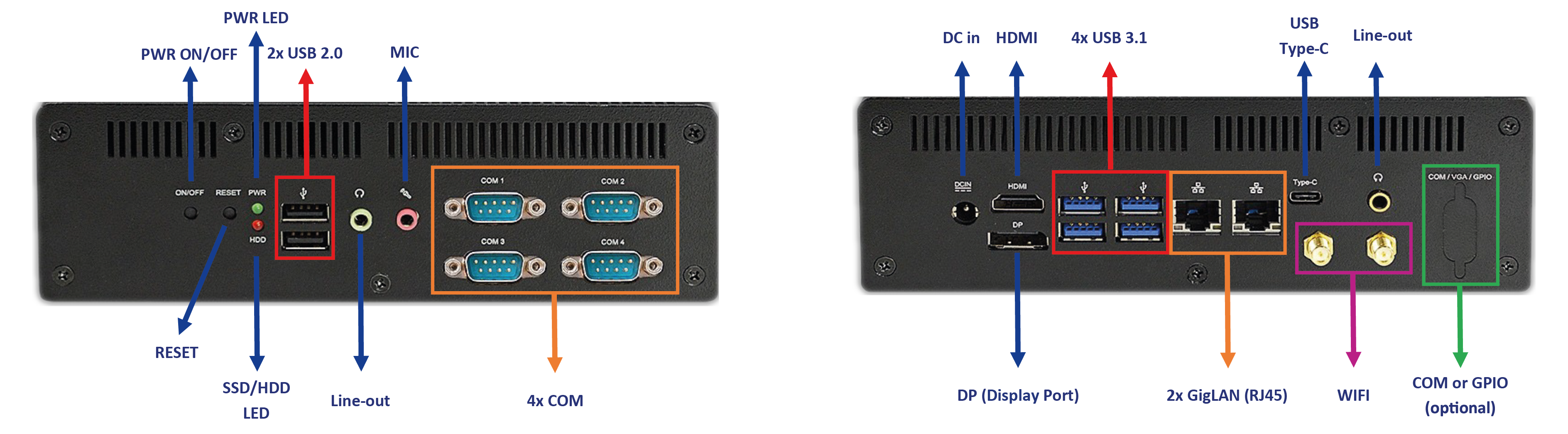

| I/O INTERFACE | |
| Serial ports: | 1x COM RS232/422/485
3x COM RS232 |
| USB ports: | 4x USB 3.1,
2x USB 2.0, 1x USB Type C (3.1 Gen 2) (Only for DATA) |
| M.2: | 1x M.2 E-Key (2230) CNVI WIFI module (Standard) |
| AUDIO: | 1x Headphone Jack,
1x MIC Jack 1x Line-out Jack |
| Optional: | 1x COM or GPIO |
| VIDEO | |
| GPU: | Intel® HD 620 Graphics |
| Interface: | 1x HDMI 1.4 (Up to 4096×2304 @30Hz)
1x DP 1.2 (Up to 4096×2304 @60Hz) |
| ETHERNET | |
| LAN: | 1x Intel® i219LM PHY Gigabit LAN (iAMT 11.0)
1x Intel® i211AT Gigabit LAN |
| POWER | |
| Power in: | 9 to 24V, DC-in |
| Max power: | 60W max |
| Adapter: | AC_90~240V / DC_12V_5A/60W |
| MECHANICAL | |
| Material: | Lightweight aluminum alloy with extruded aluminum IO panel |
| Dimensions: | (W)193x(D)142.4x(H)62mm |
| Weight: | 2.2Kg |
| Mounting: | WallMount + DIN Rail |
| ENVIRONMENT | |
| Operating temp.: | -20°C to 60°C |
| Storage temp.: | -20°C to 70°C |
| Humidity: | 40% to 60% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, LVD |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence, FreeNAS 11.2 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | ||||||
| MODEL NAME | CONFIGURATION CODE | DESCRIPTION | ||||
| BACH i5 8365UE | B04 – 23C – BACH – I5 8365U – R08 – SSD256 | IPC + 8GB RAM + M2 256GB SSD + WIFI6 | ||||
| RAM | R08 | 8GB RAM |
| R16 | 16GB RAM | |
| R32 | 32GB RAM |
| STORAGE | SSDXXX | 128GB to 1TB, 2.5″ type |
| MSDXXX | 64GB to 1TB, mSATA type |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |

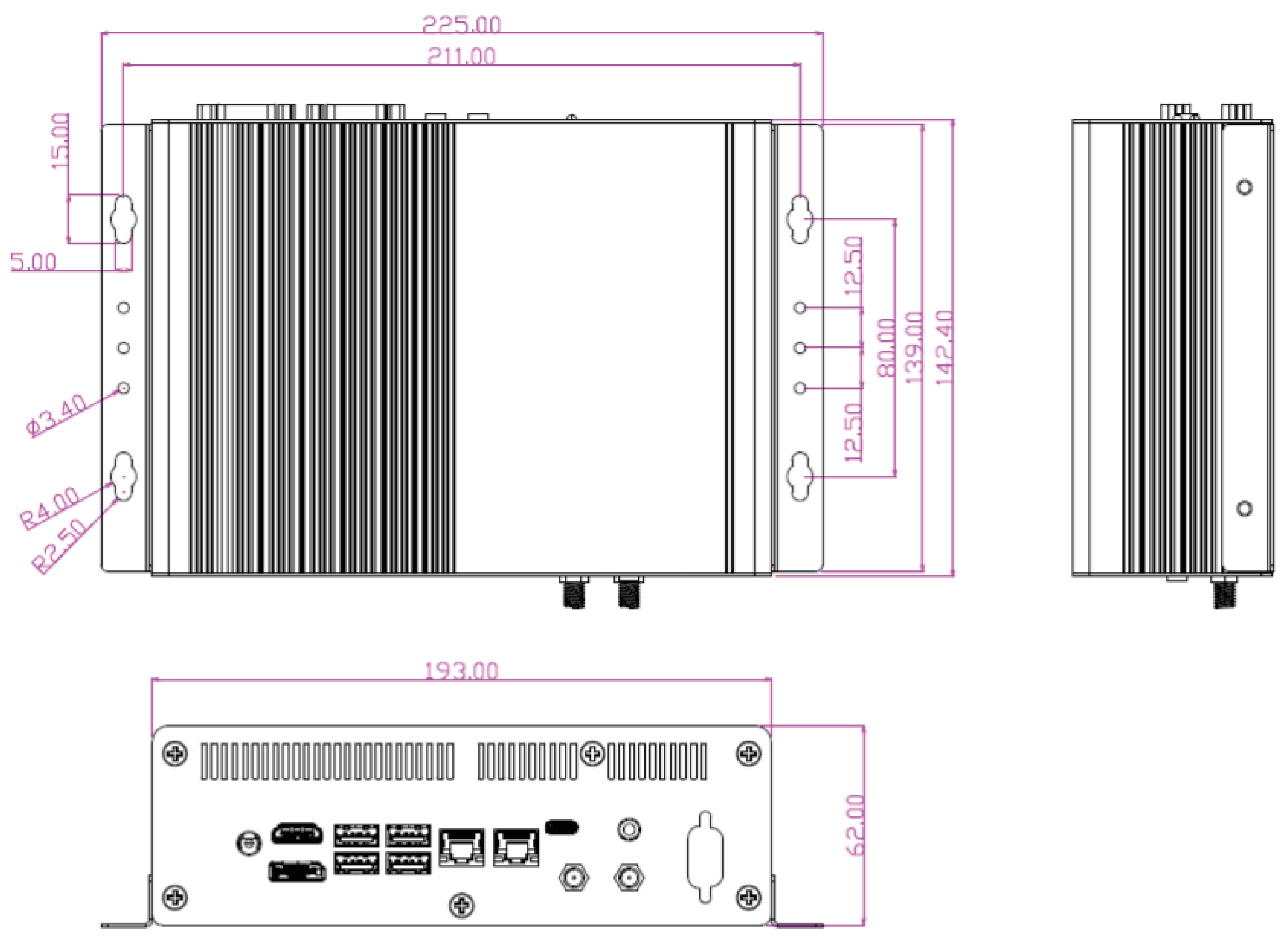

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BACH i5 8365UE | v1.0 | 2023-06-01 | 981 KB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BACH i5 8365UE manual | v1.28 | 2023-06-01 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BACH i5 8365UE HIG | v1.28 | 2023-06-01 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BACH i5 8365UE drivers | v1.0 | 2023-06-01 | 4.3 GB | |
