End of Life
BASIC 4ETH [EOL]
Intel® Celeron N3160 Quad-Core 1.6GHz – 2.24GHz (6W)
1x DDR3L 1600 MHz 8GB RAM
32GB eMMC + M.2 SATA

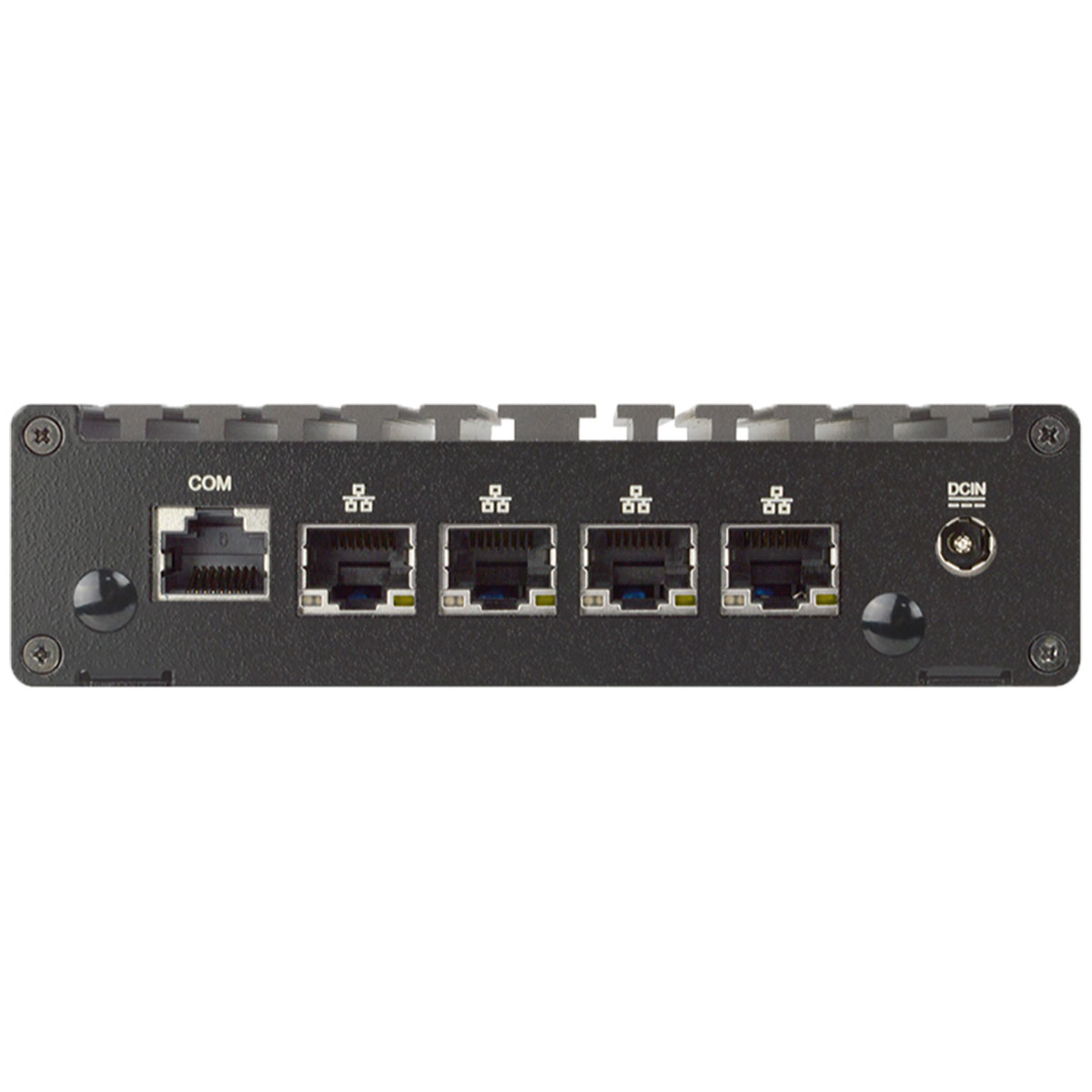

4x Gigabit Ethernet LAN
WIFI (Optional) or 4G/LTE (on request)

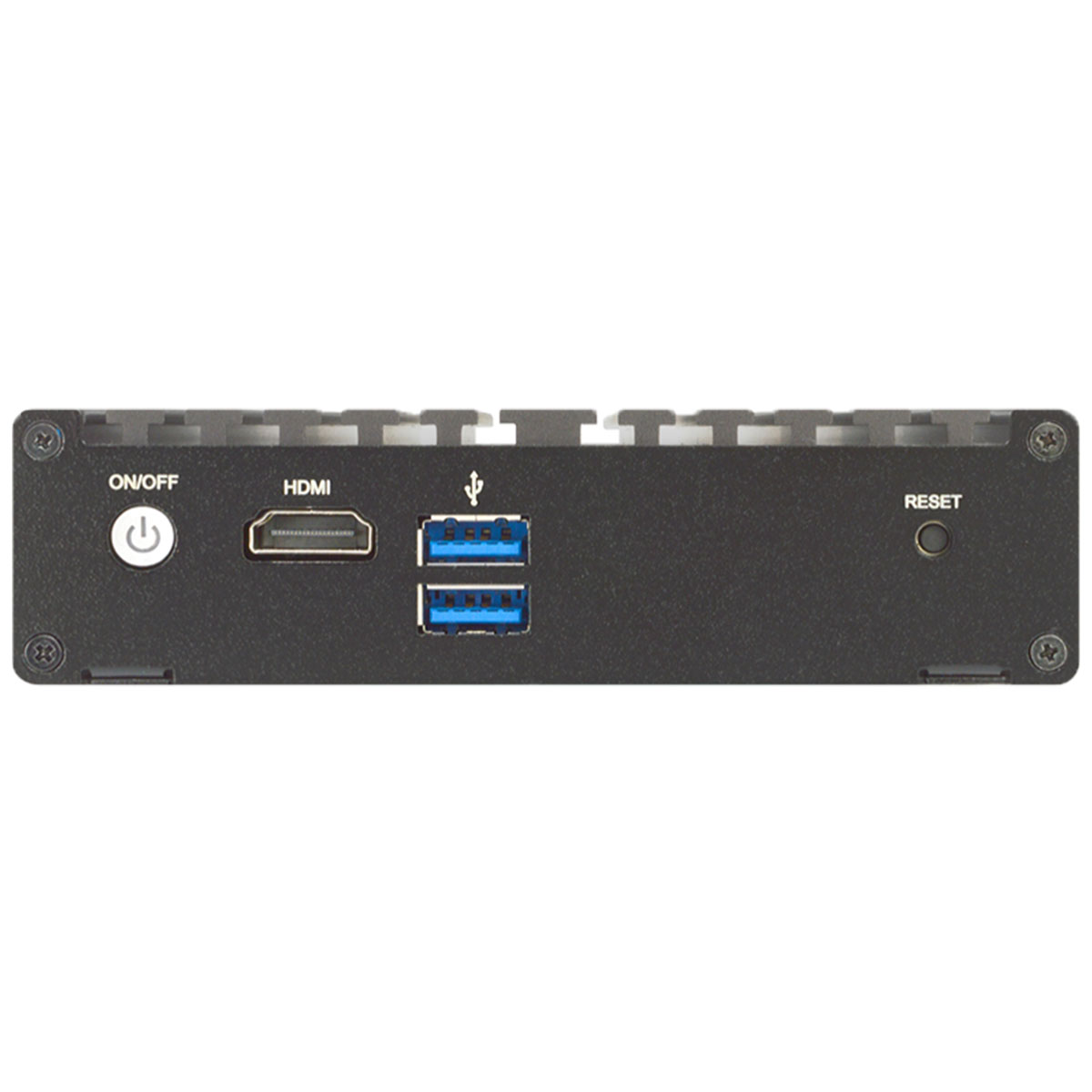

1x 4K Video interface (HDMI)
— END OF LIFE —
INDATECH Industrial PC Basic N3160 4eth
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Celeron N3160
Quad-Core 1.6GHz-2.24GHz (6W) |
| MEMORY | |
| Capacity: | 8GB |
| Frequency: | 1600 MHz |
| Type: | 1×204-pin SODIMM DDR3L |
| STORAGE | |
| eMMC: | 1x 32GB eMMC |
| M.2: | 1x M.2 SATA (2242) |

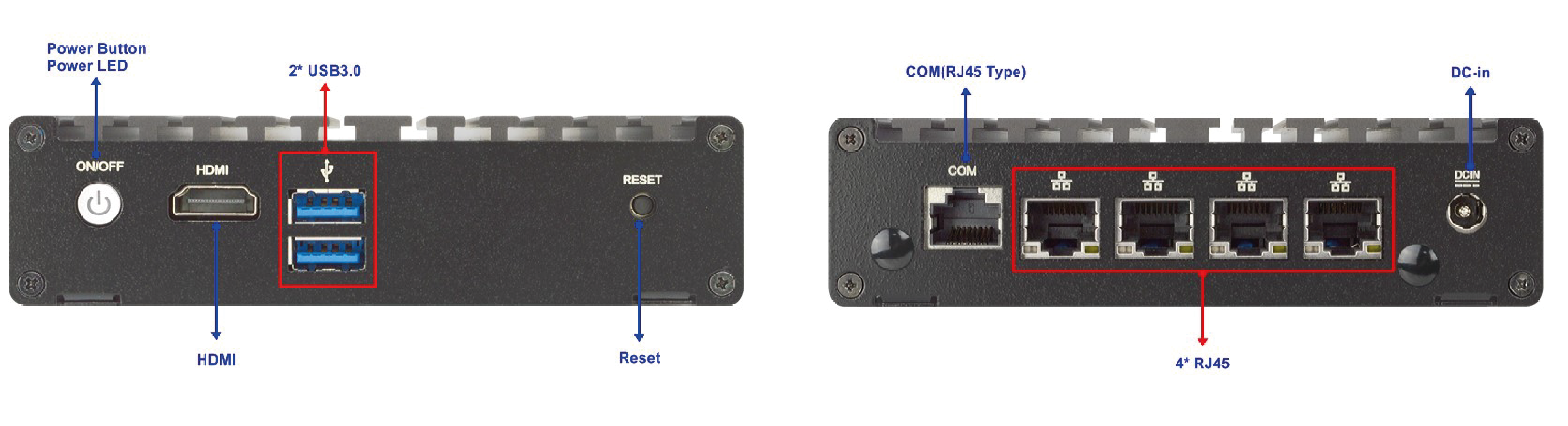

| I/O INTERFACE | |
| USB ports: | 2x USB 3.0 |
| Mini-PCle: | 1x Mini-PCle (Full-size) for WIFI module (optional) or 4G/LTE (on request) |
| SIM: | 1x SIM Card Socket |
| VIDEO | |
| GPU: | Intel® HD 400 Graphics |
| Interface: | 1x HDMI 1.4 (Up to 4096×2304 @60Hz) |
| ETHERNET | |
| LAN: | 4x Intel® I211-AT PCI-E Gigabit LAN |
| POWER | |
| Power in: | 12V, DC-in |
| Max Power: | 17W max |
| Adapter: | AC90~240V to DC12V 3.3A /40W |
| MECHANICAL | |
| Material: | Lightweight aluminum alloy with extruded aluminum IO panel |
| Dimensions: | (W)129x(D)109.4x(H)34mm |
| Weight: | 0.6Kg |
| Mounting: | WallMount + VESA + DIN Rail |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 50°C |
| Storage temp.: | -20°C to 80°C |
| Humidity: | 90% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, LVD, ErP ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| BASIC N3160 4ETH | 10005376 | B04-XXC-BASIC 4ETH-N3160–R08–SSDXXX | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
| STORAGE | SSD (2,5″) | M2D/SSD128 |
| MSD (mSATA) | M2D/SSD256 | |
| M2D (M.2) | Other on Request |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BASIC 4ETH | v1.0 | 2023-06-01 | 1.04 MB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BASIC 4ETH manual | v1.0 | 2023-06-01 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BASIC 4ETH HIG | v1.0 | 2023-06-01 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BASIC 4ETH drivers | v1.0 | 2023-06-01 | 4.3 GB | |
