BASIC2.0 4ETH J6412
Intel® Elkhart Lake SoC Processor (J6412)
1x DDR4 3200 MHz up to 32GB RAM
32/64GB eMMC + M.2 M-Key NVMe
4x 2.5 Gigabit Ethernet LAN
WIFI (Optional) or 4G/5G (on request)
1x 4K Video interface (HDMI)
12V, DC-in w/ 220VAC Power Adapter

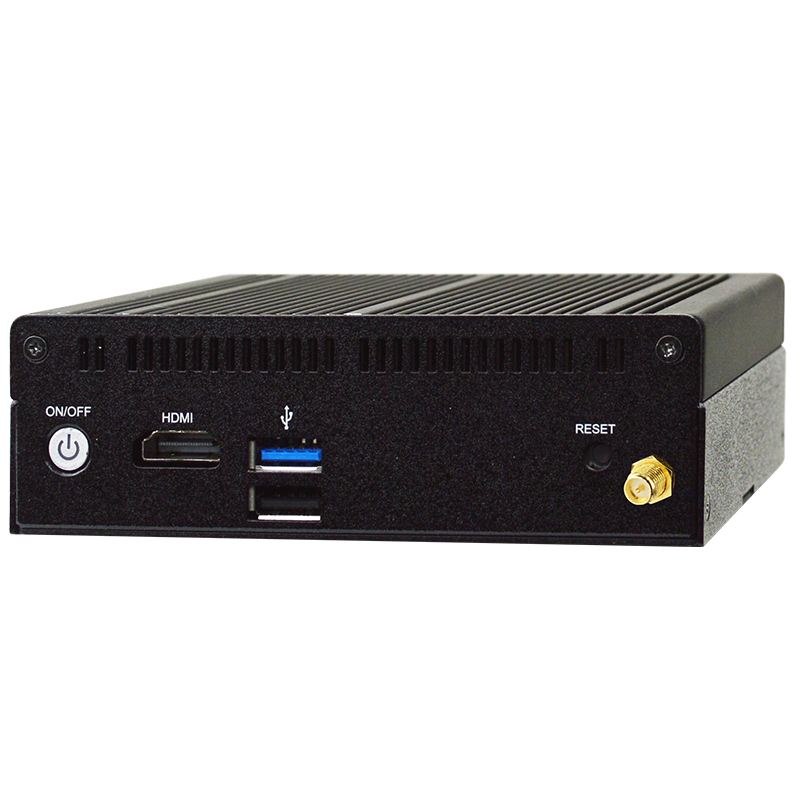

INDATECH Industrial IPC BASIC2.0 4ETH J6412
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Celeron J6412
4 Core / 4 Thread 2.0 GHz (Base) / 2.6 GHz (Turbo) 10W |
| MEMORY | |
| Capacity: | up to 32GB |
| Frequency: | 3200 MHz |
| Type: | 1x SO-DIMM DDR4 |
| STORAGE | |
| eMMC: | 1x 32/64GB eMMC |
| M.2: | 1x M.2 M-Key (2242, NVMe) Co-layout with M.2 B-Key |
| I/O INTERFACE | |
| USB ports: | 1x USB 3.1 + 1x USB 2.0 |
| M.2: | 1x M.2 E-Key Slot (2230, WIFI) (optional)
1x M.2 B-Key Slot (3052, 4G/5G)(on request) |
| SIM: | 1x SIM Slot |
| VIDEO | |
| GPU: | Intel® UHD Graphics |
| Interface: | 1x HDMI 2.0 (Up to 4096×2160 @60Hz) |
| ETHERNET | |
| LAN: | 4x Intel i225-V 2.5 Gigabit LAN |
| POWER | |
| Power in: | 12V, DC-in |
| Max Power: | 60W max |
| Adapter: | AC_90~240V / DC_12V_5A/60W |
| MECHANICAL | |
| Material: | High-quality aluminum |
| Dimensions: | (W)160x(D)109.20x(H)42.5mm |
| Weight: | <1.2 Kg |
| Mounting: | WallMount Kit |
| ENVIRONMENT | |
| Operating temp.: | -20°C to +60°C -w/Air Flow |
| Storage temp.: | -40°C to 85°C |
| Humidity: | 10% to 90% RH @40°C, non-condensing |
| EMC: | CE, FCC, RoHS, LVD, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2, WMware ESXI 6.5 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| BASIC2.0 4ETH J6412 | 1000xxxx | xxxx | xxxx |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BASIC2.0 4ETH J6412 | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BASIC2.0 4ETH J6412 | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BASIC2.0 4ETH J6412 HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BASIC2.0 4ETH J6412 drivers | TBD | TBD | TBD | |
