BOLT 6ETH
Intel® Core i5 7300U 2-core 4-Thread
2.6-3.5 GHz Burst, 15W
2x DDR4 2133 MHz up to 32GB RAM
Extended power supply range from 9V to 24V

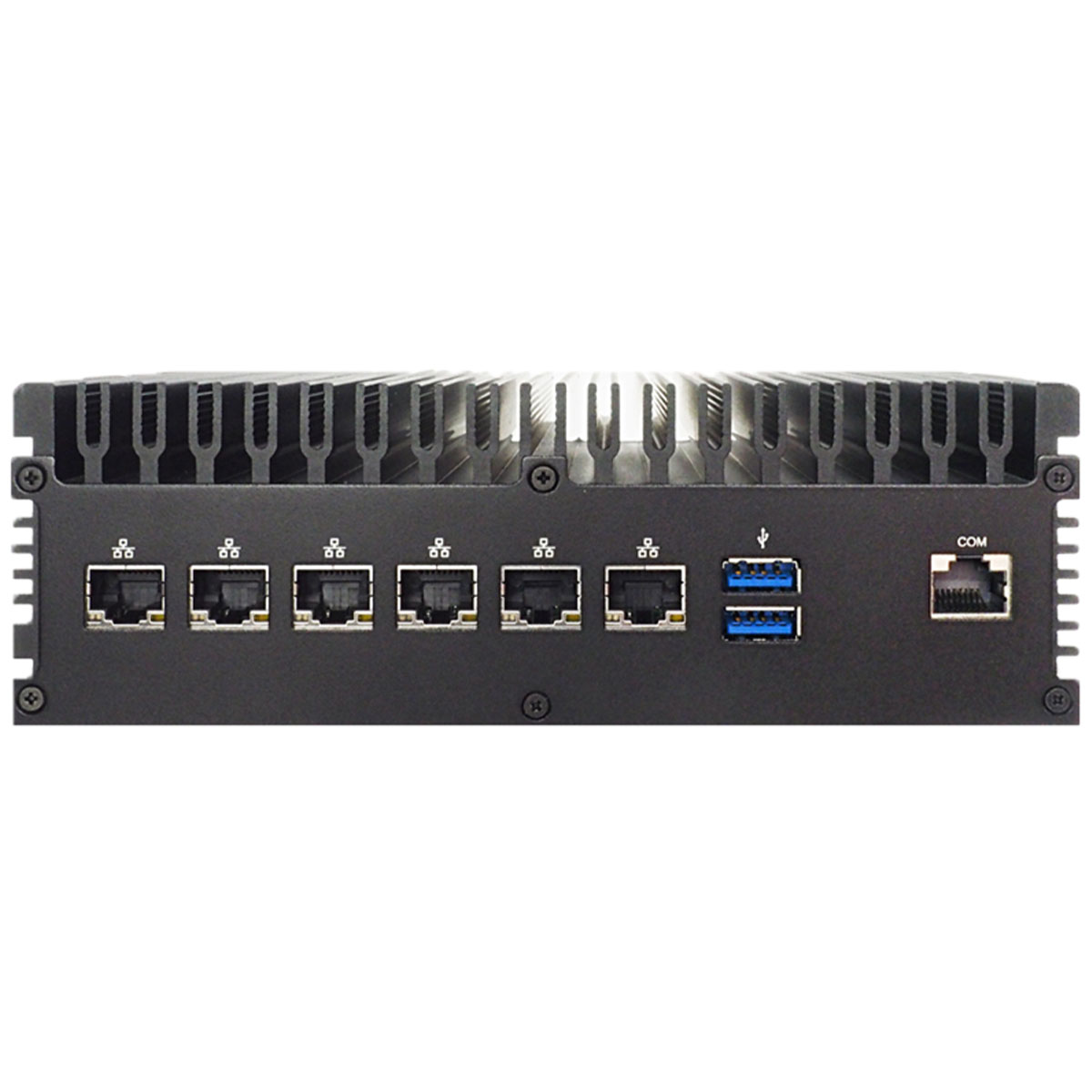

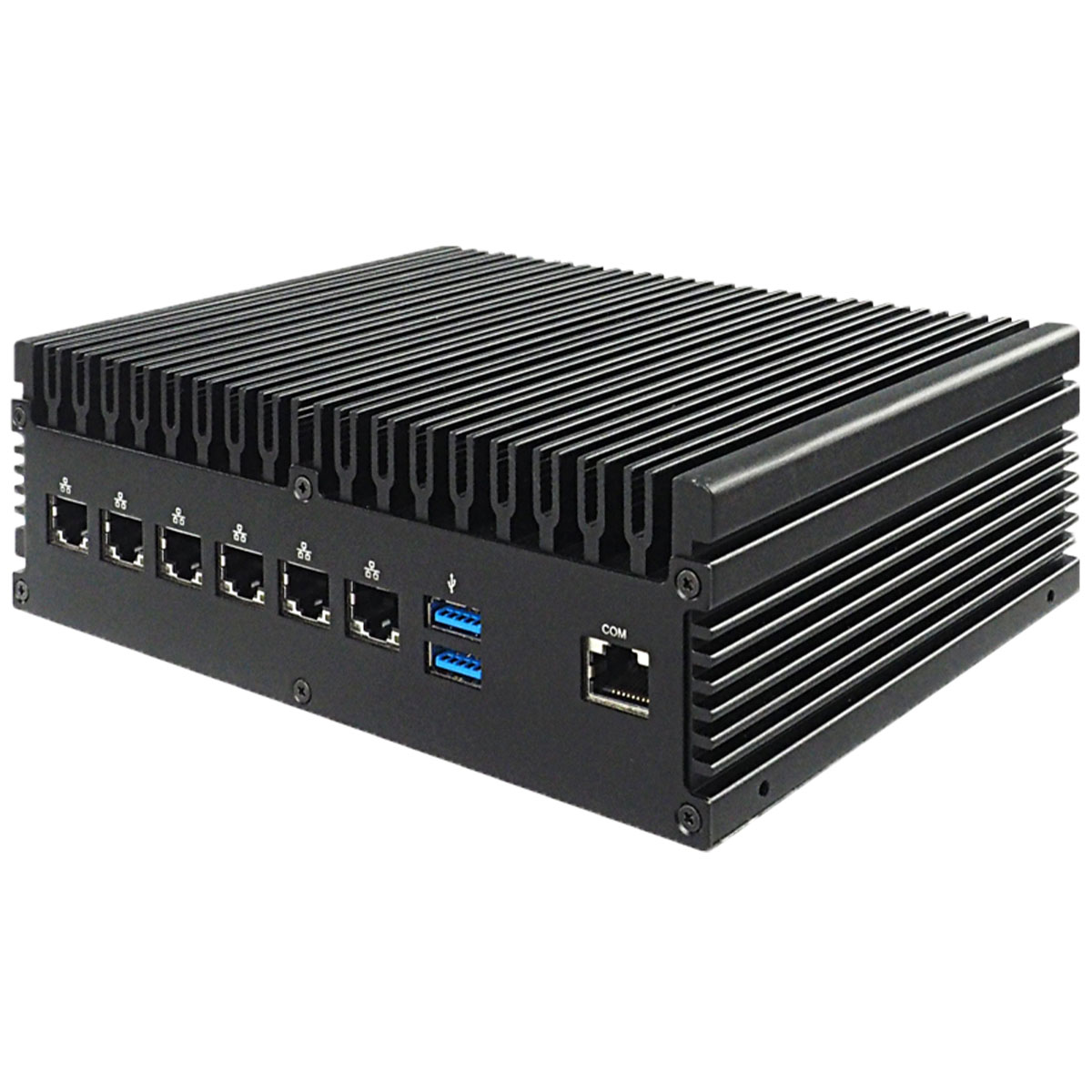

6x LAN Intel® Gigabit Ethernet

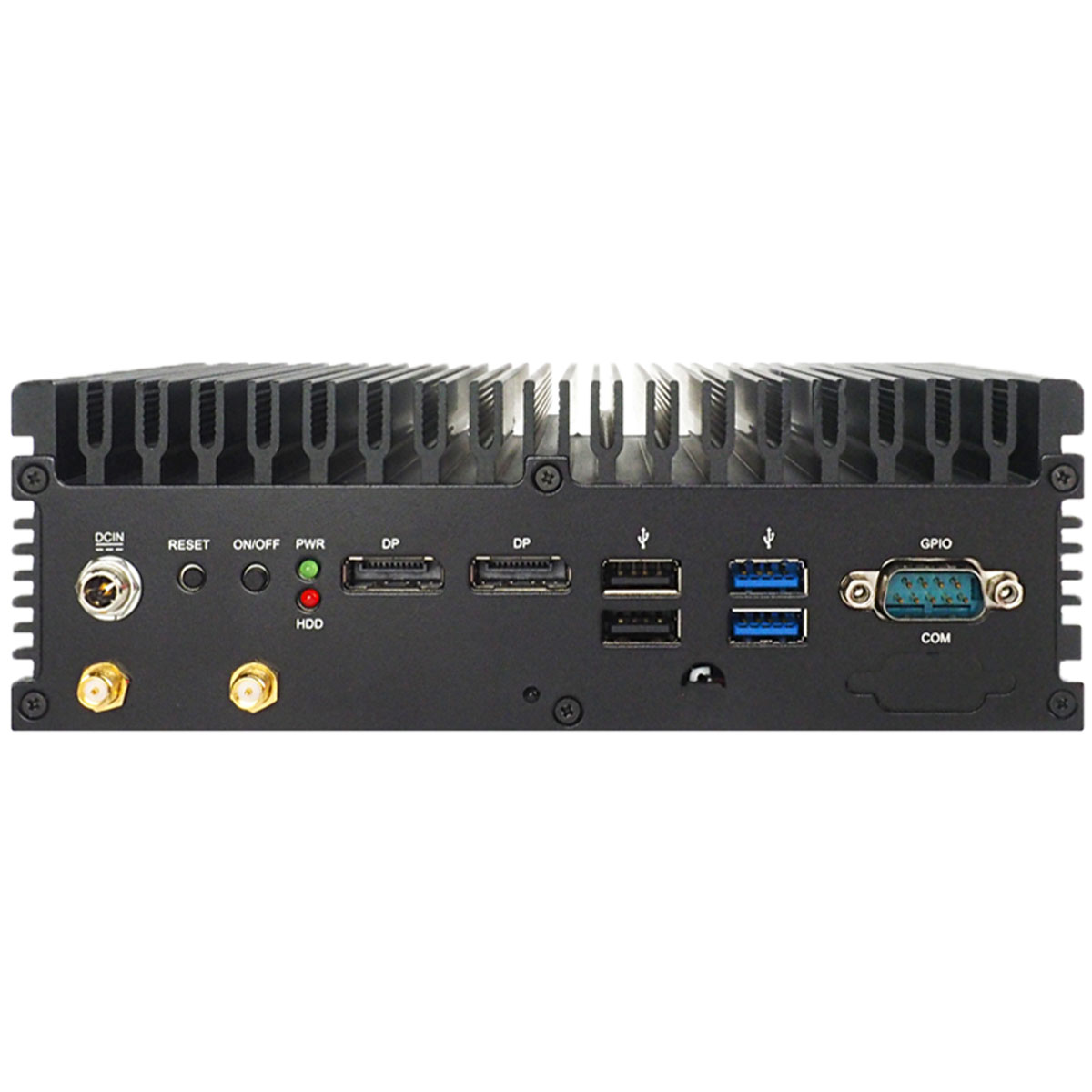

2x 4K Video interface (DP)

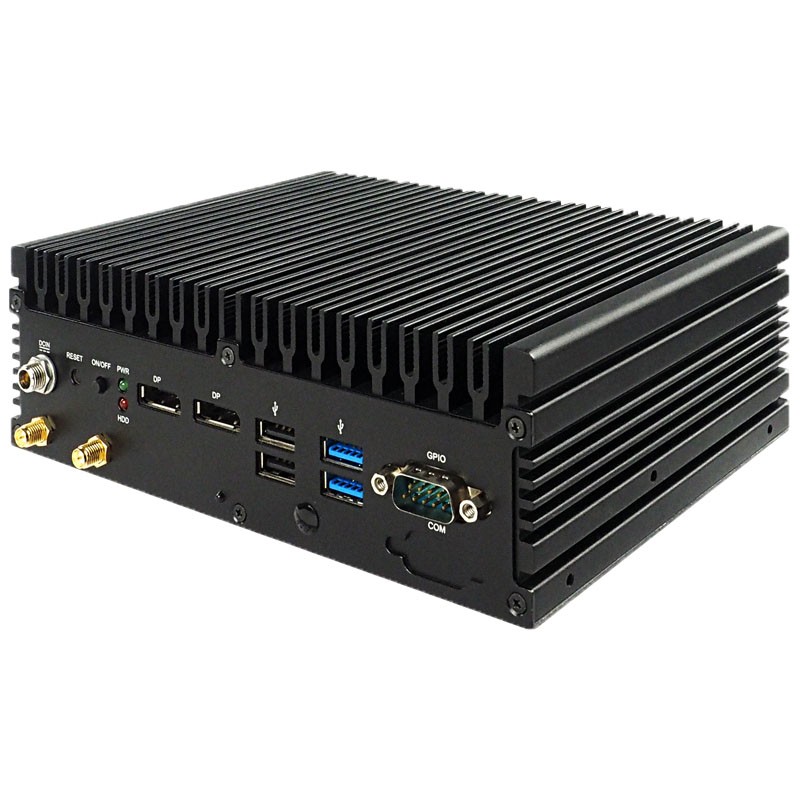

INDATECH Industrial PC Bolt 6ETH
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Core i5 7300U
2 Core / 4 Thread 2.6-3.5 GHz Burst, 15W |
| MEMORY | |
| Capacity: | up to 32GB |
| Frequency: | 2133 MHz |
| Type: | 2x SO-DIMM DDR4-2133 |
| STORAGE | |
| SATA: | 1x SATA3 |
| mSATA: | 1x Shared mSATA/mini-PCIe combo (full size) |
| Storage Bay: | 1x Internal 2.5” SSD Bay |

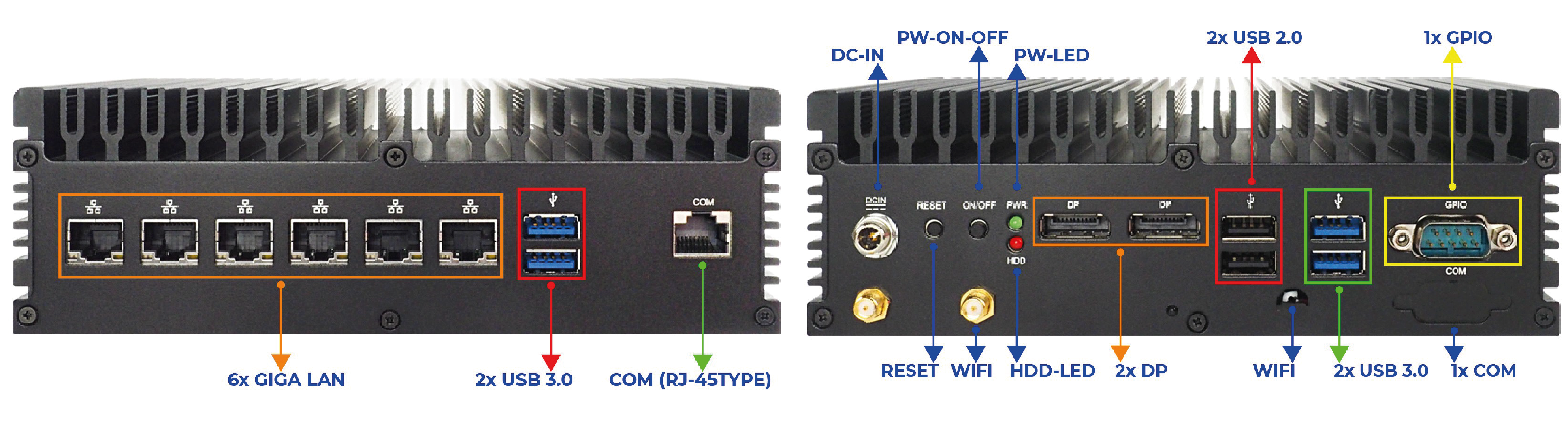

| I/O INTERFACE | |
| Serial ports: | 1x COM RS232/422/485 (Optional)
1x RJ45 COM for console function |
| USB ports: | 4x USB 3.0,
2x USB 2.0 |
| Mini-PCIe: | 1/2x Mini-PCIe (Full size) for WIFI module |
| SIM: | 1x SIM card slot |
| GPIO: | 1x GPIO port |
| VIDEO | |
| GPU: | Intel® HD 620 Graphics |
| Interface: | 2x DP (Up to 4096×2304 @60Hz) |
| ETHERNET | |
| LAN: | 1x Intel® i219LM PHY GbE LAN (iAMT 11.0)
1x Intel® i211AT PCI-E GbE LAN 4x Intel® i350-AM4 PCI-E GbE LAN |
| POWER | |
| Power in: | 9 to 24V, DC-in |
| Max Power: | 60W max |
| Adapter: | AC_90~240V / DC_12V_3A/60W |
| MECHANICAL | |
| Material: | Lightweight aluminum alloy with extruded aluminum IO panel |
| Dimensions: | (L)185x(W)142x(H)60mm |
| Weight: | 2.2Kg |
| Mounting: | WallMount + DIN Rail |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 50°C with air flow |
| Storage temp.: | -20°C to 70°C |
| Humidity: | 5% to 95% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| BOLT 6ETH | 10005376 | B04-27C-BOLT6ETH-I57300U–R08–SSD256 | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
| RAM | R08 | 8GB RAM |
| R16 | 16GB RAM | |
| R32 | 32GB RAM |
| STORAGE | SSDXXX | 128GB to 1TB, 2,5” type |
| MSDXXX | 64GB to 1TB, mSATA type |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |

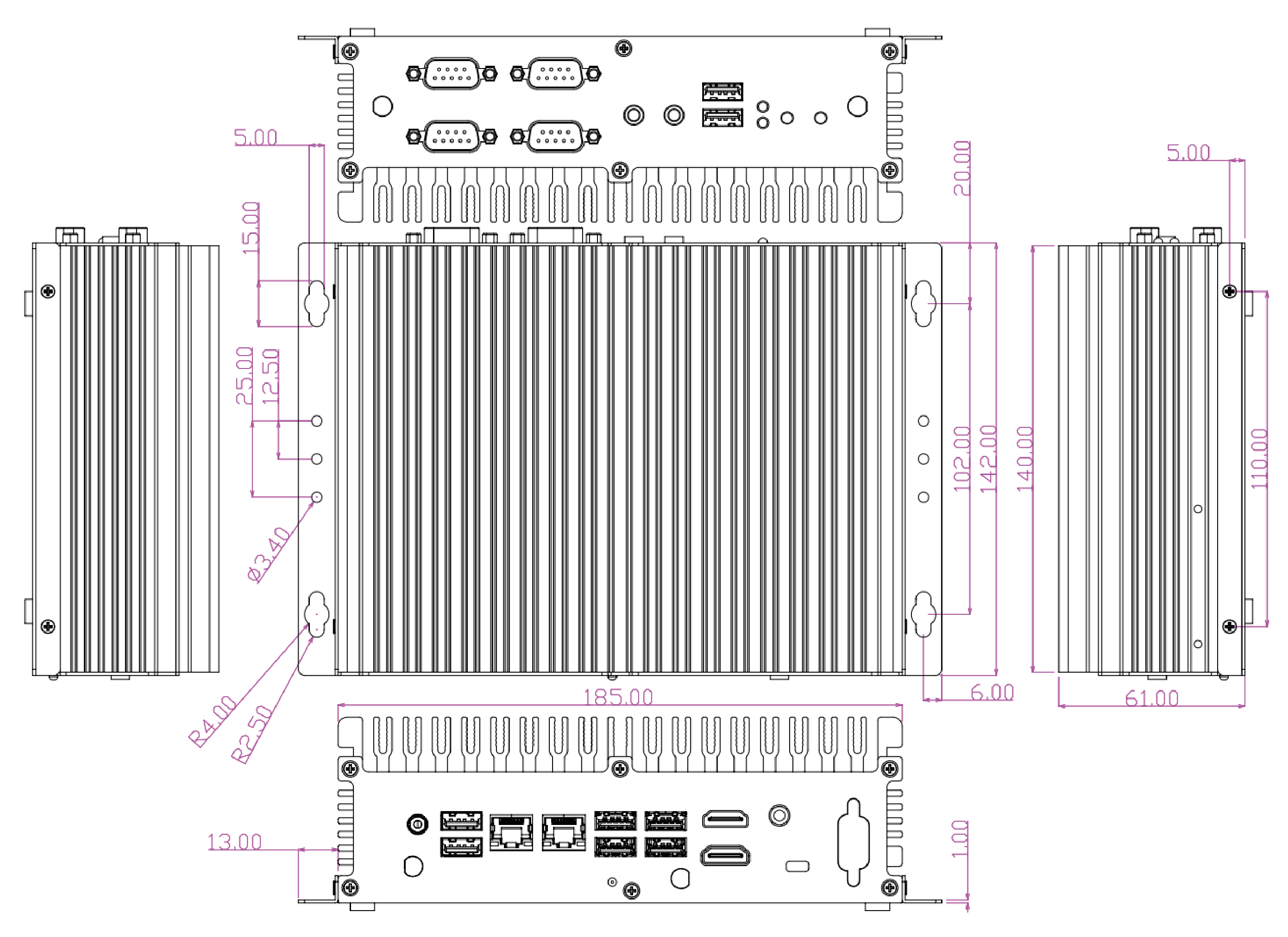

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BOLT 6ETH | v1.0 | 2023-06-01 | 1.30 MB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BOLT 6ETH manual | v1.0 | 2023-06-01 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BOLT 6ETH HIG | v1.0 | 2023-06-01 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BOLT 6ETH drivers | v1.0 | 2023-06-01 | 4.3 GB | |
