NEW
BULL N97
Intel® Processor (N97)
1x DDR5 4800 MHz up to 32GB RAM
12-28V, DC-in w/ 220VAC Power Adapter
6x USB 2.0 + 1x USB 3.2 + 1x USB Type-C 3.2
2x Intel 2.5 Gigabit Ethernet LAN
WIFI and 4G/5G connectivity (Optional)
3x 4K Video interface (2xHDMI + 1x Type-C DP)
Desktop, Wall and DIN-Rail mount Kit
| MAINBOARD | |
| CPU: | Intel ® Processor N97 4 Core / 4 Thread 2.0 GHz (Base) / 3.6 GHz (Turbo),12W |
| TPM: | TPM 2.0 / Intel fTPM 2.0 (PTT) |
| MEMORY | |
| Capacity: | up to 32GB |
| Frequency: | 4800 MHz |
| Type: | 1x SO-DIMM DDR5 |
| STORAGE | |
| SATA: | 1x SATA3 |
| eMMC: | 1x eMMC 64GB (on request) |
| M.2: | 1x M.2 M-Key (2242/2280) NVMe PCIe 3.0 x2 |
| Storage Bay: | 1x Internal 2.5” SSD Bay (Optional) |
| I/O INTERFACE | |
| Serial ports: | 1x COM RS232/422/485 3x COM RS232 |
| USB ports: | 1x USB 3.2, 1x USB 3.2 Type C, 6x USB 2.0 |
| M.2: | 1x M.2 M-Key (3042/3052) USB 3.2/2.0 for 4G/5G 1x M.2 E-Key (2230) USB 2.0/PCIe 3.0 x1 for WIFI/BT – Support CNVi |
| AUDIO: | 1x Combo Line Line-out/Mic Jack |
| SIM: | 1x SIM Slot (NanoSIM) |
| VIDEO | |
| GPU: | Intel® UHD Graphics (Tiger Lake G4) |
| Interface: | 2x HDMI 2.0b (Up to 4096×2160 @60Hz)
1x Type C DP 1.4 (Up to 3840×2160@60Hz) |
| ETHERNET | |
| LAN: | 2x Intel® i225-V 2.5GbE Gigabit LAN |
| POWER | |
| Power in: | 12 to 28V, DC-in |
| Max Power: | 60W max |
| Adapter: | AC_90~240V / DC_12V_5A/60W |
| MECHANICAL | |
| Material: | Lightweight aluminum alloy with extruded aluminum IO panel |

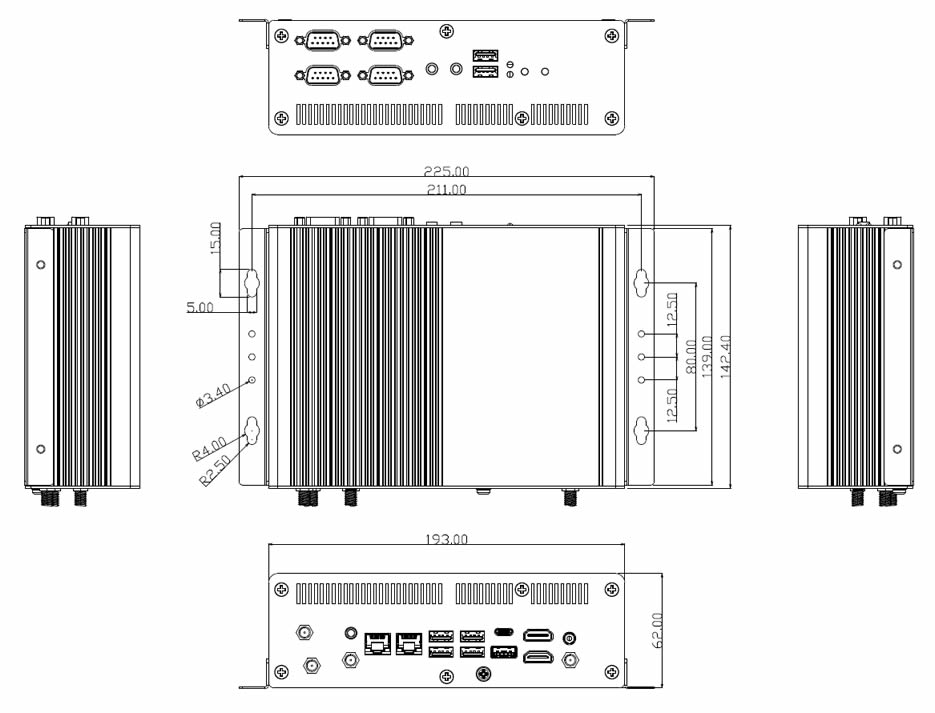

| Dimensions: | (W)193x(D)142.4x(H)62mm |
| Weight: | 2.2Kg |
| Mounting: | WallMount + DIN Rail |
| ENVIRONMENT | |
| Operating temp.: | -20°C to 60°C – w/Air Flow |
| Storage temp.: | -20°C to 85°C |
| Humidity: | 40% to 60% RH @40°C, non-condensing |
| EMC: | CE, FCC, RoHS, LVD, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8.2, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
| * Linux distributions tested with the IPC. |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BULL N97 | v1.0 | 10/02/2025 | 630 KB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BULL N97 manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BULL N97 HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BULL N97 drivers | TBD | TBD | TBD | |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| BULL N97 | 10006875 | B04-32C-BULL-N97–R08–SSD128 | IPC + 8GB RAM + SSD 2.5″ 128GB SSD |
| RAM | R08 | 8GB RAM |
| R16 | 16GB RAM | |
| R32 | 32GB RAM |
| STORAGE | SSD (2,5″) | M2D/SSD128 |
| M2D (M.2) | Other on Request |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
