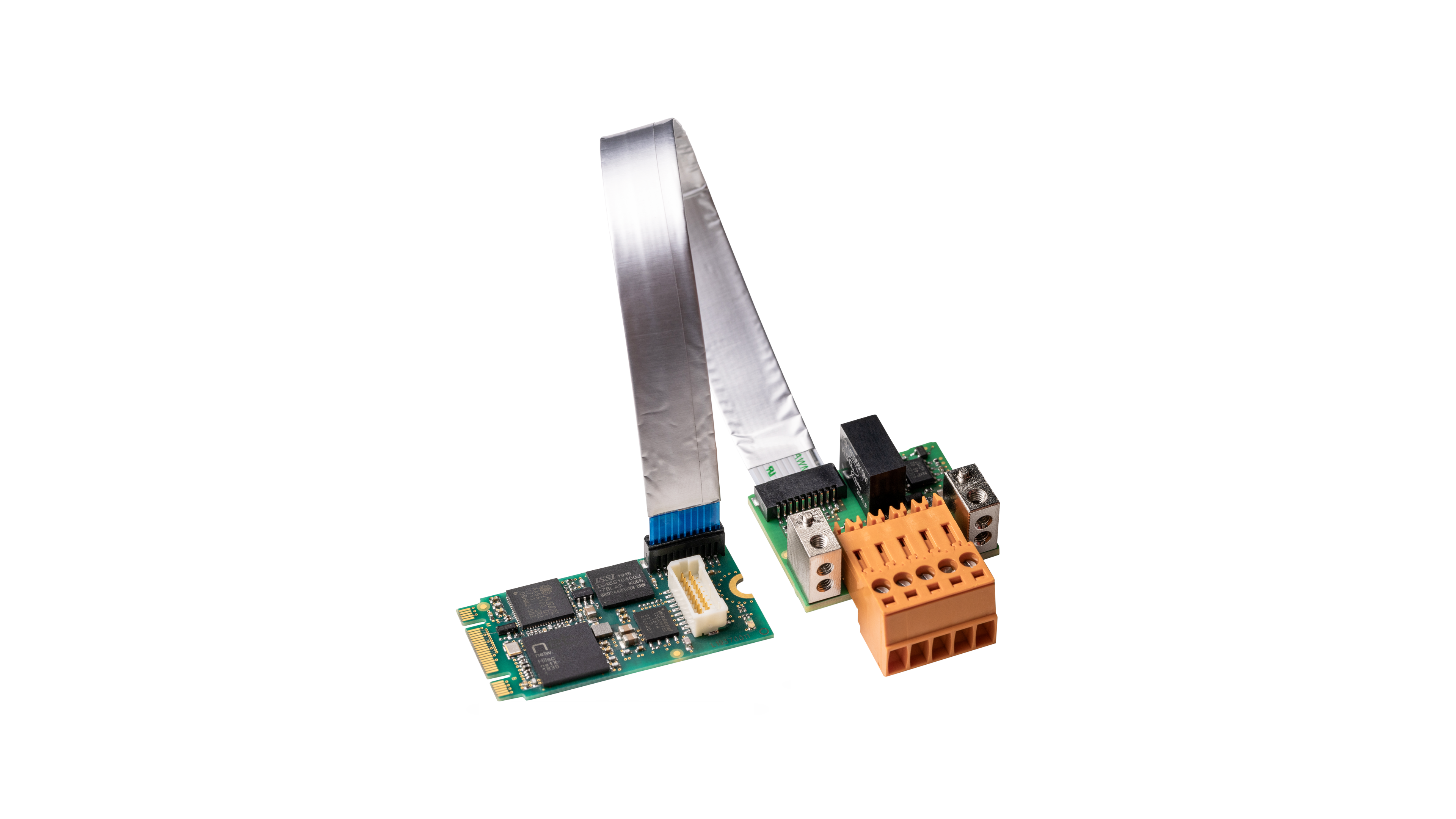

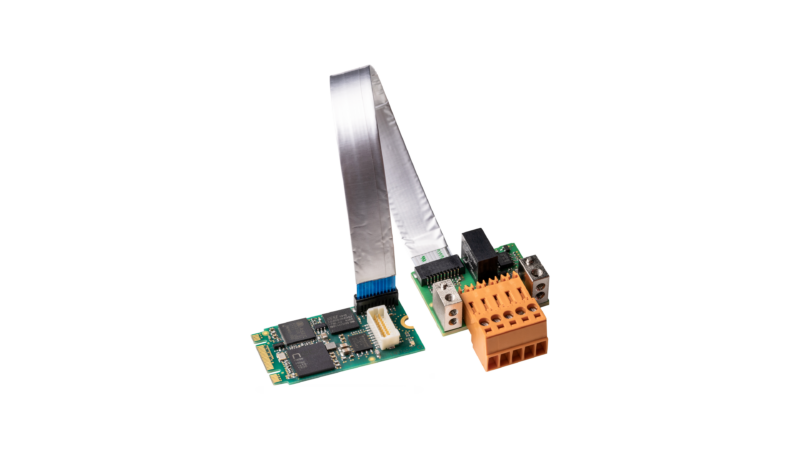

CIFX M224290BM-DN\F
Industrial Communication PC card
M.2 2242 key B+M – DeviceNet
Communication for PC-based automation
Uniform user interface for all protocols and card formats
Easy integration thanks to a wide selection of drivers
Includes a separate DeviceNet interface (15 cm)
An extended temperature range up to 70 °C
| CATEGORY | PARAMETER | VALUE |
|---|---|---|
| PRODUCT | Product name | CIFX M224290BM-DN\F |
| Part number | 1445.511 | |
| Brief description | PC card cifX PCI Express M.2 DeviceNet Slave | |
| Function | Communication Interface M.2 2242 Key B+M with PCI Express M.2 and DeviceNet interface | |
| COMMUNICATION CONTROLLER | Type | netX 90 |
| INTEGRATED MEMORY | RAM | 8 MByte SDRAM |
| FLASH | 8 MByte + 1 MByte | |
| POWER SUPPLY | Supply voltage | +3.3 V DC ±5 % |
| Maximum current (typically) | 330 mA (at 3.3 V), maximum | |
| Connector | via PCI Express Bus M.2 | |
| SYSTEM INTERFACE | Bus type | PCI Express M.2, one-lane port |
| Data access | Dual-port memory | |
| Connector type | M.2-type 2242-D3, Dual key B-M (Socket 1) | |
| Dual-port memory size | 64 KByte | |
| Data width | 32 bit | |
| Transmission rate | 33 MHz | |
| COMMUNICATION INTERFACE | Communication standard | Ethernet |
| Interface type | 10BASE-T/100BASE-TX, isolated | |
| Auto negotiation | Supported | |
| Auto cross over | Supported | |
| Connector | Cable connector Ethernet (JST BM20B-SRDS-G-TF, 1.0 mm pitch) to connect an AIFX-V2-RE | |
| DISPLAYS | LED display | SYS (System status) |
| COM 0 (Communication status) on AIFX-V2-RE | ||
| COM 1 (Communication status) on AIFX-V2-RE | ||
| PERMITTED AMBIENT CONDITIONS | Operating temperature range | -20 °C … +60 °C; with air flow of 0.5 m/s also up to +70 °C |
| Storage temperature range | -40 °C … +85 °C | |
| Humidity | 10 % … 95 % relative humidity, no condensation permitted | |
| Environment | The device must be used only in a pollution degree 2 environment (or better) | |
| Altitude | 0 m … 2000 m | |
| DEVICE | Dimensions (L x W x H) | 42 mm x 22 mm x 7 mm |
| CONFIGURATION | Configuration software | Communication Studio |
| Download firmware and configuration | Device Explorer | |
| CONFORMITY | RoHS | Yes |
| CONFORMANCE WITH EMC DIRECTIVES | CE sign | Yes |
| UKCA sign | Yes | |
| Emission | DIN EN 61000-6-3 / BS EN 61000-6-3 | |
| Immunity | DIN EN 61000-6-2 / BS EN 61000-6-2 |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CIFX M224290BM-DN\F | v1.0 | 2024 | *** |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CIFX M224290BM-DN\F Manual | v4.0 | 03-2024 | *** | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CIFX M224290BM-DN\F HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CIFX M224290BM-DN\F drivers | TBD | TBD | TBD | |
| INDUSTRIAL COMMUNICATION | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| CIFX M224290BM-DN\F | 1445.511 | PC card M.2 2242 Key B+M – DeviceNet | |
The cifX PC card family is the unified standard supporting all Real-Time Ethernet and Fieldbus systems for PC-based automation.
The protocol stack is executed autonomously on the PC card and process data is exchanged with the host via Dual-Port-Memory or DMA (Direct Memory Access). Due to the common Hilscher Platform Strategy, all PC cards use the same driver and tools – irrespective of protocol and card format. The Hilscher netX technology makes it possible to realize all Real-Time Ethernet protocols with one single hardware. A communication protocol can be changed by loading a different firmware.
Always the right solution! Different cable lengths, M-12 connectors, additional NVRAM, extended temperature range, 2-channel cards, or detached network interfaces – numerous hardware options always offer the optimum solution for your application. Moreover, a wide range of device drivers as well as a C-Toolkit, which is free of charge, are available.
The PC-based automation market keeps evolving, and the Hilscher cifX PC card family keeps pace. The permanent extension of the cifX portfolio by new standards, protocols, and formats, e. g. M.2, mini PCIe halfsize, or CC-Link IE Field, our customers are always well-prepared to meet new market requirements.
