NEW

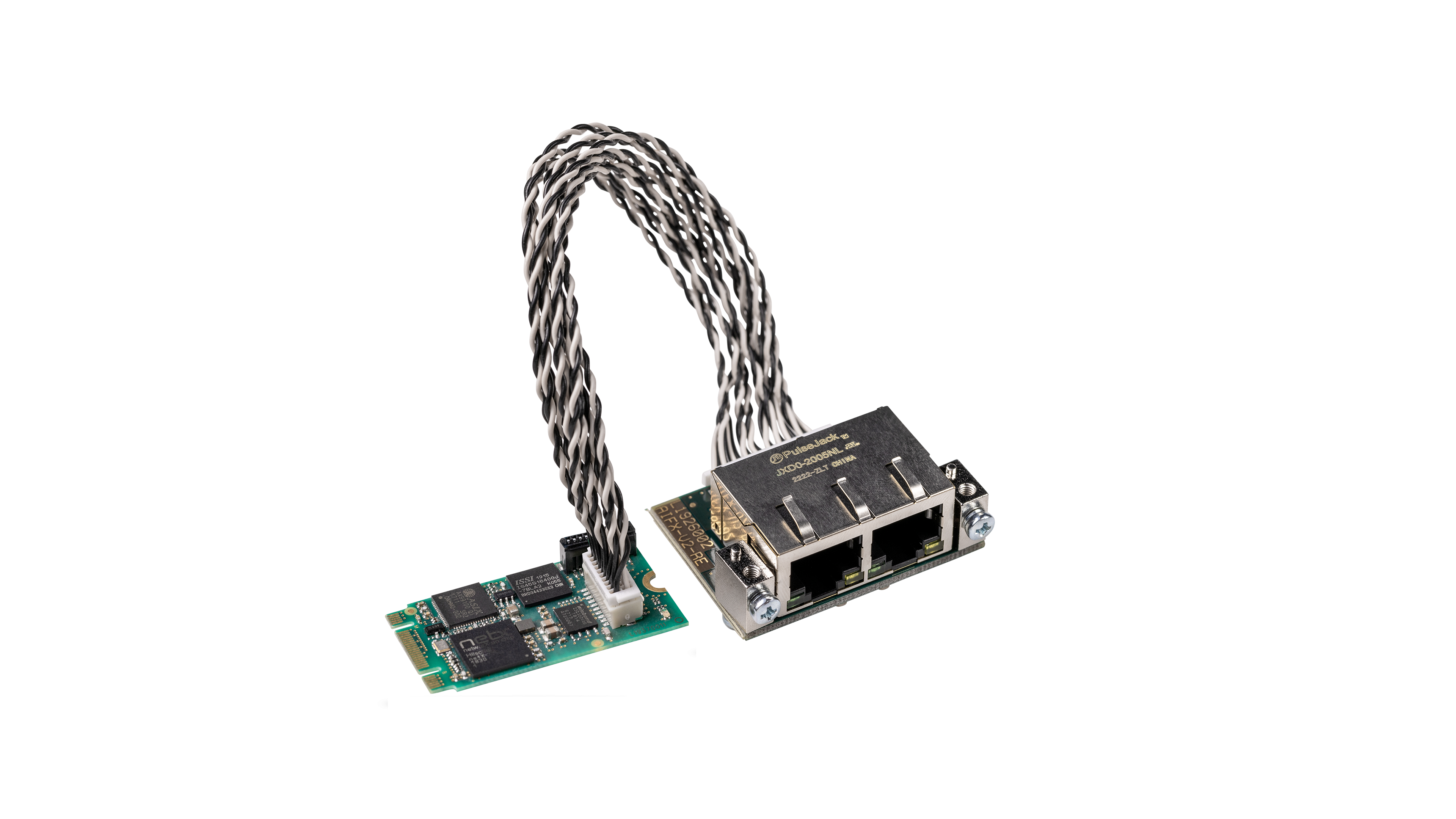

CIFX M224290BM-RE\F
Industrial Communication PC card
M.2 2242 key B+M – Real-Time
Communication for PC-based automation
Universal for all Real-Time Ethernet
Uniform user interface for all protocols and card formats
Easy integration thanks to a wide selection of drivers
Includes a separate network interface (15 cm or 20 cm)
An extended temperature range up to 70 °C
ㅤ
| CATEGORY | PARAMETER | VALUE |
|---|---|---|
| PRODUCT | Product name | CIFX M224290BM-RE\F |
| Part number | 1445.101 | |
| Brief description | PC card cifX PCI Express M.2 Real-Time Ethernet Slave | |
| Function | Communication Interface M.2 2242 Key B+M with PCI Express M.2 and Ethernet interface | |
| COMMUNICATION CONTROLLER | Type | netX 90 |
| INTEGRATED MEMORY | RAM | 8 MByte SDRAM |
| FLASH | 8 MByte + 1 MByte | |
| POWER SUPPLY | Supply voltage | +3.3 V DC ±5 % |
| Maximum current (typically) | 330 mA (at 3.3 V), maximum | |
| Connector | via PCI Express Bus M.2 | |
| SYSTEM INTERFACE | Bus type | PCI Express M.2, one-lane port |
| Data access | Dual-port memory | |
| Connector type | M.2-type 2242-D3, Dual key B-M (Socket 1) | |
| Dual-port memory size | 64 KByte | |
| Data width | 32 bit | |
| Transmission rate | 33 MHz | |
| COMMUNICATION INTERFACE | Communication standard | Ethernet |
| Interface type | 10BASE-T/100BASE-TX, isolated | |
| Auto negotiation | Supported | |
| Auto cross over | Supported | |
| Connector | Cable connector Ethernet (JST BM20B-SRDS-G-TF, 1.0 mm pitch) to connect an AIFX-V2-RE | |
| DISPLAYS | LED display | SYS (System status) |
| COM 0 (Communication status) on AIFX-V2-RE | ||
| COM 1 (Communication status) on AIFX-V2-RE | ||
| PERMITTED AMBIENT CONDITIONS | Operating temperature range | -20 °C … +60 °C; with air flow of 0.5 m/s also up to +70 °C |
| Storage temperature range | -40 °C … +85 °C | |
| Humidity | 10 % … 95 % relative humidity, no condensation permitted | |
| Environment | The device must be used only in a pollution degree 2 environment (or better) | |
| Altitude | 0 m … 2000 m | |
| DEVICE | Dimensions (L x W x H) | 42 mm x 22 mm x 7 mm |
| CONFIGURATION | Configuration software | Communication Studio |
| Download firmware and configuration | Device Explorer | |
| CONFORMITY | RoHS | Yes |
| CONFORMANCE WITH EMC DIRECTIVES | CE sign | Yes |
| UKCA sign | Yes | |
| Emission | DIN EN 61000-6-3 / BS EN 61000-6-3 | |
| Immunity | DIN EN 61000-6-2 / BS EN 61000-6-2 |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CIFX M224290BM-RE\F | v1.0 | 2024 | *** |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CIFX M224290BM-RE\F Manual | v7.0 | 03-2024 | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CIFX M224290BM-RE\F HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CIFX M224290BM-RE\F drivers | TBD | TBD | TBD | |
| INDUSTRIAL COMMUNICATION | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| CIFX M224290BM-RE\F | 1445.101 | PC card M.2 2242 Key B+M – Real-Time Ethernet | |
The cifX PC card family is the unified standard supporting all Real-Time Ethernet and Fieldbus systems for PC-based automation.
The protocol stack runs autonomously on the PC card, and process data is exchanged with the host via Dual-Port-Memory or DMA (Direct Memory Access). Due to the common Hilscher Platform Strategy, all PC cards use the same driver and tools—regardless of protocol and card format. The Hilscher netX technology enables the realization of all Real-Time Ethernet protocols with a single hardware. A communication protocol can be changed by loading a different firmware.
Always the right solution! Various cable lengths, M-12 connectors, additional NVRAM, extended temperature ranges, 2-channel cards, or detached network interfaces—numerous hardware options always provide the optimal solution for your application. Additionally, a wide range of device drivers as well as a free C-Toolkit are available.
The PC-based automation market is continuously evolving, and the Hilscher cifX PC card family keeps up. With the ongoing expansion of the cifX portfolio to include new standards, protocols, and formats, such as M.2, mini PCIe half-size, or CC-Link IE Field, our customers are always well-equipped to meet new market demands.
