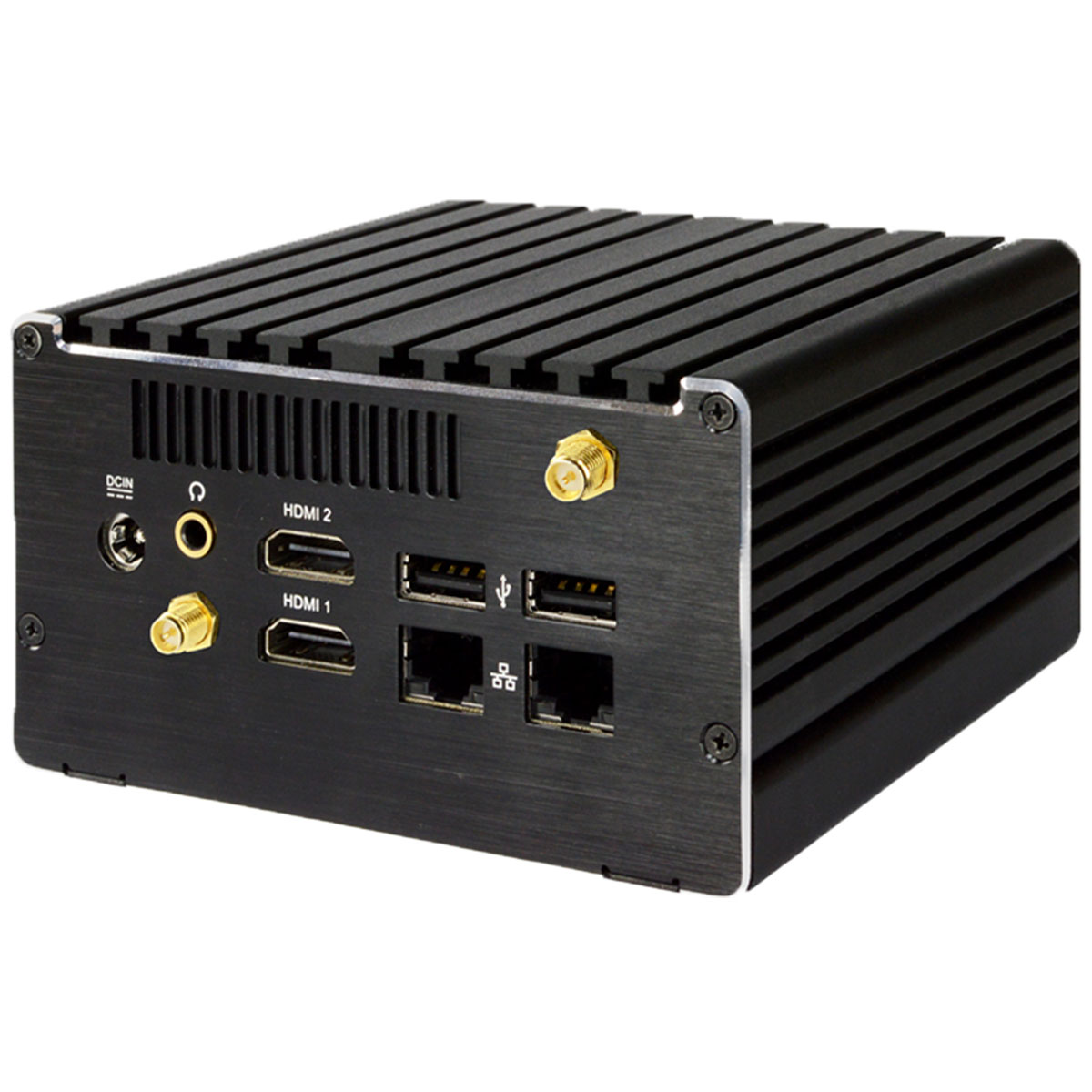

CUBO N2930
INTEL® N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
1x DDR3L 1333 MHz 8GB RAM
Extended power supply range from 9V to 24V and 20W max Power consumption
2x LAN Intel® 82583V Gigabit Ethernet
Compact format (L)116x(W)110x(H)65mm
INDATECH Industrial PC Cubo N2930
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Celeron N2930
Quad-Core 1.83GHz, 7.5W |
| MEMORY | |
| Capacity: | 8GB |
| Frequency: | 1333 MHz |
| Type: | 1x SO-DIMM DDR3L |
| STORAGE | |
| SATA: | 1x SATA3 |
| mSATA: | 1x mSATA Mini PCIe (Full Size) |
| Storage Bay: | 1x Internal 2.5” SSD Bay |

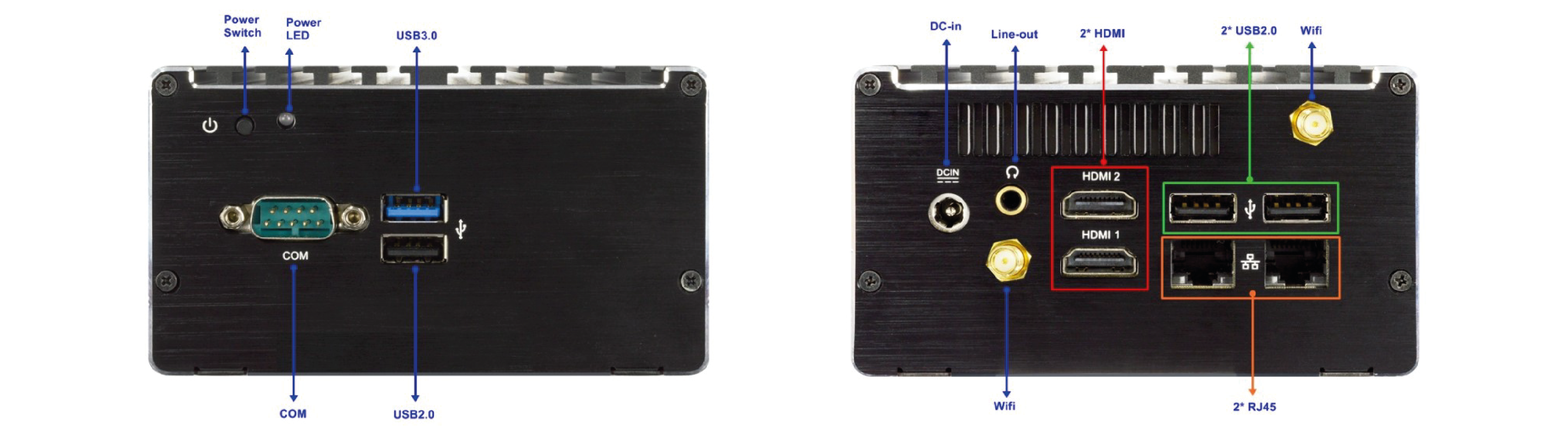

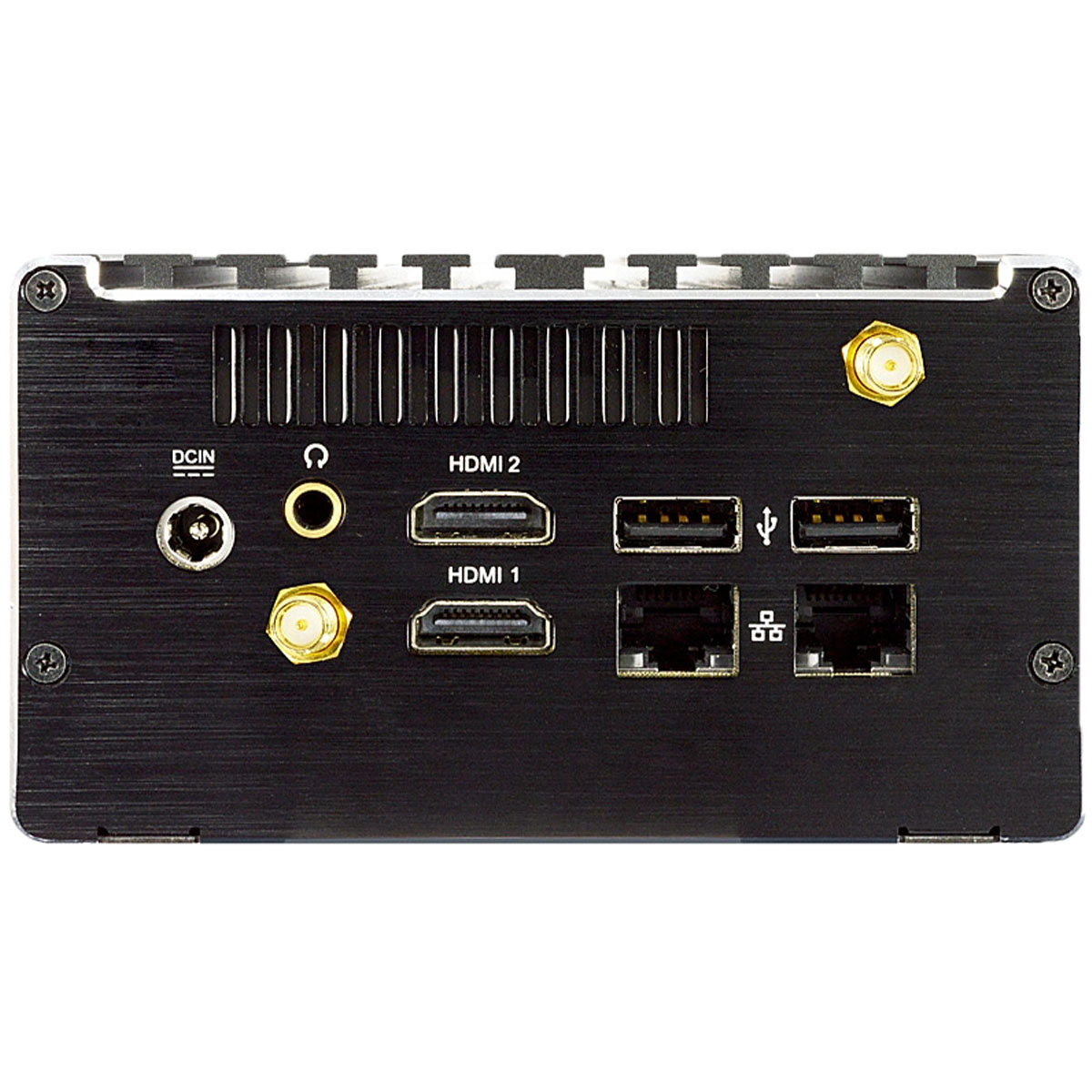

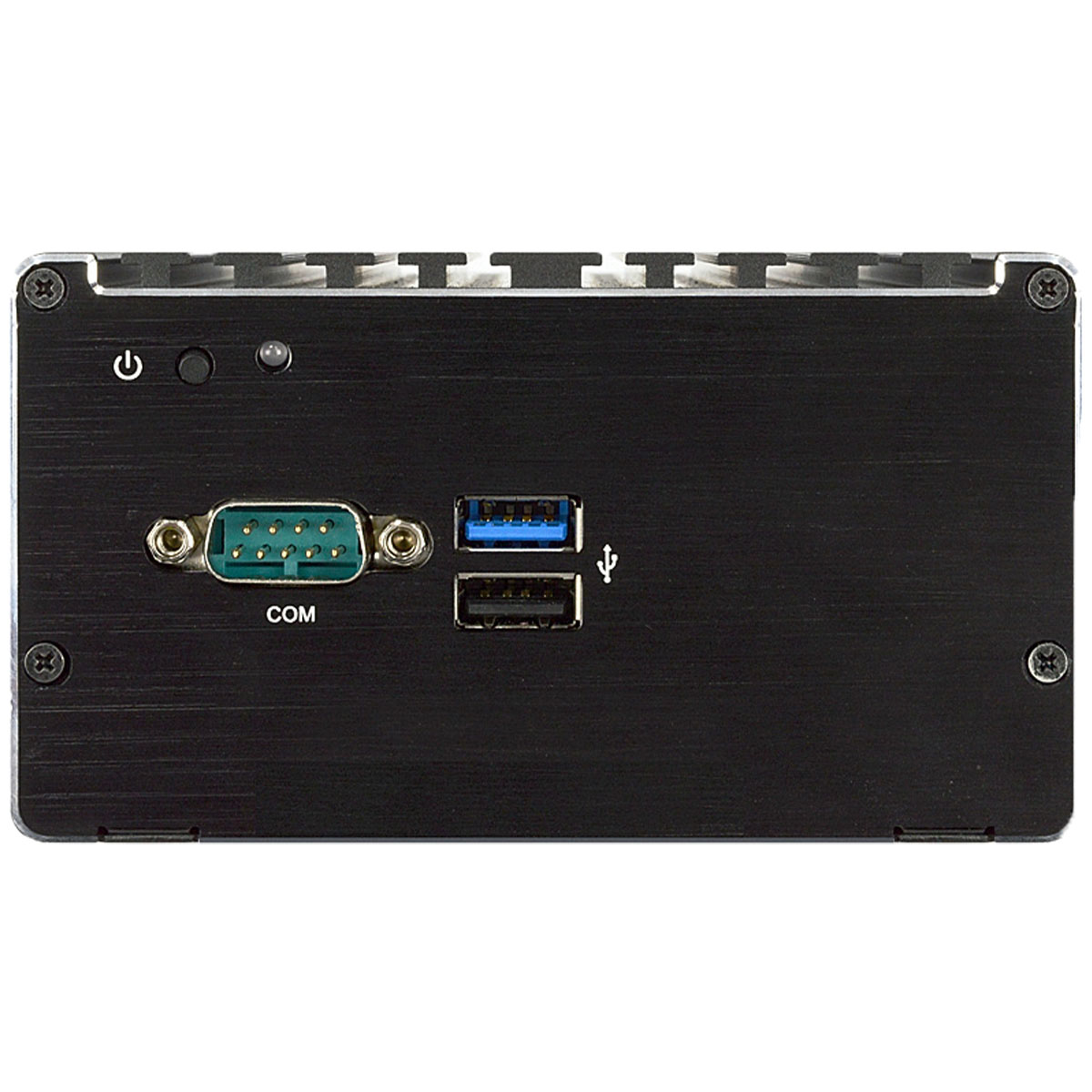

| I/O INTERFACE | |
| Serial ports: | 1x COM RS232/422/485 (ESD 8kV) |
| USB ports: | 1x USB 3.0
3x USB 2.0 |
| Mini-PCIe: | 1x Mini-PCIe (Half Size) for WIFI module |
| AUDIO: | 1x Audio line out with SPDIF out |
| VIDEO | |
| GPU: | Intel® HD Graphics |
| Interface: | 2x HDMI (Up to 1920×1080 @60Hz) |
| ETHERNET | |
| LAN: | 2x Intel® 82583V Gigabit Ethernet |
| POWER | |
| Power in: | 9 to 24V, DC-in |
| Max Power: | 20W max |
| Adapter: | AC_90~240V / DC_12V_3A/36W |
| MECHANICAL | |
| Material: | Lightweight aluminum alloy with extruded aluminum IO panel |
| Dimensions: | (L)116x(W)110x(H)65mm |
| Weight: | 0.9Kg |
| Mounting: | WallMount + VESA + DIN Rail combo kit |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 40°C with air flow |
| Storage temp.: | -20°C to 80°C |
| Humidity: | 5% to 95% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| CUBO N2930 | 10005376 | B04-12C-CUBO-N2930–R08–SSDXXX | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
| STORAGE | SSD (2,5”) | M2D/SSD128 |
| MSD (mSATA) | M2D/SSD256 |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CUBO N2930 | v1.0 | 2023-06-01 | 1.08 MB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CUBO N2930 manual | v1.0 | 2023-06-01 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CUBO N2930 HIG | v1.0 | 2023-06-01 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CUBO N2930 drivers | v1.0 | 2023-06-01 | 4.3 GB | |
