ES-A08F1-MU
Unmanaged Industrial Automation Ethernet Switch
8x 10/100BaseT(X) (RJ45)
Broadcast storm protection
Supports IEEE 802.3/ 802.3u/ 802.3x
QoS and packet prioritization according to 802.1p and Profinet CC-A requirements
10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 9~48 VDC (4.05W)
Operating temperature ranges from -10˚ ~ +70˚C
Metal – Rugged high-strenght housing
DIN-Rail or wall mounting ability
INDATECH Industrial Automation Switch NETLANCE ES-A08F1-MU
INDATECH NETLANCE – Unmanaged Industrial Automation Ethernet Switch, 8x 10/100 BaseT(X), Metal – Rugged aluminum housing, IP40, Redundante with Reverse Polarity Protection 9~48VDC
QoS and packet prioritization according to 802.1p and Profinet CC-A requirements
Specifiche tecniche
| ETHERNET | |
| Connector: | RJ45 |
| Ports: | 8 |
| Transmission Rate: | 10/100/1000 Mbps |
| Standards: | IEEE 802.3 IEEE 802.3u IEEE 802.3x |
| Auto MDI/MDI-X: | Yes |
| Flow Control: | IEEE802.3x flow control, back-pressure flow control |
| Jumpo Frame Size: | Up to 9216 byte |
| POWER | |
| Input Voltage: | 9 ~ 48 VDC |
| Input Current: | 0.45A |
| Power Consumption: | 4.05 W Max |
| Connector: | 5.08mm 5-pin Terminal Block |
| Reverse Polarity Protection: | Yes |
| Redundancy: | Yes |
| PHYSICAL CHARACTERISTICS | |
| Housing: | IP40 protection, aluminum housing |
| Dimension (W x H x D): | 45,2mm x 90mm x 78mm |
| Weight: | 255g |

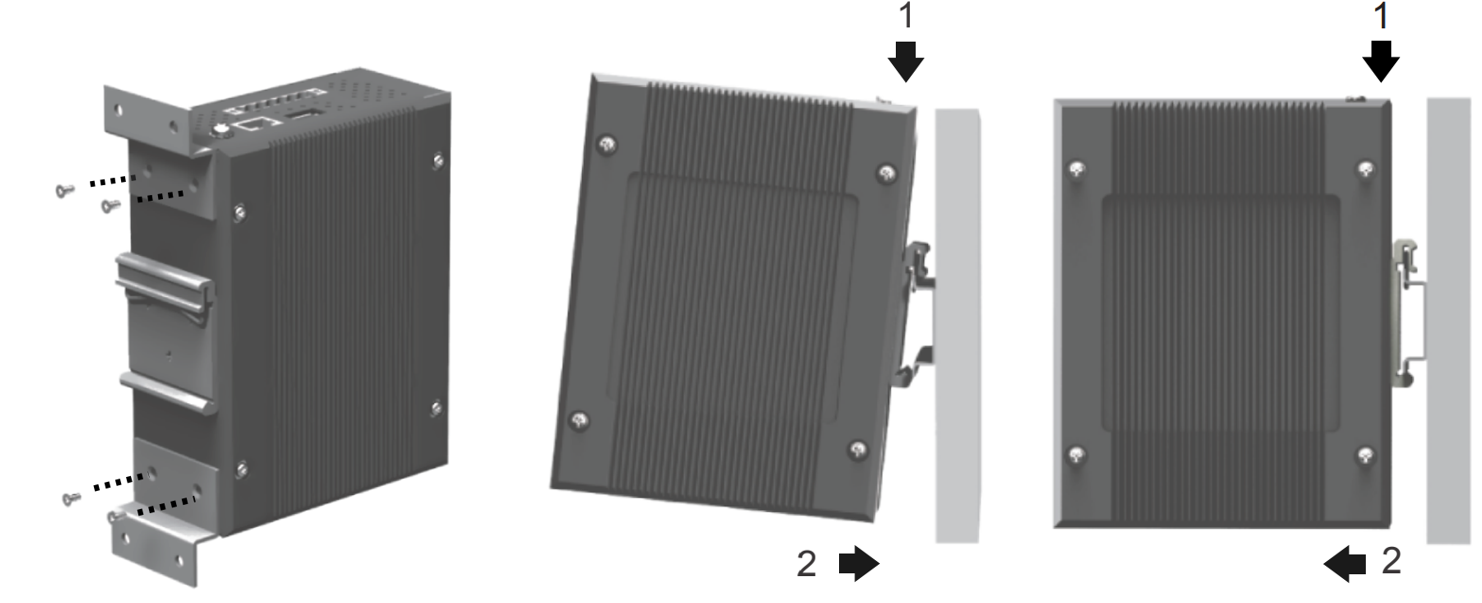

| Installation: | DIN-Rail , Wall mount (optional kit) |
| Reset Button: | No |
| Warranty: | 5 years |
| ENVIRONMENTAL LIMITS | |
| Operating Temperature: | -10°C ~ +70°C ( 14° ~ 158°F ) |
| Storage Temperature: | -40°C ~ +85°C ( -40°~ 185°F ) |
| Ambient Relative Humidity: | 5 ~ 95%RH (Non-condensing) |
| CERTIFICATION | STANDARD |
| FCC (EMI) | FCC Part 15, Subpart B, Class A |
| CE (EMI) | EN55032:2012+AC:2013 Class A. EN61000-3-2:2014, EN 61000-3-3:2013 |
| CE (EMS) | EN55024:2010 (IEC 61000-4-2:2008) IEC 61000-4-3:2006/A1:2007/A2:2010,IEC 61000-4-4:2012IEC 61000-4-5:2014, IEC 61000-4-6:2013 IEC 61000-4-8 :2009, IEC 61000-4-11:2004 |
| Shock | IEC 60068-2-27 |
| Drop | IEC 60068-2-32(ISTA Test Procedure 2A) |
| Vibration | IEC 60068-2-64 |
| High Altitude | Certified for 4000m altitude according to IEC 60068-2-13 |
| RoHS | Lead (Pb) Free |
| MTBF | 472359.98 hrs (25°C) / 53.92 years (25°C) |
| IP Protection | IP40 IEC/EN60529 |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| ES-A08F1-MU | 10006398 | INDATECH NETLANCE – Unmanaged Industrial Automation Ethernet Switch, 8x 10/100 BaseT(X), Metal – Rugged aluminum housing, IP40, Redundante with Reverse Polarity Protection 9~48VDC | |

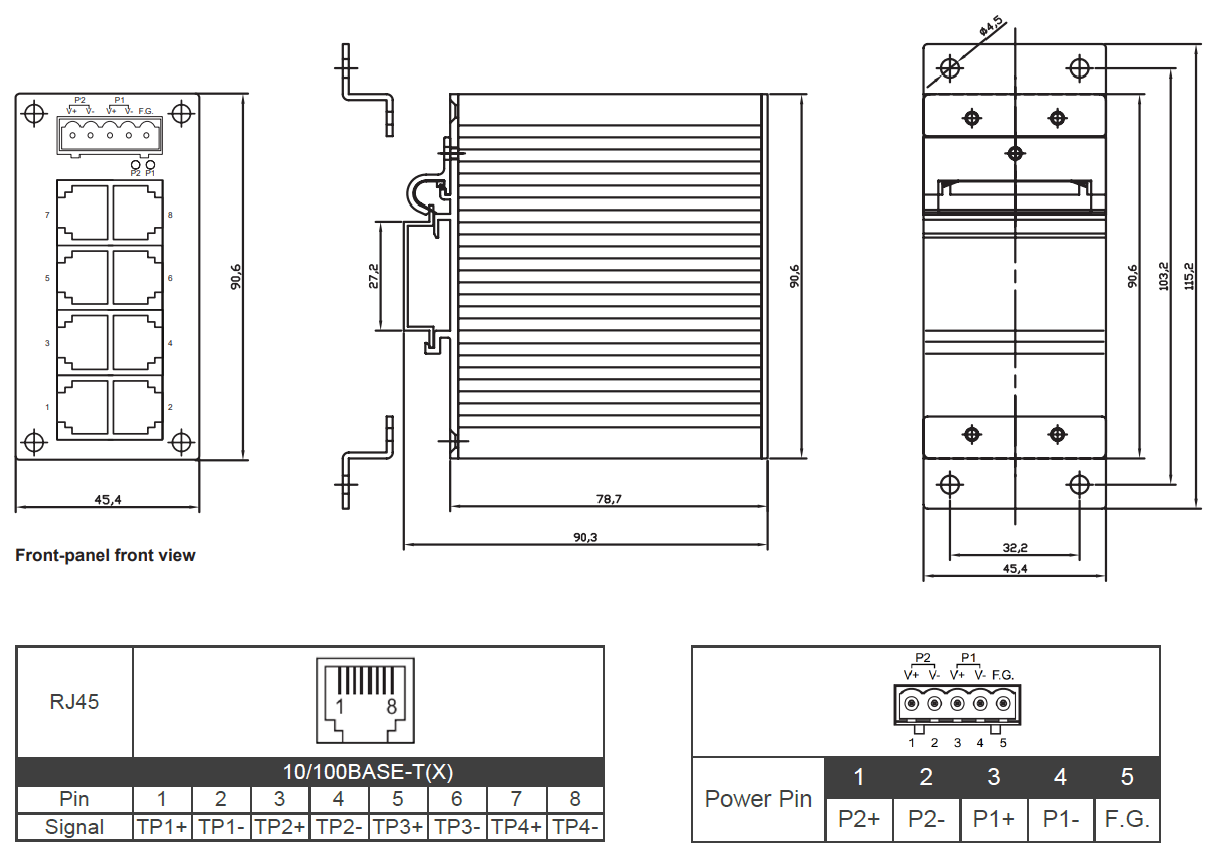

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-A08F1-MU | TBD | TBD | TBD |  |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-A08F1-MU Drivers | TBD | TBD | TBD | |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-A08F1-MU manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-A08F1-MU HIG | TBD | TBD | TBD | |
