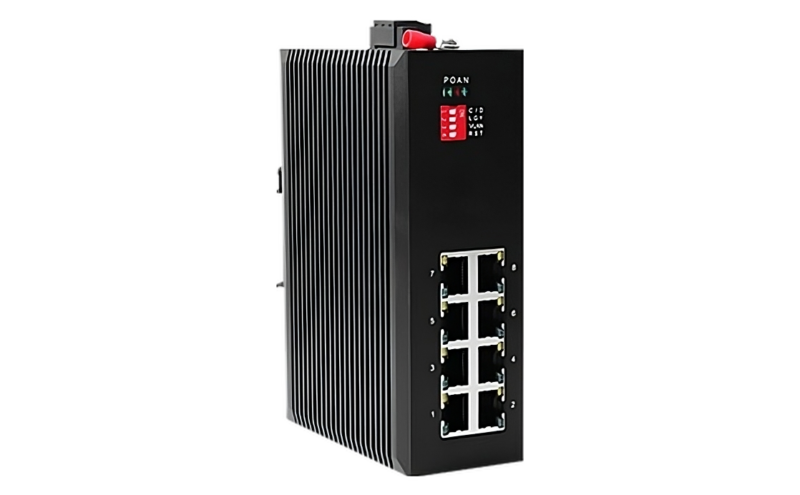

ES-I08F2-MU
Unmanaged Industrial Ethernet Switch
8x 10/100BaseT(X) (RJ45)
Broadcast storm protection
Supports IEEE 802.3/ 802.3u
10/100 Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 10~58 VDC (6W)
Operating temperature ranges from –40˚ ~ +85˚C
Metal housing
DIN-Rail
INDATECH Industrial Ethernet Switch
Specifiche tecniche
| ETHERNET | |
| Connector: | RJ45 |
| Ports: | 8 |
| Transmission Rate: | 10/100/1000 Mbps |
| Standards: | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX |
| Auto MDI/MDI-X: | Yes |
| Flow Control: | Yes |
| Jumpo Frame Size: | Up to 2048 byte |
| POWER | |
| Input Voltage: | 10 ~ 58 VDC |
| Input Current: | 0.6A |
| Power Consumption: | 6 W Max |
| Connector: | 5.08mm 5-pin Terminal Block |
| Reverse Polarity Protection: | Yes |
| Redundancy: | Yes |
| PHYSICAL CHARACTERISTICS | |
| Housing: | IP40 protection, aluminum housing |
| Dimension (W x H x D): | 48mm x 143mm x 104mm |
| Weight: | 255g |
| Installation: | DIN-Rail |
| Reset Button: | No |
| Warranty: | 1 years |
| ENVIRONMENTAL LIMITS | |
| Operating Temperature: | -40°C ~ +85°C ( -40° ~ 185°F ) |
| Storage Temperature: | -40°C ~ +85°C ( -40°~ 185°F ) |
| Ambient Relative Humidity: | 5 ~ 95%RH (Non-condensing) |
| CERTIFICATION | STANDARD |
| FCC (EMI) | FCC Part 15, Subpart B, Class A |
| CE (EMI) | EN55032:2012+AC:2013 Class A. EN61000-3-2:2014, EN 61000-3-3:2013 |
| CE (EMS) | EN55024:2010 (IEC 61000-4-2:2008) IEC 61000-4-3:2006/A1:2007/A2:2010,IEC 61000-4-4:2012IEC 61000-4-5:2014, IEC 61000-4-6:2013 IEC 61000-4-8 :2009, IEC 61000-4-11:2004 |
| Shock | IEC 60068-2-27 |
| Drop | IEC 60068-2-32(ISTA Test Procedure 2A) |
| Vibration | IEC 60068-2-64 |
| RoHS | Lead (Pb) Free |
| MTBF | 100000 hrs (25°C) / 11.42 years (25°C) |
| IP Protection | IP40 IEC/EN60529 |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| ES-I08F2-MU | 10006249 | INDATECH NETLANCE – Unmanaged Industrial Ethernet Switch, 8x 10/100BaseT(X), Metal housing, IP40, Redundante 10~58VDC | |

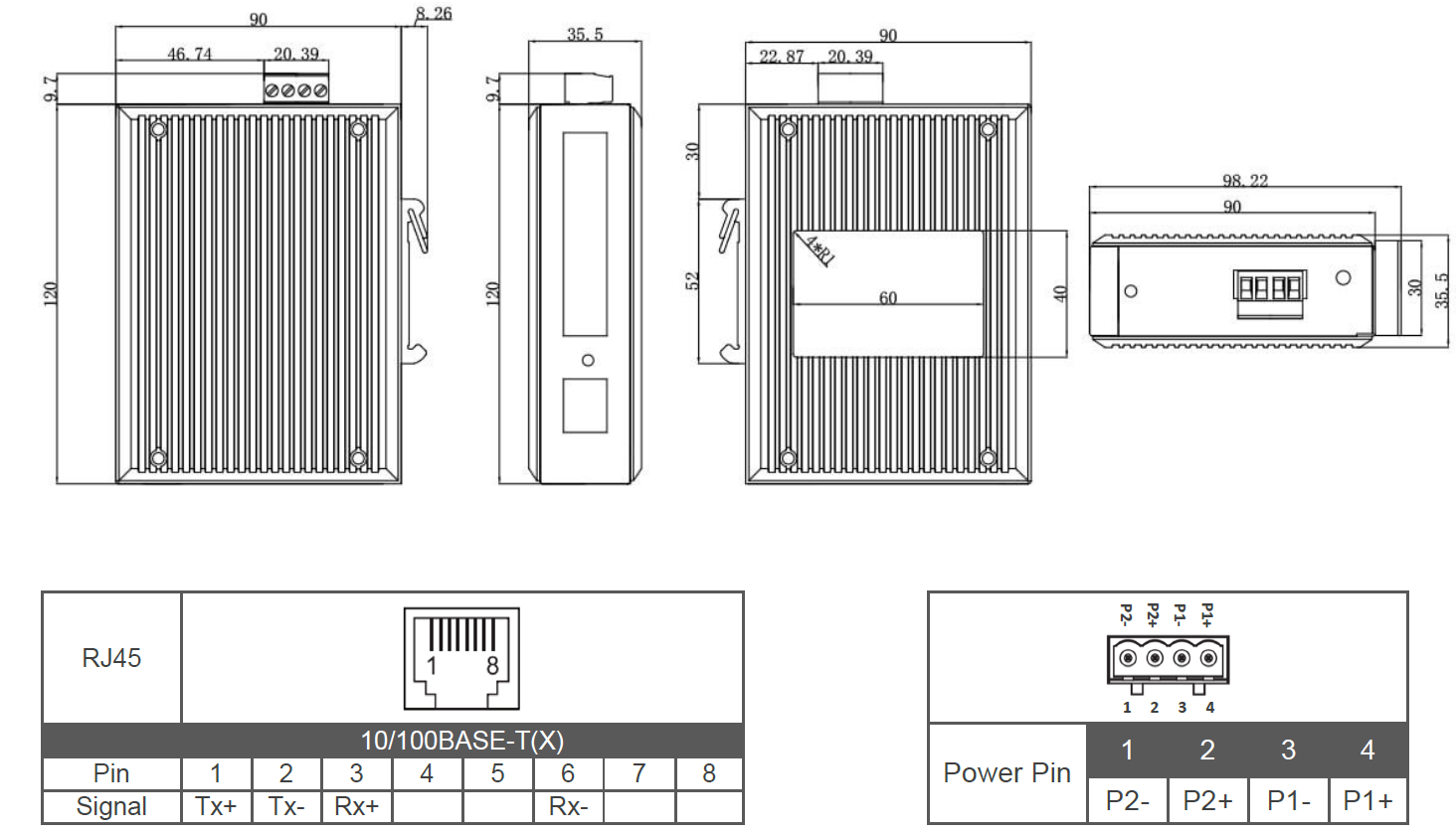

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-I08F2-MU | TBD | TBD | TBD |  |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-I08F2-MU Drivers | TBD | TBD | TBD | |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-I08F2-MU manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-I08F2-MU HIG | TBD | TBD | TBD | |
