NEW

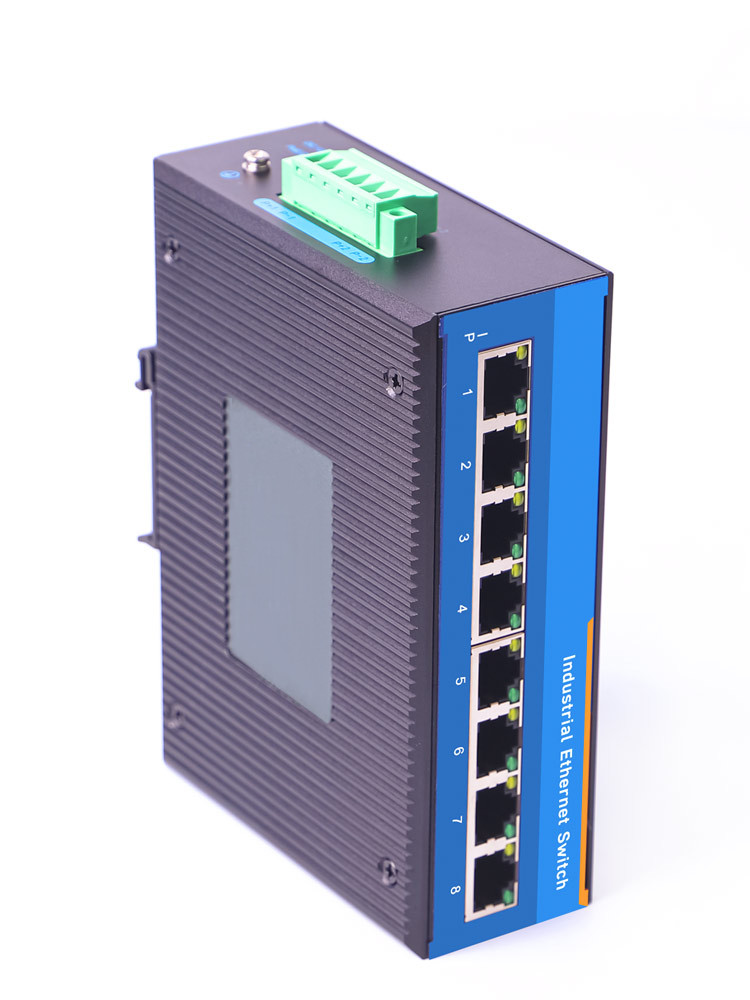

ES-I08G2-MUP
Unmanaged Industrial PoE/PoE+ Ethernet Switch
8x 10/100/1000BaseT(X) PoE/PoE+ (RJ45)
Supports IEEE 802.3 /ab /i /u /x /z
Supports IEEE 802.3af /at (PoE/PoE+)
10/100/1000 Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 12~52 VDC (<3W no PoE)
48~57 VDC for PoE/PoE+
Operating temperature ranges from –40˚ ~ +85˚C
IP40, Metal housing
DIN-Rail Mounting
INDATECH Industrial PoE/PoE+ Ethernet Switch
Specifiche tecniche
| ETHERNET | |
| Connector: | RJ45 |
| Ports: | 8 |
| Transmission Rate: | 10/100/1000 Mbps |
| Standards: | IEEE 802.3 /ab /i /u /x /z IEEE 802.3af /at (PoE/PoE+) |
| Auto MDI/MDI-X: | Yes |
| Flow Control: | Yes |
| Jumpo Frame Size | 2048 |
| POWER | |
| Input Voltage: | 12 ~ 52 VDC / 48 ~ 57 VDC (PoE/PoE+) |
| Input Current: | 0.25A |
| Power Consumption: | < 3W Max |
| Connector: | 5.08mm 4-pin Terminal Block |
| Reverse Polarity Protection: | Yes |
| Redundancy: | Yes |
| PHYSICAL CHARACTERISTICS | |
| Housing: | IP40 protection, Metal housing |
| Dimension (W x H x D): | 156mm x 113mm x 48mm |
| Weight: | 0.55 Kg |
| Installation: | DIN-Rail |
| Reset Button: | No |
| Warranty: | 1 years |
| ENVIRONMENTAL LIMITS | |
| Operating Temperature: | -40°C ~ 85°C ( -40° ~ 185°F ) |
| Storage Temperature: | -40°C ~ 85°C ( -40°~ 185°F ), 5 ~ 95% RH |
| MTBF (MIL-HDBK-217F): | 97471 |
| Ambient Relative Humidity: | 5 ~ 95%RH (Non-condensing) |
| REGULATORY APPROVALS | |
| FCC (EMI) | FCC Part 15, Subpart B, Class A |
| CE (EMI) | EN55032:2012+AC:2013 Class A. EN61000-3-2:2014, EN 61000-3-3:2013 |
| CE (EMS) | EN55024:2010 (IEC 61000-4-2:2008) Level 4 (8K/15K) IEC 61000-4-3:2006/A1:2007/A2:2010, IEC 61000-4-4:2012 IEC 61000-4-5:2014, IEC 61000-4-6:2013 IEC 61000-4-8 :2009, IEC 61000-4-11:2004 |
| Shock | IEC 60068-2-27 |
| Drop | IEC 60068-2-32 (ISTA Test Procedure 2A) |
| Vibration | IEC 60068-2-64 |
| RoHS | Lead (Pb) Free |
| MTBF | 300000 hrs (25°C) / 34,2466 years (25°C) |
| IP Protection | IP40 IEC/EN60529 |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| ES-I08G2-MU | 10006460 | INDATECH NETLANCE – Unmanaged Industrial PoE/PoE+ Ethernet Switch, 8x 10/100/1000 BaseT(X) PoE/PoE+, Metal housing, IP40, Redundante with Reverse Polarity Protection, 12~52VDC / 48~57VDC PoE/PoE+ | |

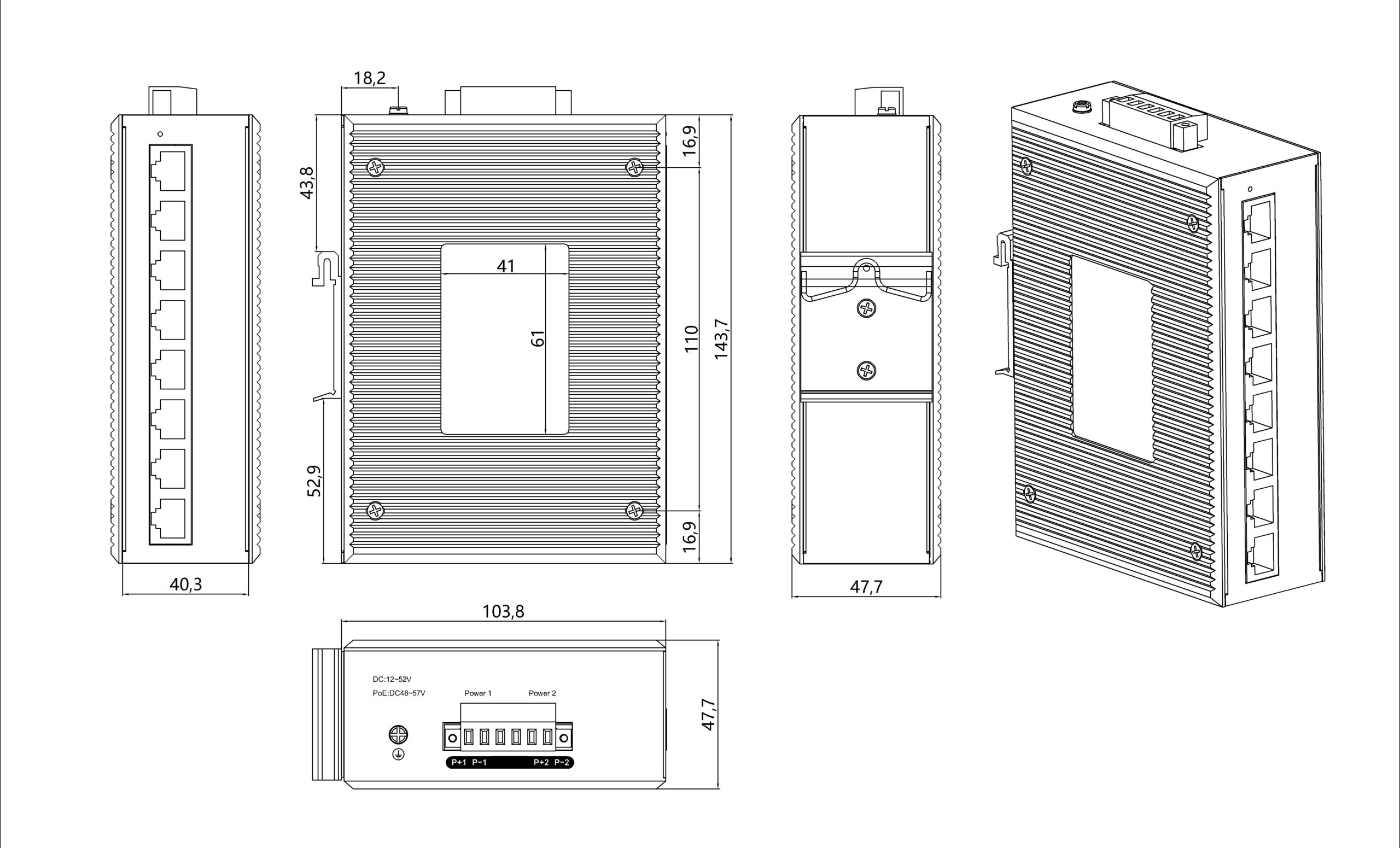

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-I08G2-MUP | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-I08G2-MUP manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-I08G2-MUP HIG | TBD | TBD | TBD | |
