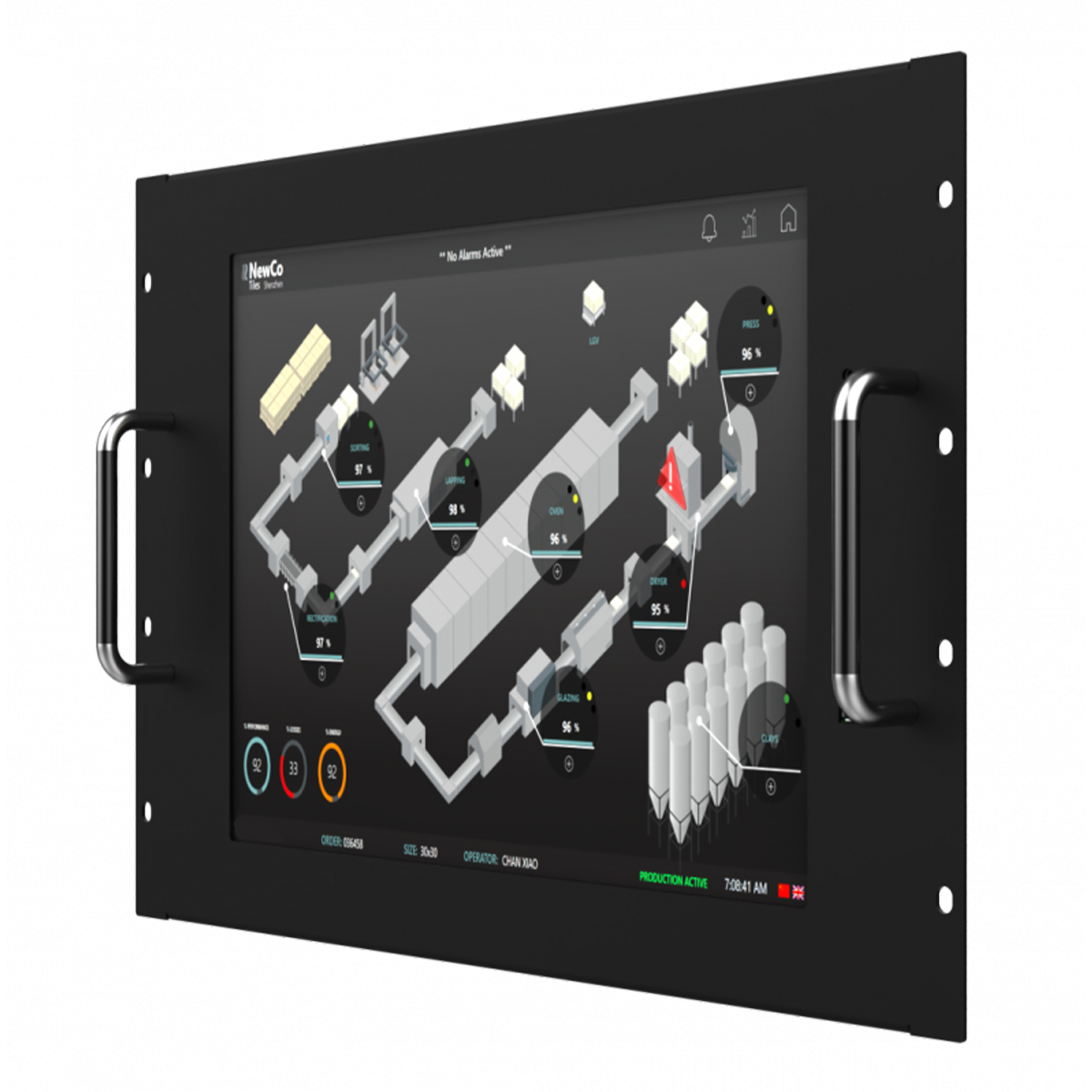

IMR-150X
15” Industrial RACK Mount Monitor (4:3)
Resolution: XGA (1024×768)
Customizable front panel:
“Steel Rack Mount” (Standard)
“Aluminum True Flat”
Touch or w/o -Touch version
with USB or RS232 driver interface connection
Two Power options available:
18 ~ 36V, VDC or 80 ~ 265V, VAC
Rack Mount
INDATECH Industrial Rack Monitor
Specifiche tecniche
| DISPLAY | |
| Size: | 15” |
| Resolution: | XGA (1024×768) |
| Aspect Ratio: | 4:3 |
| Backlight: | Led |
| Bright and Contrast: | 400 cd/mq 700:1 |
| Colors: | 16 M |
| View Angle: | 160° – 140° |
| FRONT PANEL | |
| Thickness: | 6 mm |
| Graphic | Black painted steel |
| Front Panel Type | RACK mount
Aluminium True Flat (Optional) |
| TOUCH SCREEN | (Only with Touch Version) |
| Glass Thickness: | 3 mm |
| Technology: | Resistive 5 wires
Projective Capacitive Multitouch 10 points (Optional with “True Flat”) |
| Connection Type: | USB 2.0 or RS232 |

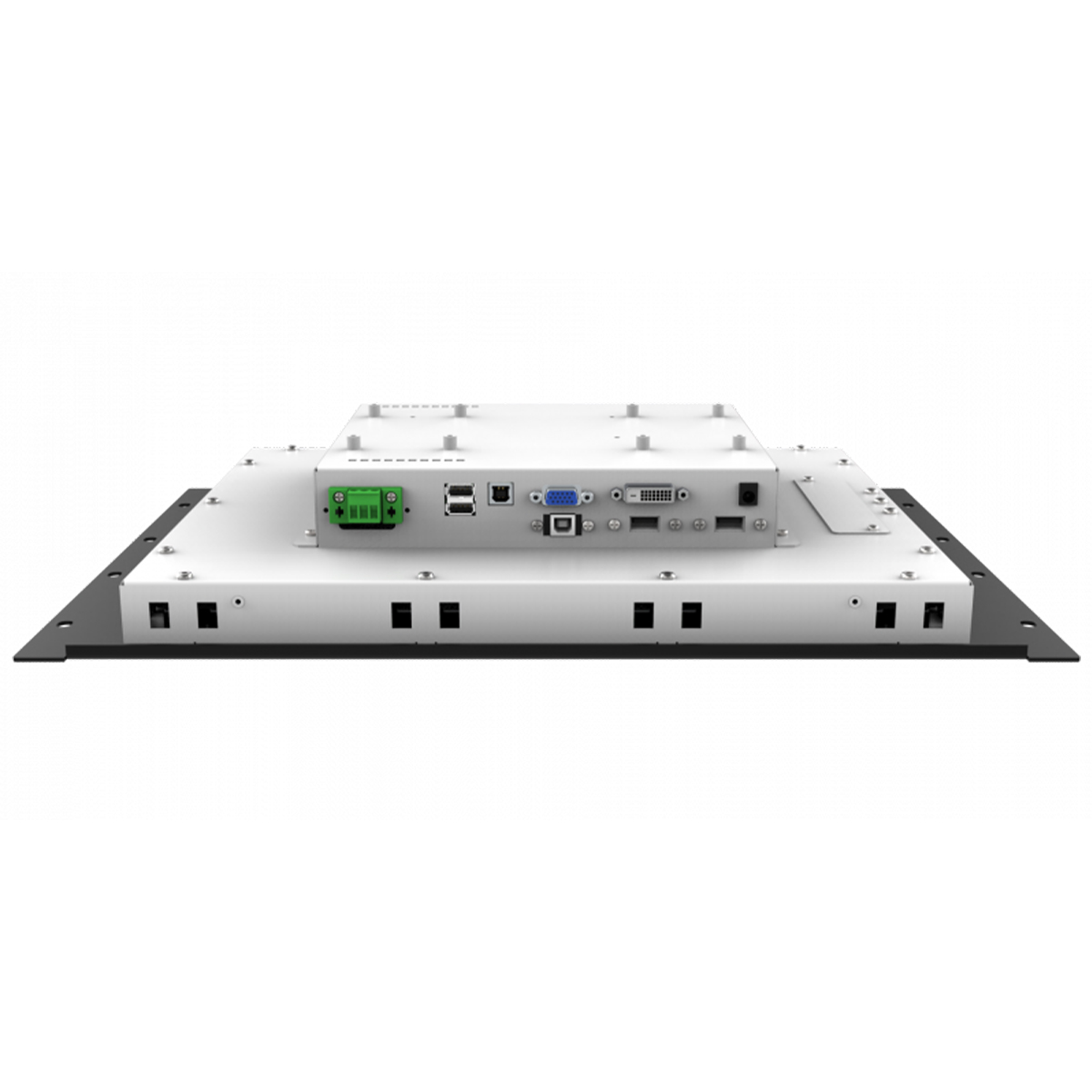

| I/O INTERFACE | |
| Video Input: | 1x DVI-I 1x VGA (D_SUB 15pin) |
| USB ports: | 1x USB 2.0 for front panel USB Connections
1x USB 2.0 or RS232 for Touch Driver |
| POWER | |
| Power in: | 18 ~ 36V, VDC Version
80 ~ 265V, VAC Version |
| Max Power: | 12W max |

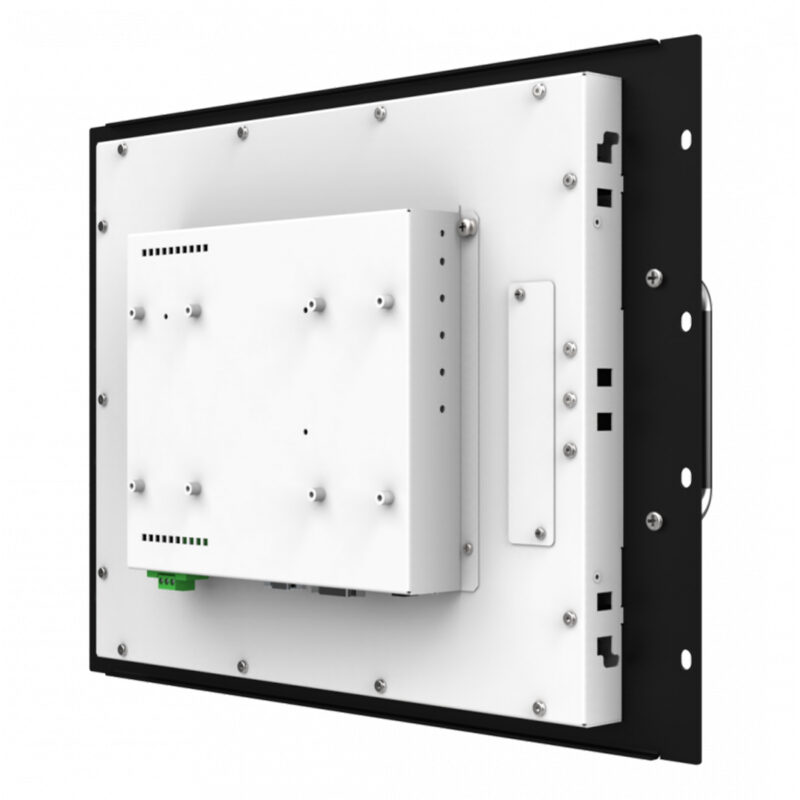

| MECHANICAL | |
| Material: | Steel |
| IP Protection: | IP40 |
| Dimensions: | (W)360,7x(D)283,7x(H)72mm |
| Weight: | 5 Kg |
| Mounting: | Rack Mount |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 50°C |
| Storage temp.: | 20°C to 70°C |
| Humidity: | 40% to 60% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, LVD |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| IMR-150X | |||
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMR-150X | TBD | 2023-06-09 | 290 KB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMR-150X manual | TBD | 2023-06-09 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMR-150X HIG | TBD | 2023-06-09 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMR-150X drivers | TBD | 2023-06-09 | 4.3 GB | |
