NEW
IndustriaLED IP54 M12-M
INDATECH Industrial Polycarbonate Led bars
82, 250, 500, 1000 and 2000 mm Lighting lenght
Protection class IP54
24V DC
4500K Pure White
M12 Male connector
-25°C ~ +60°C
INDATECH Industrial Polycarbonate Led bars
Specifiche tecniche
| LIGHTING FEATURES |
LIGHTING LENGHT | 82mm | 250mm | 500mm | 1000mm | 2000mm |
| PRODUCT TYPE | Industrial Lighting | |||||
| INDUSTRIAL LIGHTING TYPE | Led light tube with M12 Connectors | |||||
| TUBE DIAMETR | Ø24.8mm | |||||
| LIGHTCOLOUR | 4500K Pure White | |||||
| RATED VOLTAGE | 24V DC | |||||
| RATED POWER | 2W | 4W | 8W | 15W | 30W | |
| LIMINUOS FLUX | 150lm | 450lm | 900lm | 1800lm | 3600lm | |
| MATERIALS | Plastic + Alluminium | |||||
| PROTECTION CLASS | IP54 | |||||
| OPERATING TEMPERATURE | -25°C ~ +60°C | |||||
| CONNECTOR FEAURES |
CONNECTOR TYPE | M12 to panel | ||||
| MOUNTING TYPE | Frontal | |||||
| CONTACT TYPE | Male | |||||
| NUMBER OF CONTACTS | 4 | |||||
| NUMBER OF CONTACT CONNECTED | 2 | |||||
| HAUSING MATERIAL | Brass+Nickel Plate | |||||
| STRUCTURAL FEATURES |
OVERALL LENGTH | 121mm | 287mm | 549mm | 1049mm | 2049mm |
| MOUNTING TYPE | Metal Clip + Magnetic Bars | |||||
| MATERIAL | POLYCARBONATE | |||||
Codici di ordinazione
| LED | |||
| SIZE | ORDER CODE | PART NUMBER | DESCRIPTION |
| 82 mm | 10006703 | IND-I54-008-N45K-XXX-M012S-CMC-VFI-024-P | Barra Led, L=82mm, Flusso luminoso 150Im, IP54, 24v, 2W, ø19.4mm, c/ attacco M12 maschio, Montaggio c/ Clip Mettallico + Barre Magnetiche, Dim 121mm |
| 250 mm | 10006704 | IND-I54-025-N45K-XXX-M012S-CMC-VFI-024-P | Barra Led, L=250mm, Flusso luminoso 450Im, IP54, 24v, 4W, ø19.4mm, c/ attacco M12 maschio, Montaggio c/ Clip Mettallico + Barre Magnetiche, Dim 287mm |
| 500 mm | 10006705 | IND-I54-050-N45K-XXX-M012S-CMC-VFI-024-P | Barra Led, L=500mm, Flusso luminoso 900Im, IP54, 24v, 8W, ø19.4mm, c/ attacco M12 maschio, Montaggio c/ Clip Mettallico + Barre Magnetiche, Dim 549mm |
| 1000 mm | 10006706 | IND-I54-100-N45K-XXX-M012S-CMC-VFI-024-P | Barra Led, L=1000mm, Flusso luminoso 1800Im, IP54, 24v, 15W, ø19.4mm, c/ attacco M12 maschio, Montaggio c/ Clip Mettallico + Barre Magnetiche, Dim 1049mm |
| 2000 mm | 10006738 | IND-I54-200-N45K-XXX-M012S-CMC-VFI-024-P | Barra Led, L=2000mm, Flusso luminoso 1800Im, IP54, 24v, 72W, ø19.4mm, c/ attacco M12 maschio, Montaggio c/ Clip Mettallico + Barre Magnetiche, Dim 2049mm |

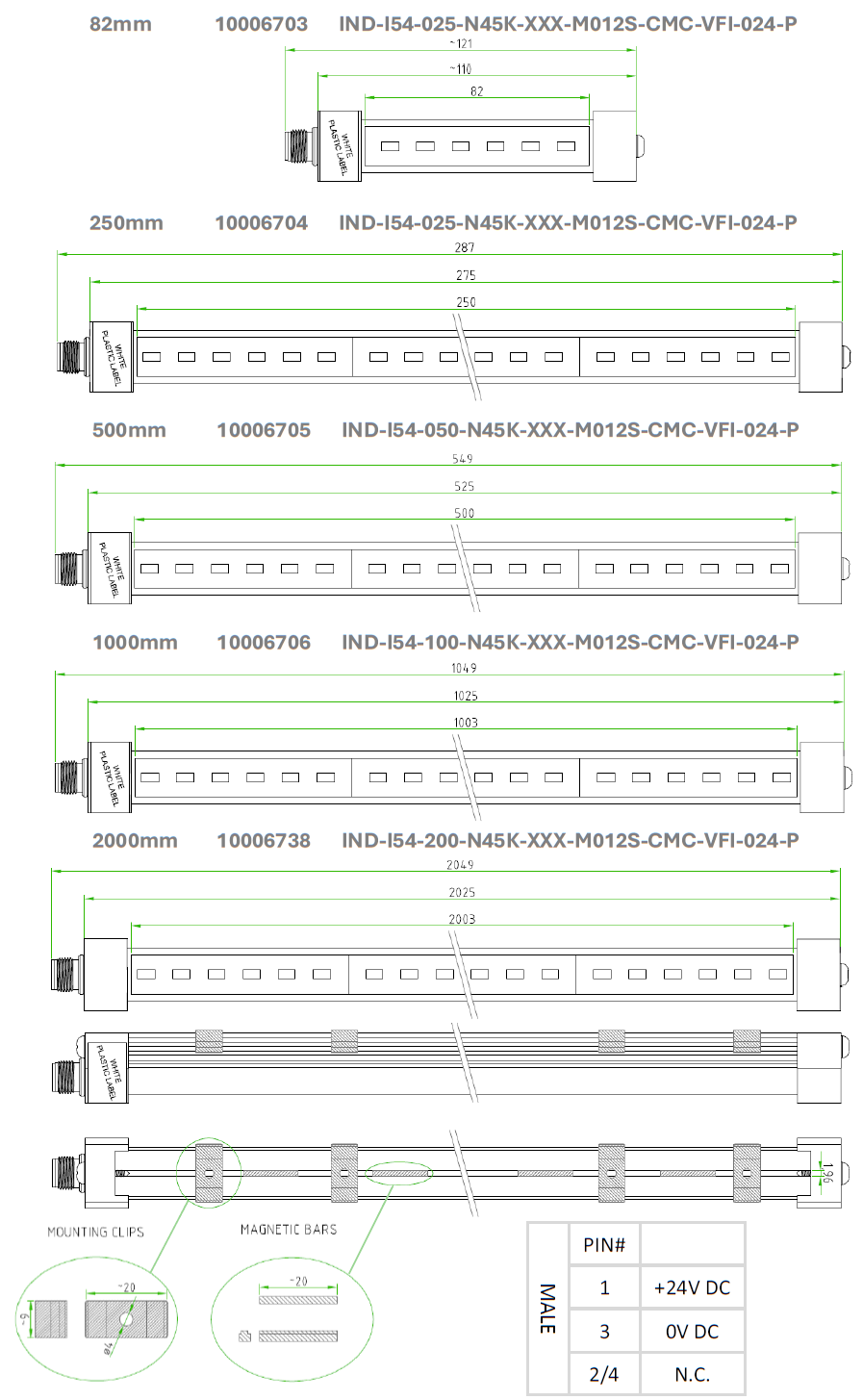

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| Industrial LED IP54 M12-M | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| Industrial LED IP54 M12-M manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| Industrial LED IP54 M12-M HIG | TBD | TBD | TBD | |
