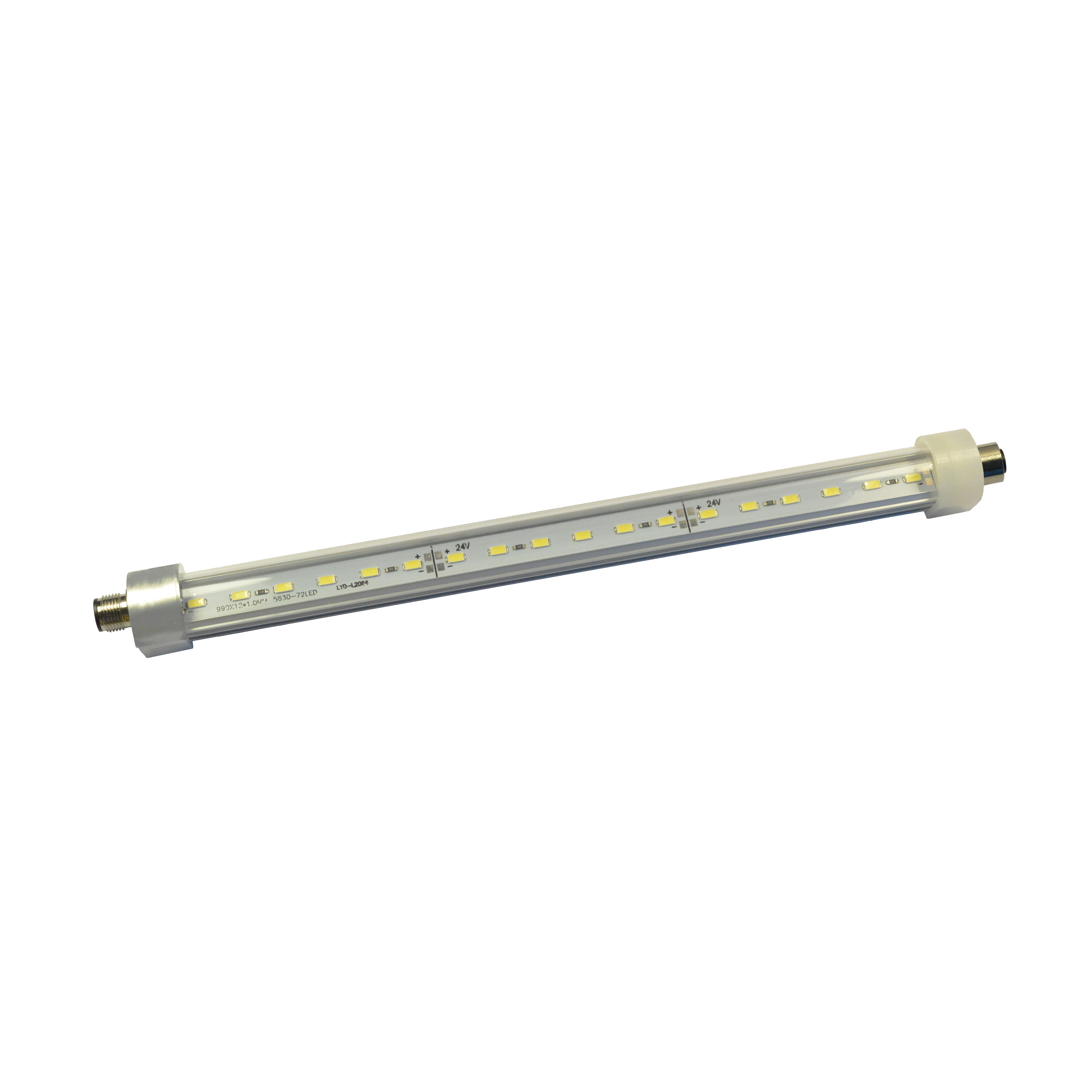

IndustriaLED IP54 M12-MF

INDATECH Industrial Polycarbonate Led bars

250, 500, 1000 and 2000 mm Lighting lenght

Protection class IP54

24V DC

4500K Pure White

M12 Male + M12 Female for Daisy Chain

-25°C ~ +60°C

Categoria: Barre IP54 Tag: 24VDC IP54

INDATECH Industrial Polycarbonate Led bars with Daisy Chain

Specifiche tecniche

LIGHTING FEATURES	LIGHTING LENGHT	250mm	500mm	1000mm	2000mm
	PRODUCT TYPE	Industrial Lighting
	INDUSTRIAL LIGHTING TYPE	Led light tube with M12 Connectors
	TUBE DIAMETR	Ø24.8mm
	LIGHTCOLOUR	4500K Pure White
	RATED VOLTAGE	24V DC
	RATED POWER	4W	8W	15W	30W
	LIMINUOS FLUX	450lm	900lm	1800lm	3600lm
	MATERIALS	Plastic + Alluminium
	PROTECTION CLASS	IP54
	OPERATING TEMPERATURE	-25°C ~ +60°C
CONNECTOR FEAURES	CONNECTOR TYPE	M12 to panel
	MOUNTING TYPE	Frontal
	CONTACT TYPE	Male
	NUMBER OF CONTACTS	4
	NUMBER OF CONTACT CONNECTED	2
	HAUSING MATERIAL	Brass+Nickel Plate

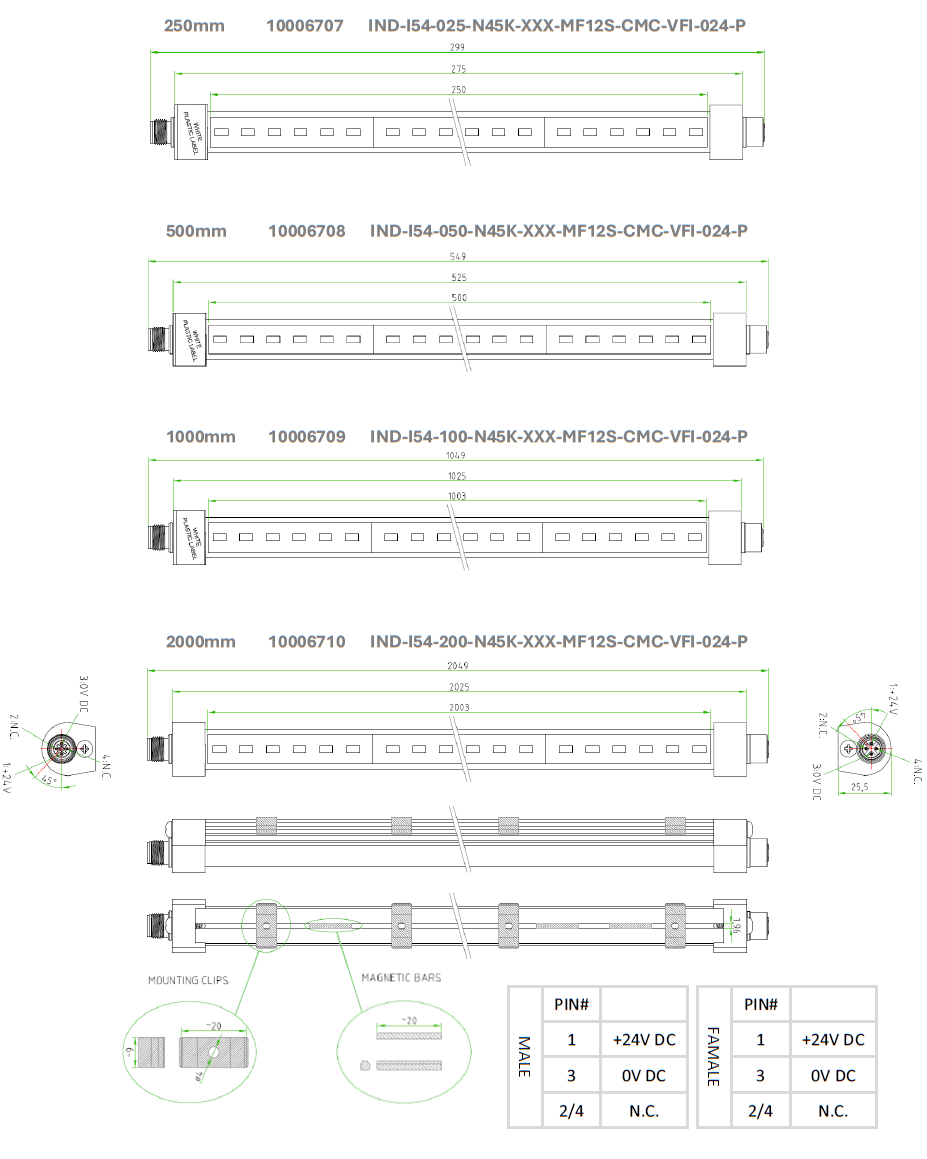

STRUCTURAL FEATURES	OVERALL LENGTH	287mm	549mm	1049mm	2049mm
	MOUNTING TYPE	Metal Clip + Magnetic Bars
	MATERIAL	POLYCARBONATE

LED
SIZE	ORDER CODE	PART NUMBER	DESCRIPTION
250 mm	10006707	IND-I54-025-N45K-XXX-MF12S-CMC-VFI-024-P	Barra Led, L=250mm, Flusso luminoso 450Im, IP67, 24V, 4W, ø24.8mm, c/ attacco M12 femmina + M12 maschio, Montaggio c/ Clip Mettallico + Barre Magnetiche, Dim 299mm
500 mm	10006708	IND-I54-050-N45K-XXX-MF12S-CMC-VFI-024-P	Barra Led, L=500mm, Flusso luminoso 900Im, IP67, 24V, 8W, ø24.8mm, c/ attacco M12 femmina + M12 maschio, Montaggio c/ Clip Mettallico + Barre Magnetiche, Dim 549mm
1000 mm	10006709	IND-I54-100-N45K-XXX-MF12S-CMC-VFI-024-P	Barra Led, L=1000mm, Flusso luminoso 1800Im, IP67, 24V, 15W, ø24.8mm, c/ attacco M12 femmina + M12 maschio, Montaggio c/ Clip Mettallico + Barre Magnetiche, Dim 1049mm
2000 mm	10006710	IND-I54-200-N45K-XXX-MF12S-CMC-VFI-024-P	Barra Led, L=2000mm, Flusso luminoso 3600Im, IP67, 24V, 30W, ø24.8mm, c/ attacco M12 femmina + M12 maschio, Montaggio c/ Clip Mettallico + Barre Magnetiche, Dim 2049mm

HARDWARE INSTALLATION GUIDE
NAME	VERSION	TIME	SIZE	DOWNLOAD
Industrial LED IP54 M12-MF HIG	TBD	TBD	TBD
