JOLLY 11G
Intel® Tiger lake-UP3 SoC Processor
Up to 64GB RAM

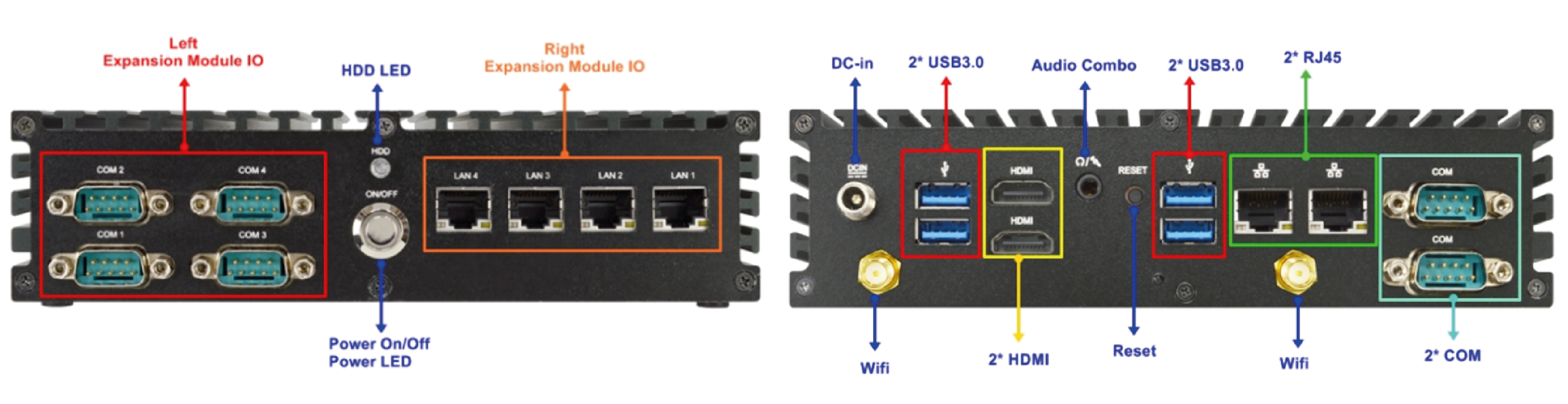

Multiple variants of front panel I/O available (up to 8x GbE / up to 8x COM / up to 32bit GPIO / + 8x USB3.0)
WallMount + DIN Rail kit
Power IN +12 – 24VDC
2x Intel® Gigabit Ethernet LAN
2x 4K Video interface (HDMI)
INDATECH Industrial IPC JOLLY 11G
Specifiche tecniche
| MAINBOARD | |
| CPU: | 11th Gen Tiger Lake – UP3 ULV CPU
Celeron 6305E – 2 Core /2 Tread 1,8GHz, 15W |
| MEMORY | |
| Capacity: | up to 64GB |
| Frequency: | 3200 MHz |
| Type: | 2x SO-DIMM DDR4 |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2: | 1x M.2 M-Key (2242/2280) PCIe x4 (Gen 4) NVMe |
| Storage Bay: | 1x Internal 2.5” SSD Bay |
| I/O INTERFACE | |
| Serial ports: | 2x COM RS232
Up to 8x RS232/422/485 (refer to the section “Available versions”) |
| USB ports: | 2x USB 2.0 + 2x USB 3.0 + 1x USB 3.2 Gen2 Type-C (DP)
+ 8x USB 3.0 (refer to the section “Available versions”) |
| M2: | 1x M2 E-Key (2230) for WIFI CNVi
1x M2 B-Key (3042/3052) for 4G/5G |
| AUDIO: | 1x Line-out/MIC-in Jack |
| VIDEO | |
| GPU: | Intel® Iris® Xe Graphics |
| Interface: | 1x HDMI 2.0 (Up to 4096×2160 @60Hz))
2x DP 1.4 / Type-C (Up to 4096×2304 @60Hz) |
| ETHERNET | |
| LAN: | 1x Intel i219LM Gigabit LAN
1x Intel i225V 2.5 Gigabit LAN Up to 8x Intel i211AT Gigabit LAN (refer to the section “Available versions”) |
| POWER | |
| Power in: | 12 – 24V, DC-in (locking jack) |
| Max Power: | 20W max |
| Adapter: | AC_90~240V / DC_12V_5A/60W |
| MECHANICAL | |
| Material: | Lightweight aluminum alloy with extruded aluminum IO panel |
| Dimensions: | (W)185x(D)175x(H)60mm |
| Weight: | 2.6Kg |
| Mounting: | WallMount + DIN Rail |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 50°C |
| Storage temp.: | -20°C to 85°C |
| Humidity: | 10% to 90% RH @40°C, non-condensing |
| EMC: | CE, FCC, RoHS, LVD, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2, WMware ESXI 6.5 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| Available versions | |||

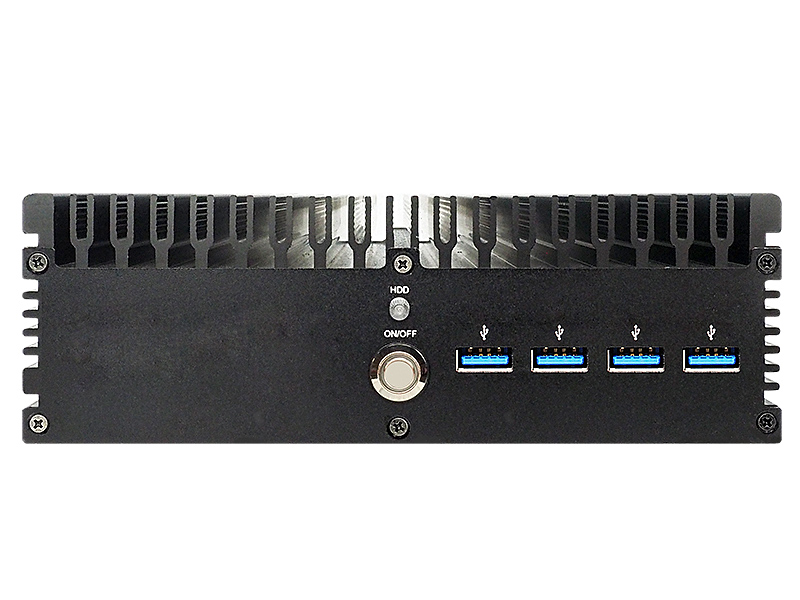

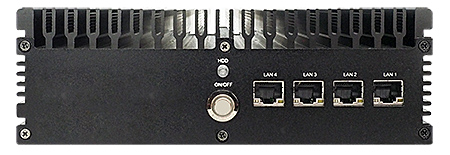

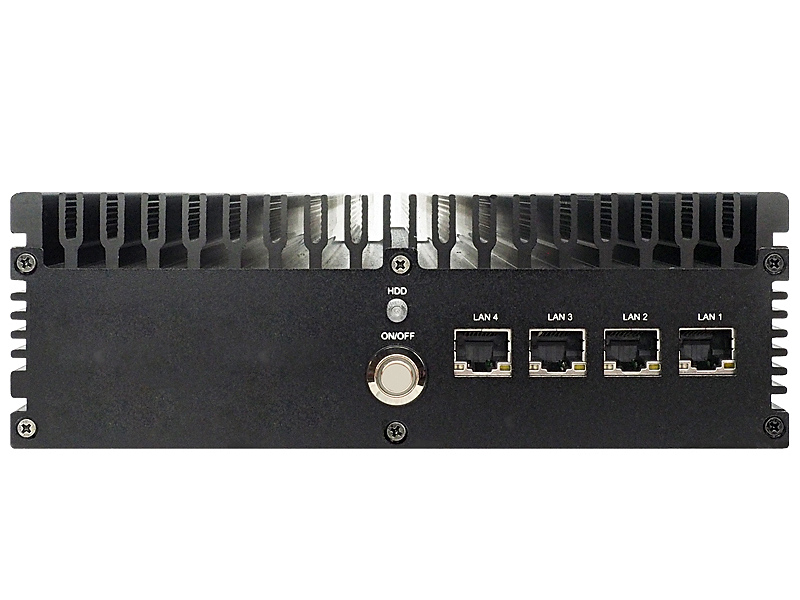

| JOLLY 11G – 02L-02C-00G-09U | JOLLY 11G – 06L-02C-00G-05U | ||
 |
 |
||

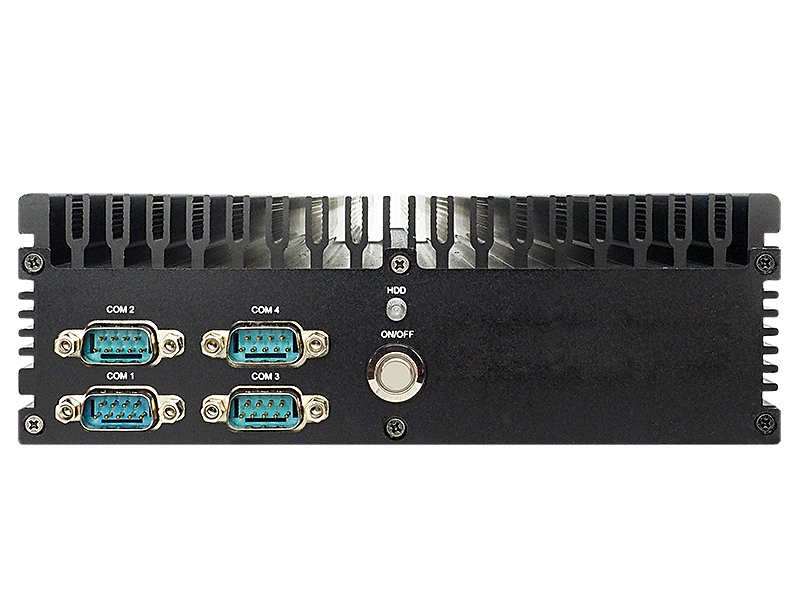

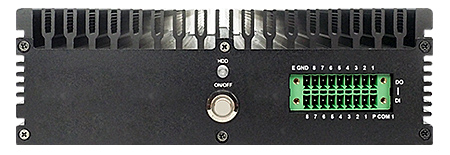

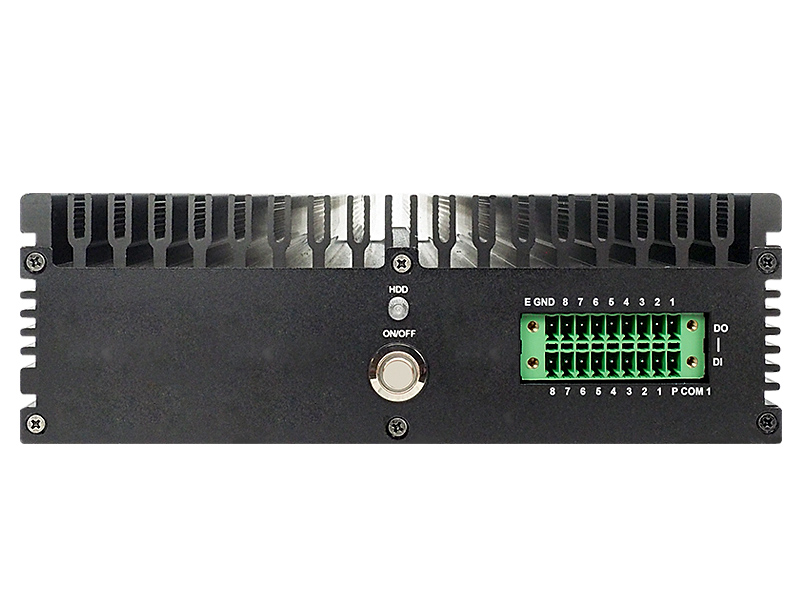

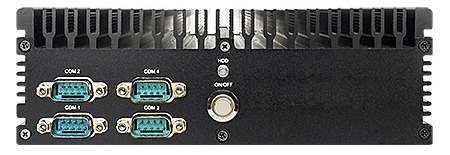

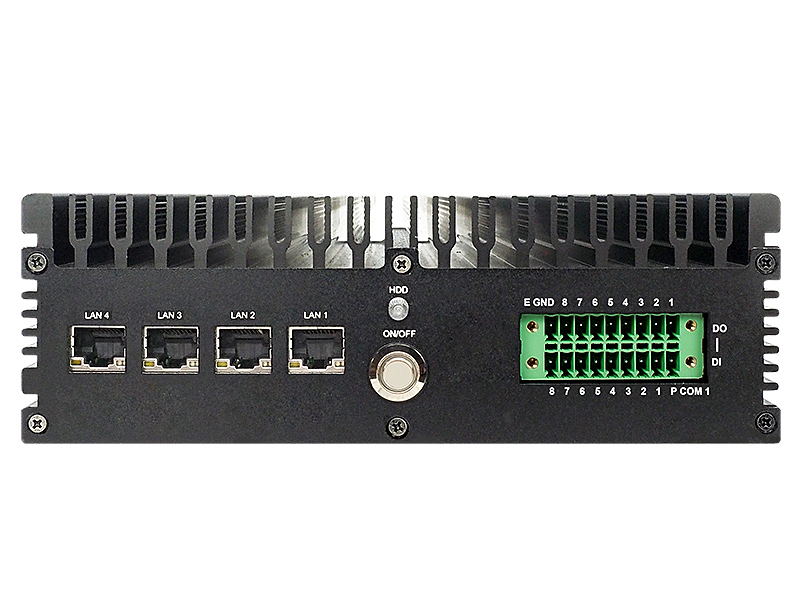

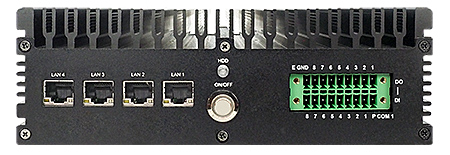

| JOLLY 11G – 02L-06C-00G-05U | JOLLY 11G – 02L-02C-16G-05U |
 |
 |

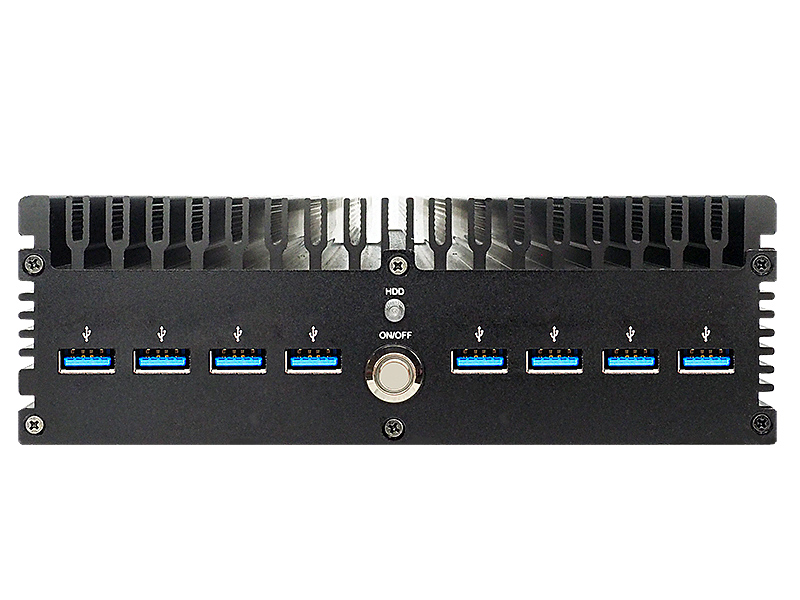

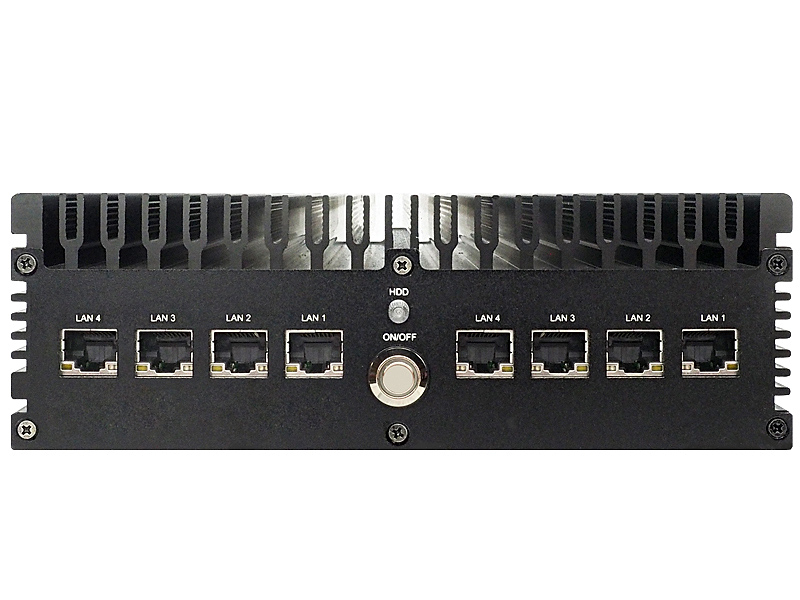

| JOLLY 11G – 02L-02C-00G-13U | JOLLY 11G – 10L-02C-00G-05U |
 |
 |

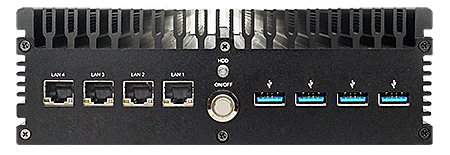

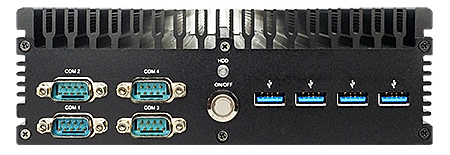

| JOLLY 11G – 02L-06C-00G-09U | JOLLY 11G – 06L-02C-00G-09U |
 |
 |

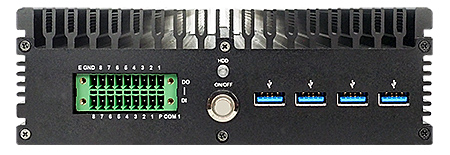

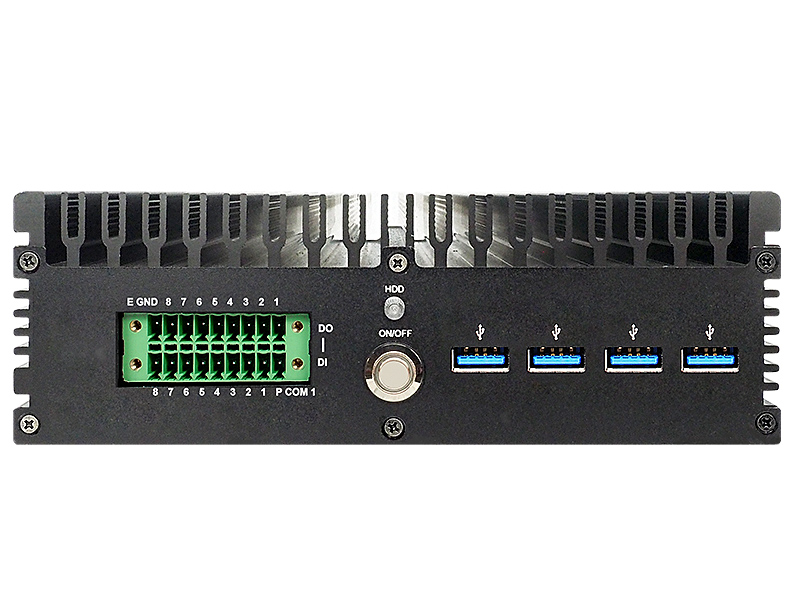

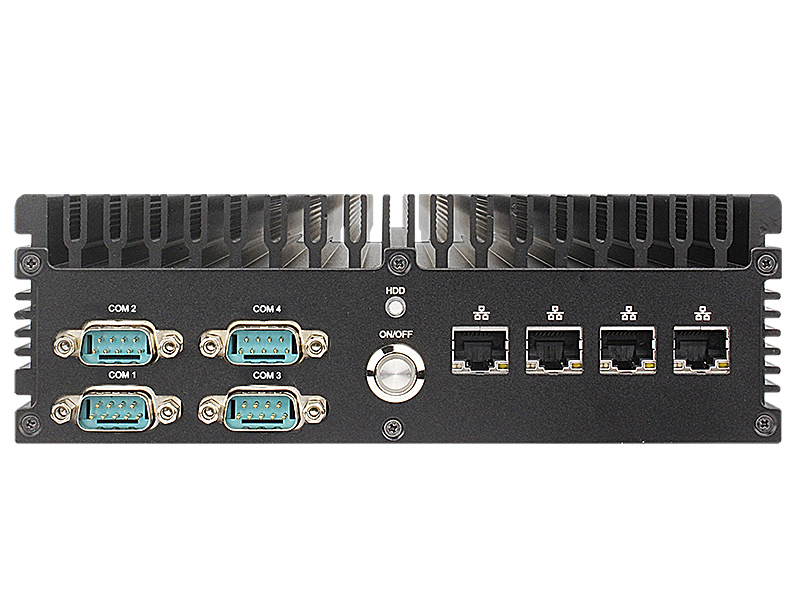

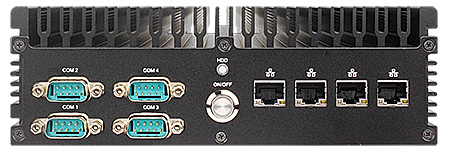

| JOLLY 11G – 06L-06C-00G-05U | JOLLY 11G – 02L-02C-16G-09U |
 |
 |

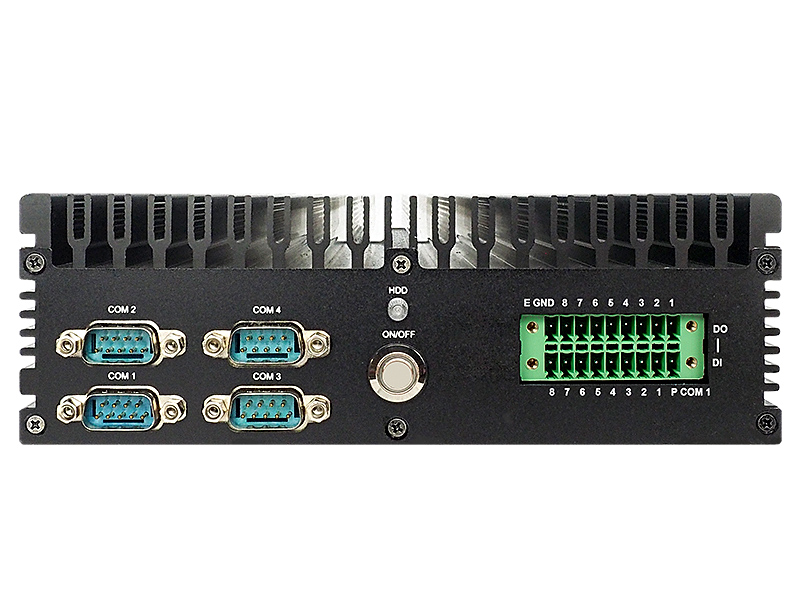

| JOLLY 11G – 02L-06C-16G-05U | JOLLY 11G – 06L-02C-16G-05U |
 |
 |

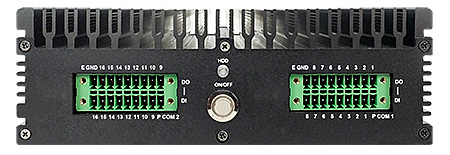

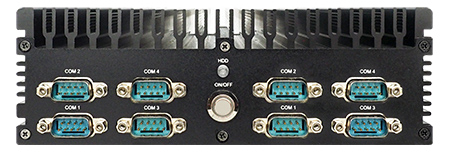

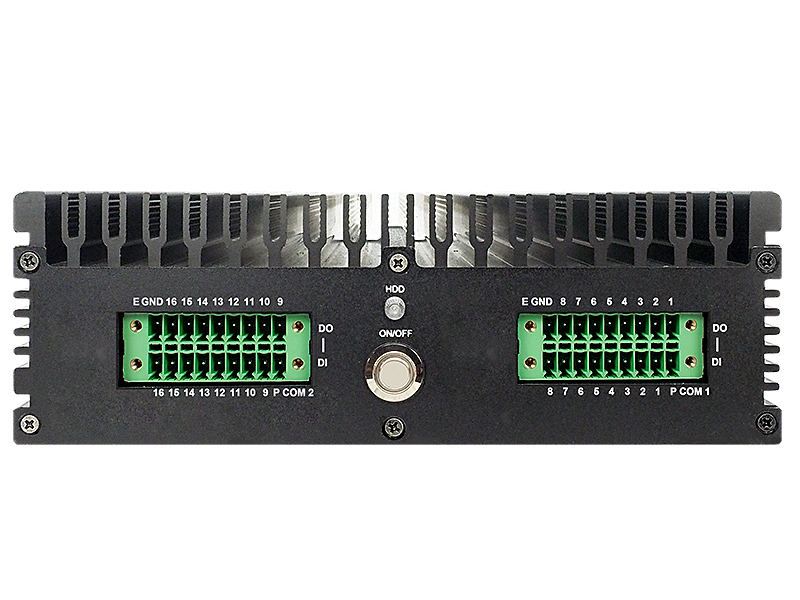

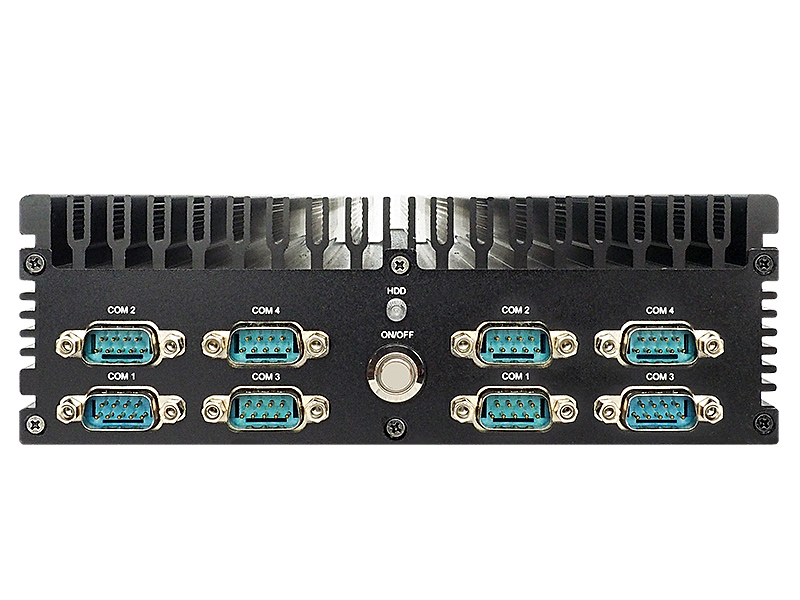

| JOLLY 11G – 02L-10C-00G-05U | JOLLY 11G – 02L-02C-32G-05U |
 |
 |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| JOLLY 11G | 1000xxxx | xxxx | xxxx |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| JOLLY 11G | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| JOLLY 11G manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| JOLLY 11G HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| JOLLY 11G drivers | TBD | TBD | TBD | |
