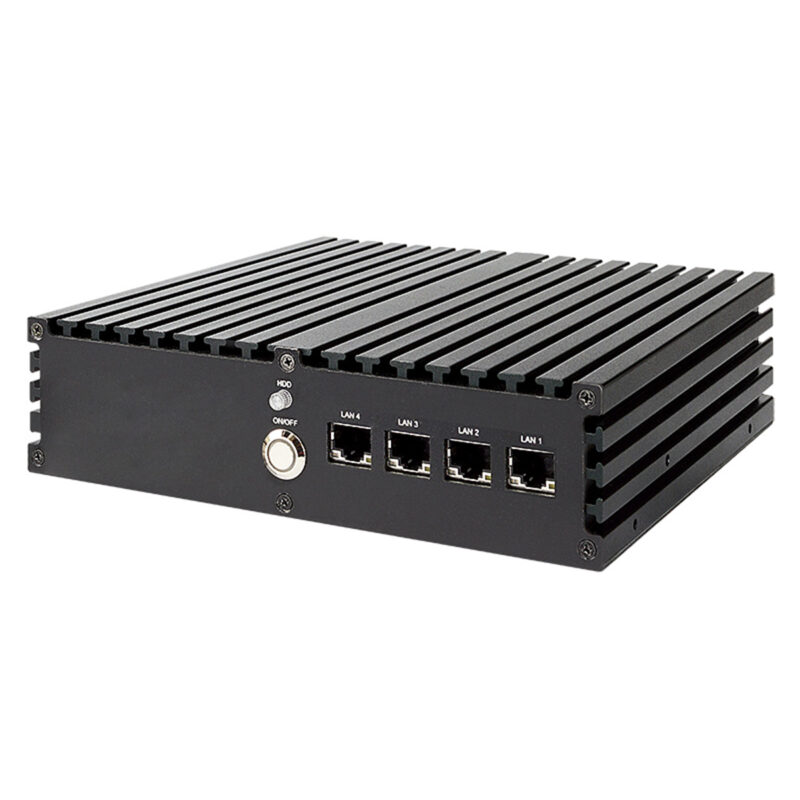

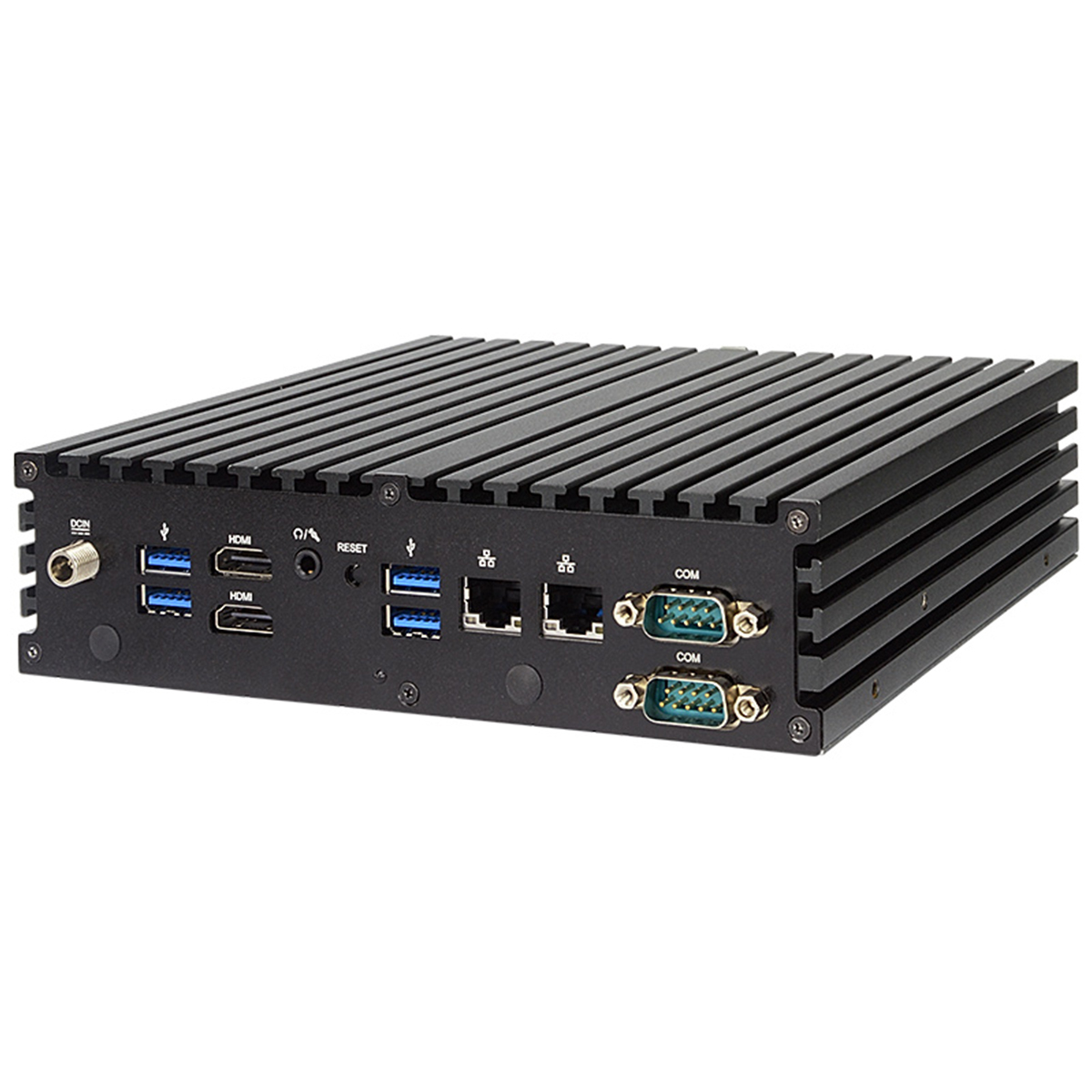

JOLLY J3455
Intel® Apollo Lake SoC Processor – J3455
8GB RAM

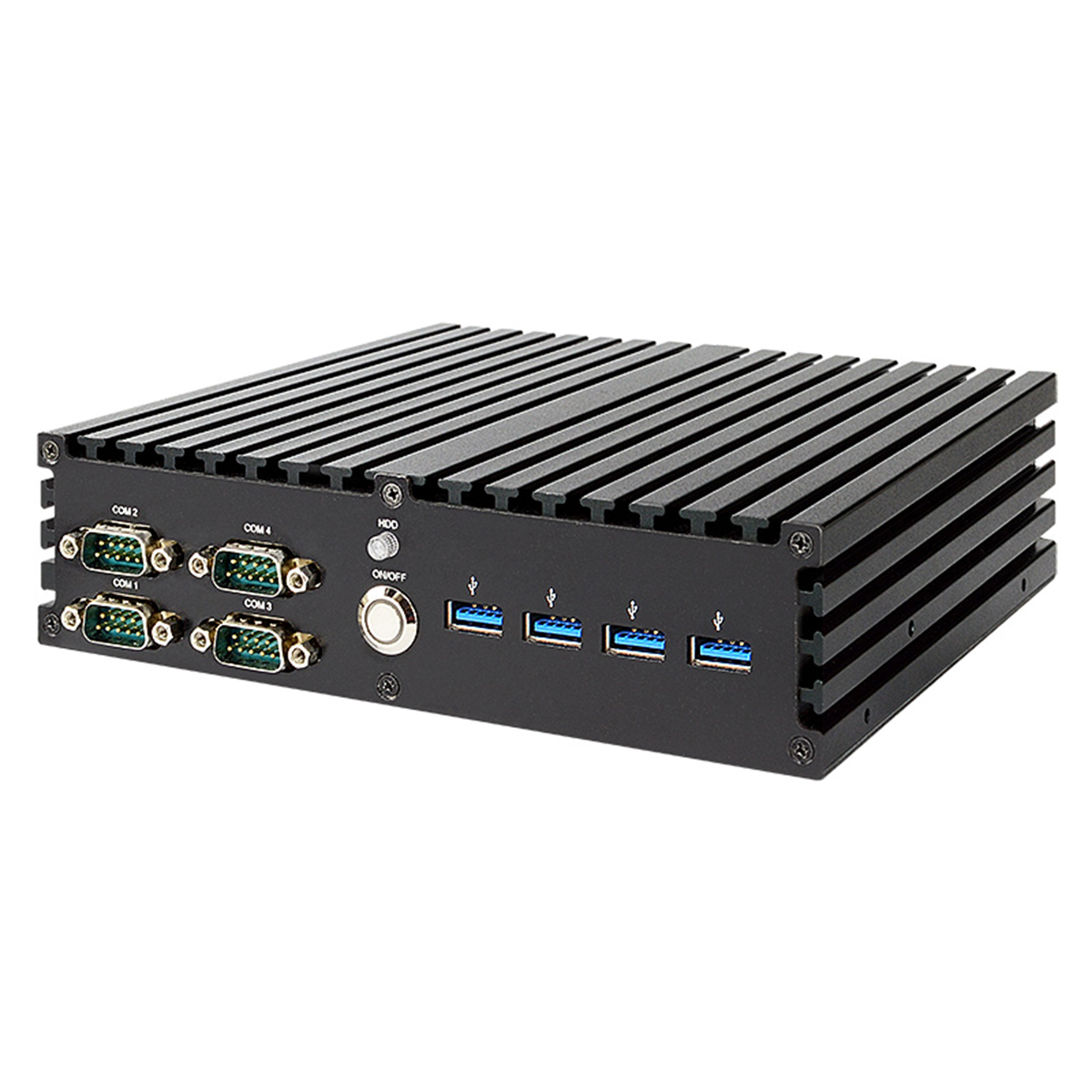

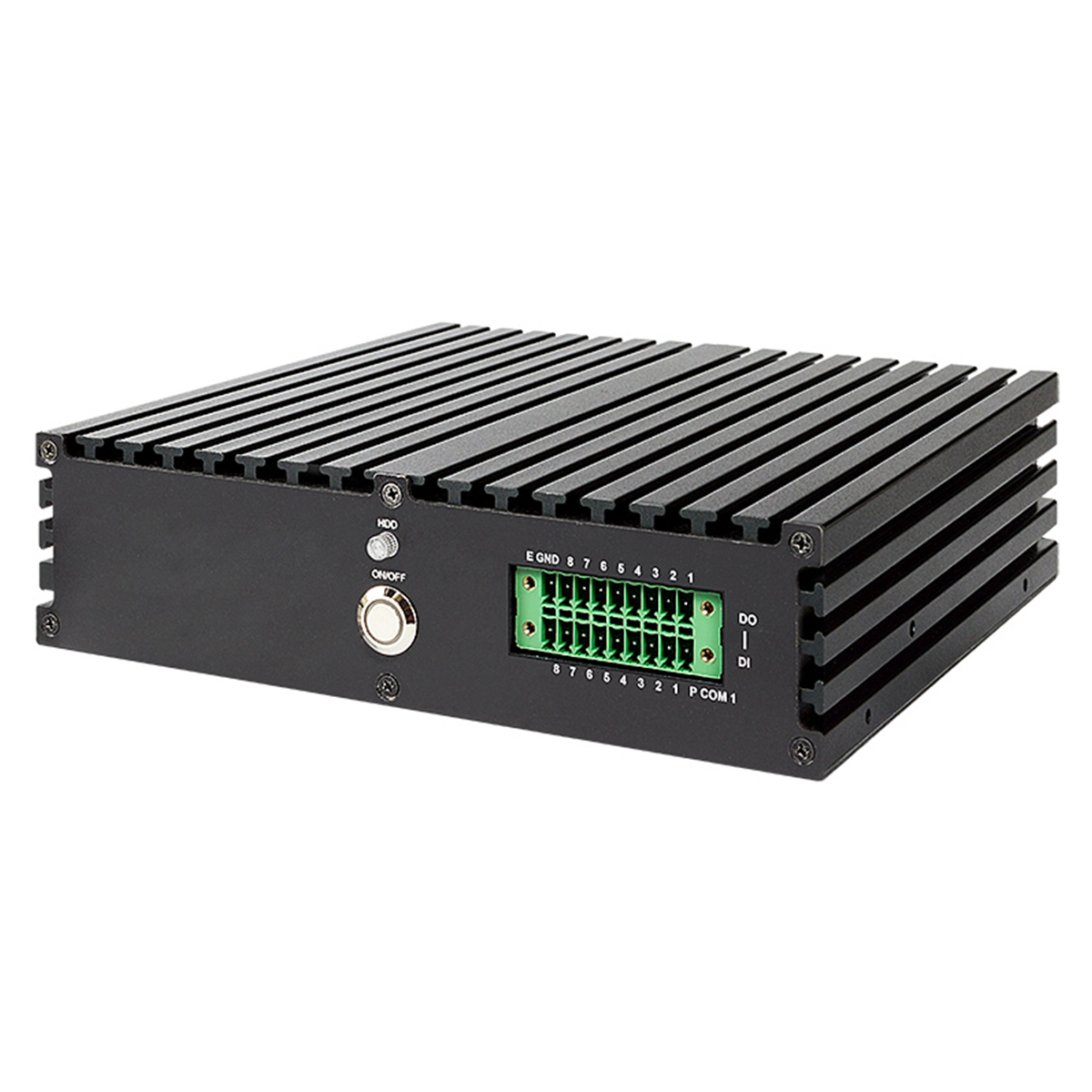

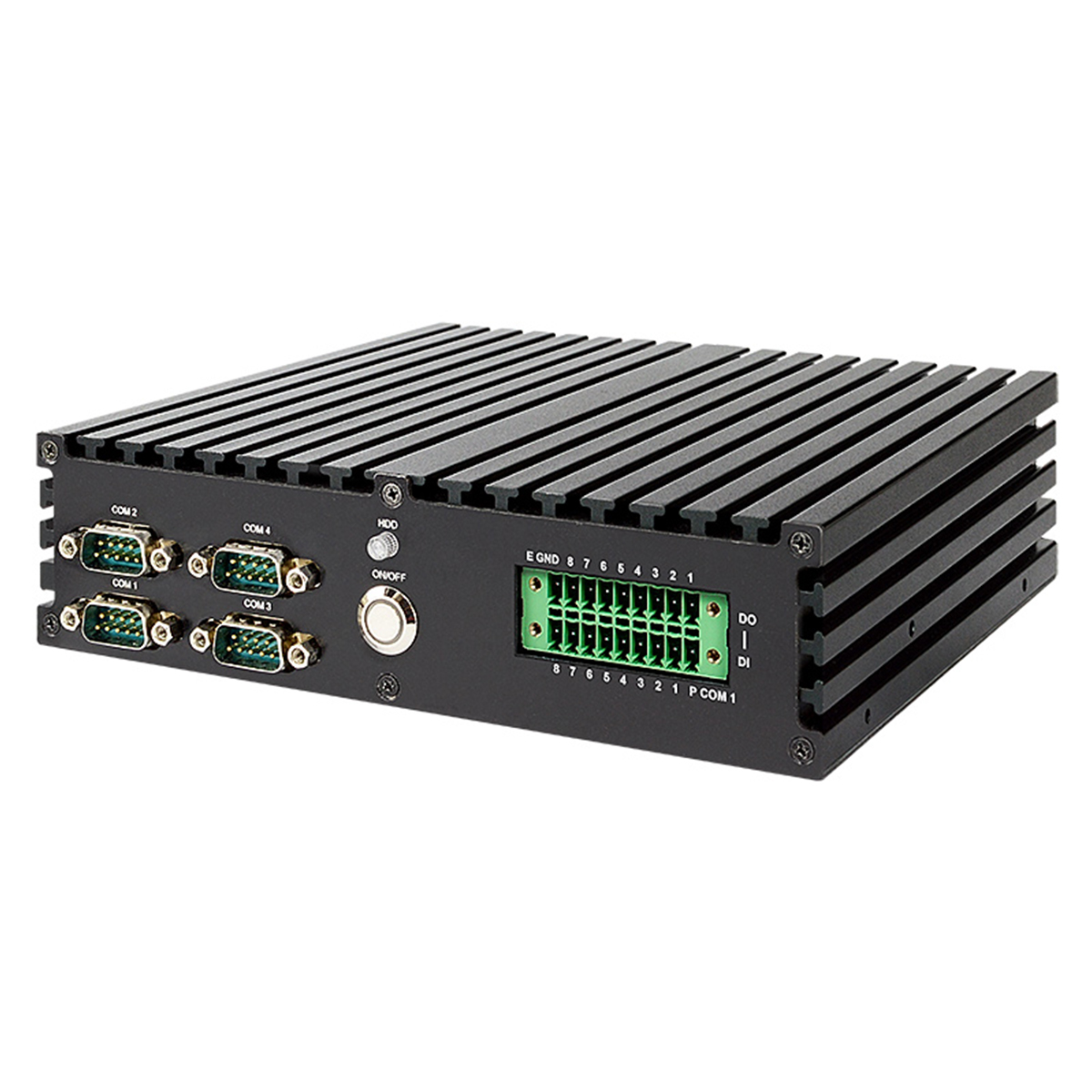

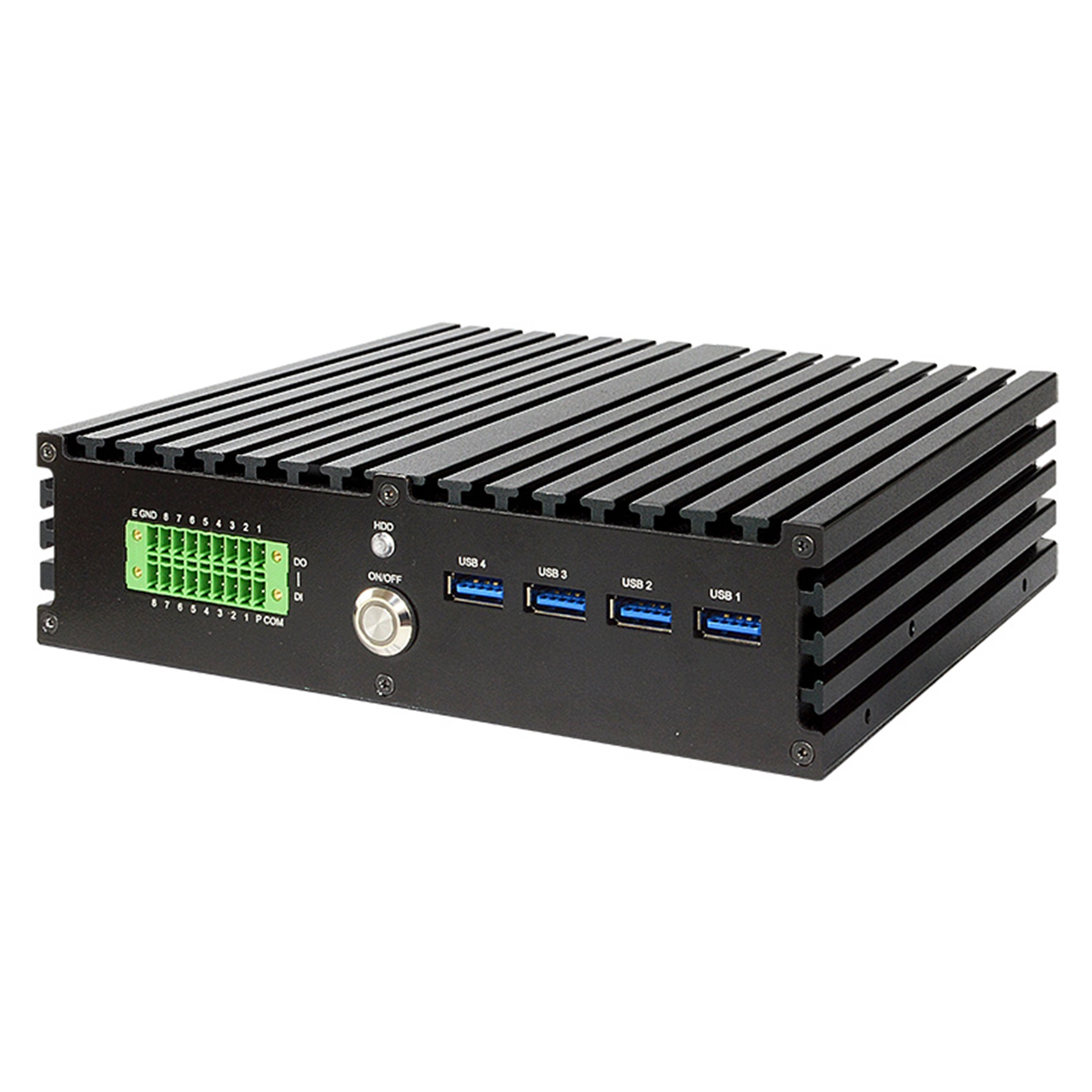

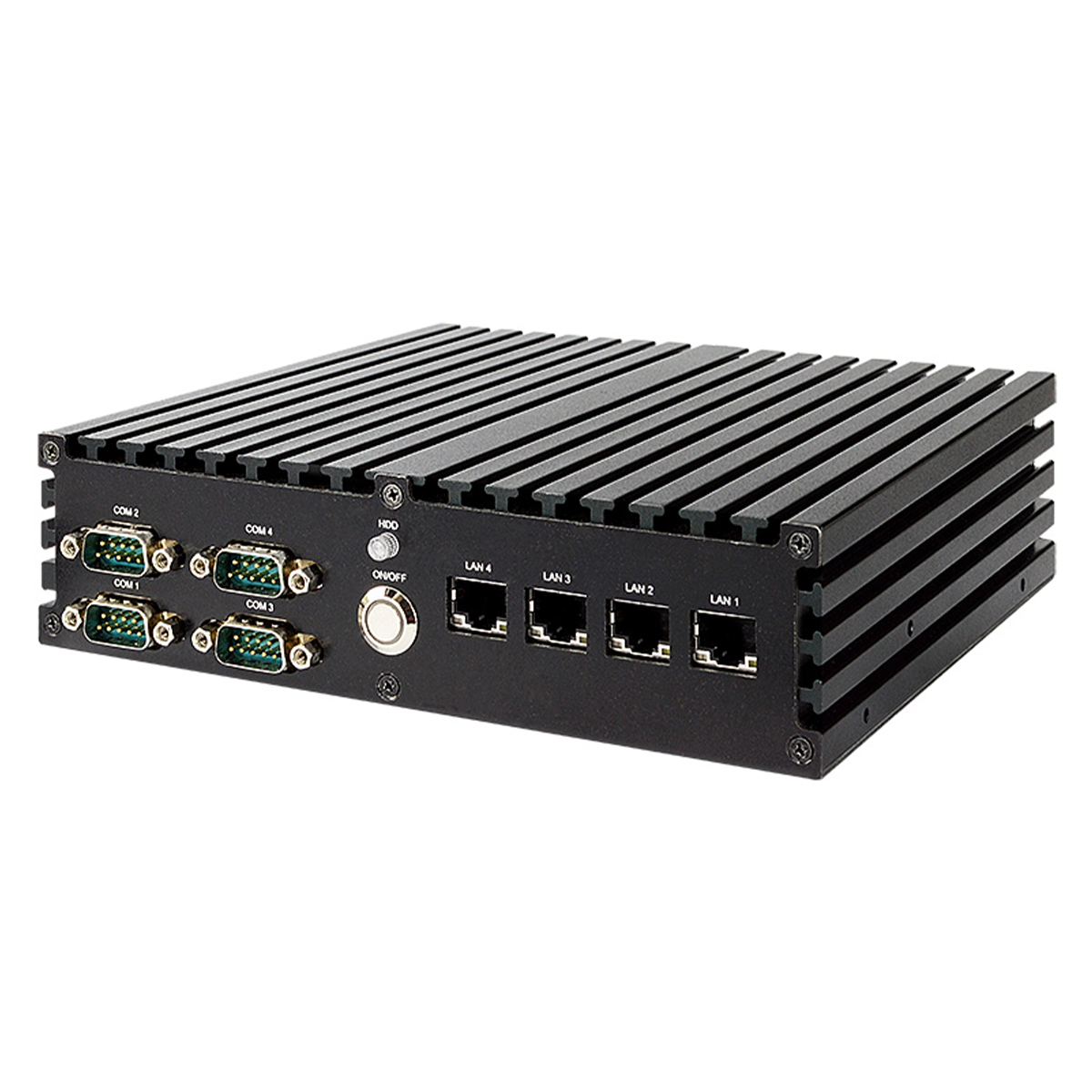

Multiple variants of front panel I/O available (up to 10x GbE / up to 8x COM / up to 32bit GPIO / + 4x USB3.0)
WallMount + DIN Rail
Power IN +12V
2x Intel® Gigabit Ethernet LAN
2x 4K Video interface (HDMI)
INDATECH Industrial PC JOLLY J3455
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Celeron J3455
(4C/4T) 1.5GHz-2.3GHz, 10W |
| MEMORY | |
| Capacity: | 8GB |
| Frequency: | 1866 MHz |
| Type: | 1x SO-DIMM DDR3L |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2: | 1x M.2 M-Key (2280) |
| Storage Bay: | 1x Internal 2.5” SSD Bay |
| I/O INTERFACE | |
| Serial ports: | 2x COM RS232 (default)
Up to 8x RS232/422/485 (refer to the section “Available versions) |
| USB ports: | 4x USB 3.0 (default)
+ 4x USB 3.0 (refer to the section “Available versions) |
| Mini-PCIe: | 2x Full size |
| AUDIO: | 1x Line-out/MIC-in Jack |
| VIDEO | |
| GPU: | Intel® HD Graphics |
| Interface: | 2x HDMI 1.4 (Up to 3840×2160 @30Hz) |
| ETHERNET | |
| LAN: | 2x Intel® i211AT Gigabit LAN (default)
Up to 8x i211AT Gigabit LAN (refer to the section “Available versions”) |
| POWER | |
| Power in: | 12V, DC-in (Locking Jack) |
| Max Power: | 20W max |
| Adapter: | AC_90~240V / DC_12V_5A/60W |
| MECHANICAL | |
| Material: | Lightweight aluminum alloy with extruded aluminum IO panel |
| Dimensions: | (W)185x(D)165x(H)48mm |
| Weight: | 2.2Kg |
| Mounting: | WallMount + DIN Rail |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 50°C |
| Storage temp.: | -20°C to 85°C |
| Humidity: | 10% to 90% RH @40°C, non-condensing |
| EMC: | CE, FCC, RoHS, LVD, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2, Android x86 8.1_rc2, WMware ESXI 6.5 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| Available versions | |||

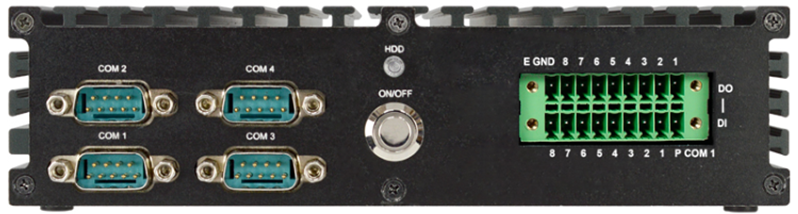

| JOLLY J3455 – 02L-02C-00G-4U | JOLLY J3455 – 02L-06C-16G-4U | ||
 |
 |
||

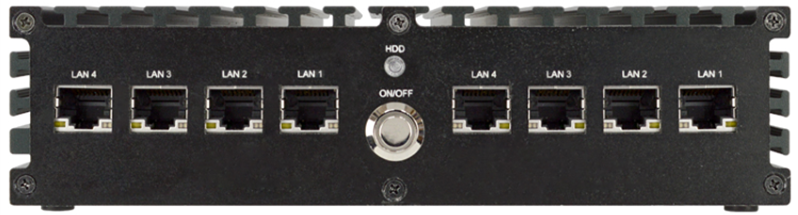

| JOLLY J3455 – 10L-02C-00G-4U | JOLLY J3455 – 02L-06C-00G-8U |
 |
 |
| JOLLY J3455 – 06L-02C-16G-4U | JOLLY J3455 – 02L-06C-00G-4U |
 |
 |

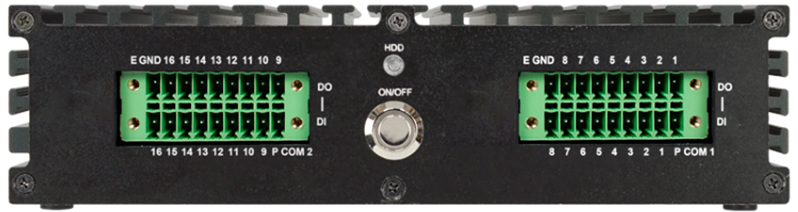

| JOLLY J3455 – 06L-02C-00G-8U | JOLLY J3455 – 02L-02C-32G-4U |
 |
 |

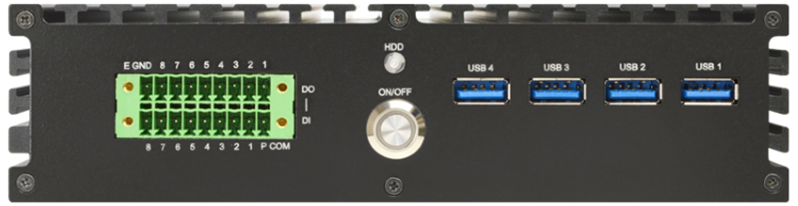

| JOLLY J3455 – 06L-06C-00G-4U | JOLLY J3455 – 02L-02C-16G-8U |
 |
 |
| JOLLY J3455 – 02L-10C-00G-4U | JOLLY J3455 – 06L-02C-00G-4U |
 |
 |

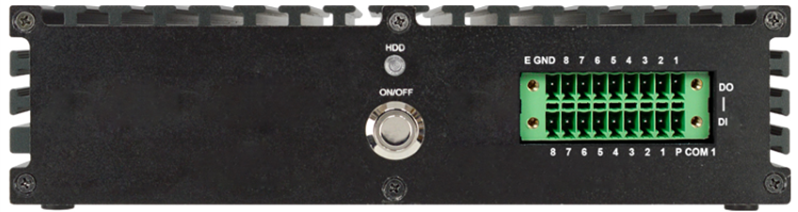

| JOLLY J3455 – 02L-02C-16G-4U | JOLLY J3455 – 02L-02C-00G-8U |
 |
 |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| JOLLY J3455 | 1000xxxx | xxxx | xxxx |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| JOLLY J3455 | v1.0 | 2023-06-01 | 1.59 MB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| JOLLY J3455 manual | v1.0 | 2023-06-01 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| JOLLY J3455 HIG | v1.0 | 2023-06-01 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| JOLLY J3455 drivers | v1.0 | 2023-06-01 | 4.3 GB | |
