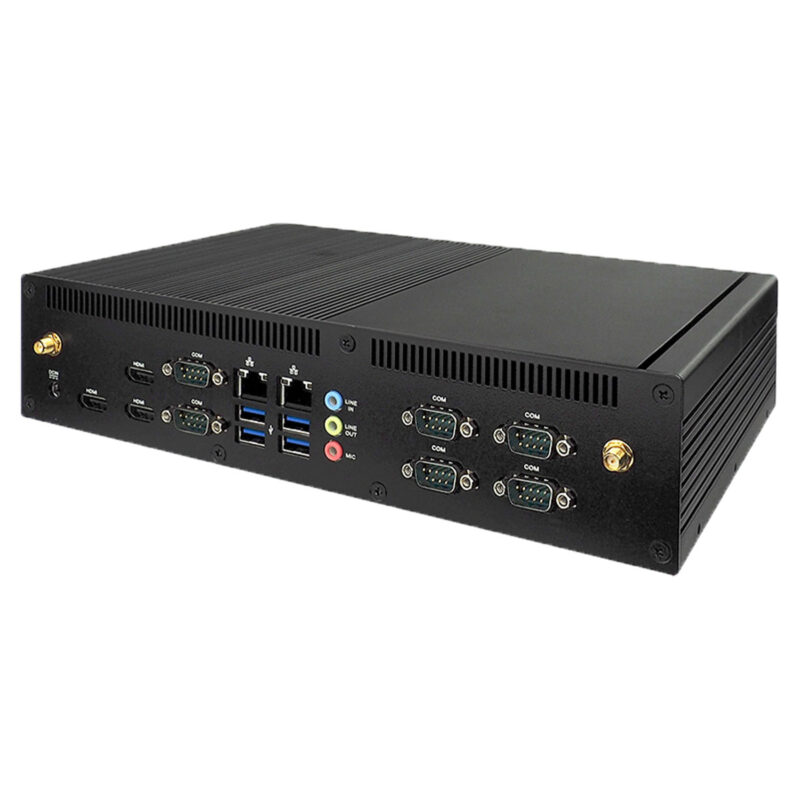

MP3
Intel® 6th & 7th Gen. i7/i5/i3 CPU 35W LGA 1151 — Q170 chipset
2x DDR4 2133 MHz up to 32 GB RAM
Extended power supply range from 9V to 24V
2x 2.5” SSD tray slots with RAID 0.1 support
2x LAN Intel® Gigabit Ethernet
3x 4K Video interface (HDMI)
INDATECH Industrial PC MP3
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® 6th & 7th Gen. i7/i5/i3 CPU 35W
LGA 1151 – Q170 chipset |

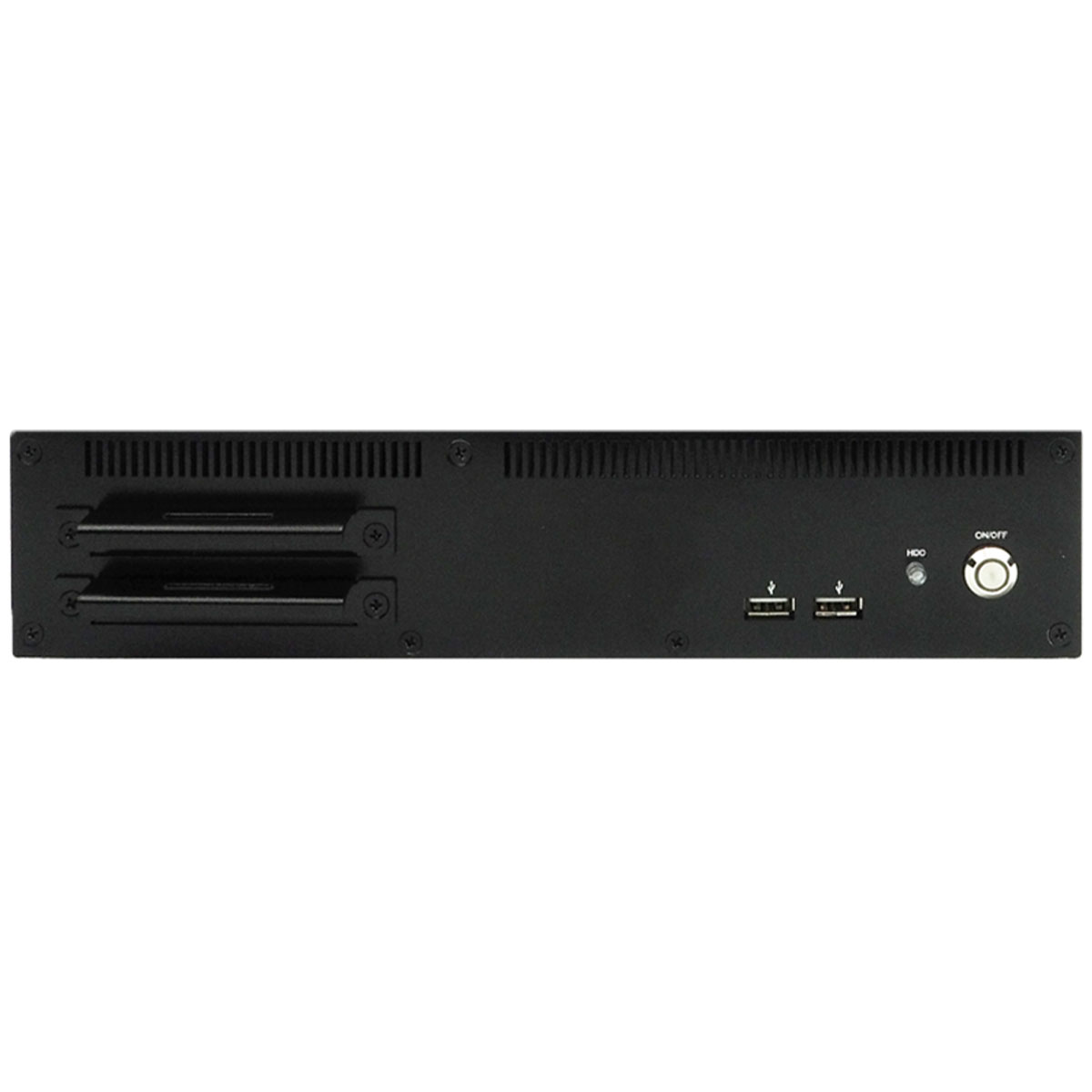

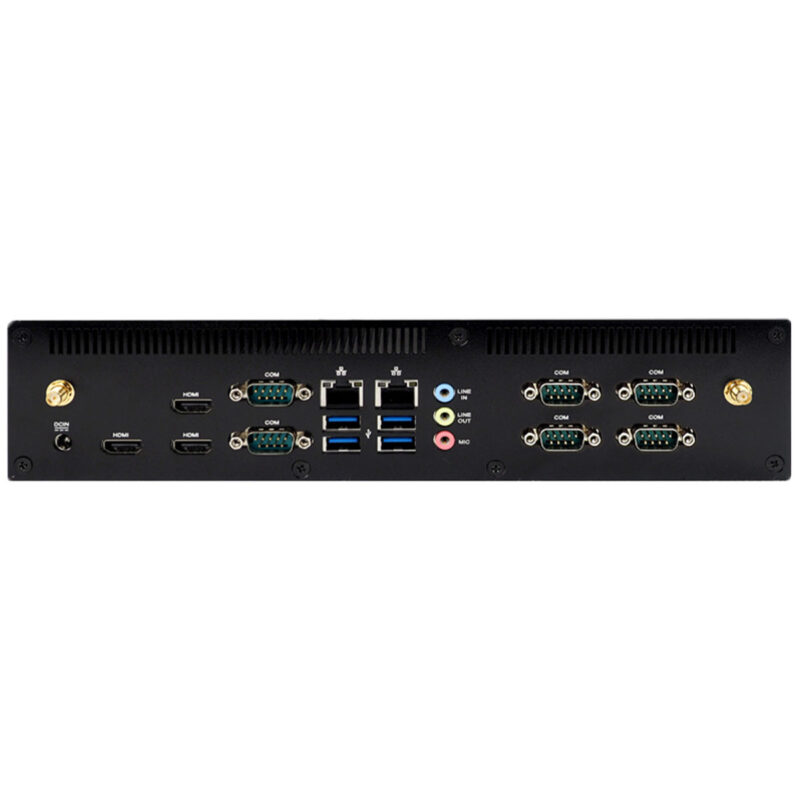

| MEMORY | |
| Capacity: | up to 32GB |
| Frequency: | 2133 MHz |
| Type: | 2x SO-DIMM DDR4 |
| STORAGE | |
| SATA: | 2x SATA3 – Support RAID 0,1 (reserved for tray slot) |
| mSATA: | 1x M.Mini-PCIe (Full-size) |
| Storage Tray: | 2x 2.5” SSD Tray (Cold Swap) |
| I/O INTERFACE | |
| Serial ports: | 2x COM RS232/422/485
4x COM RS232 |
| USB ports: | 4x USB 3.0,
2x USB 2.0 |
| Mini-PCIe: | 1x Mini-PCIe (Half size) for WIFI module (Standard) |
| AUDIO: | 1x Line-in,
1x Line-out, 1x MIC Jack |
| VIDEO | |
| GPU: | Intel® HD 620 Graphics |
| Interface: | 3x HDMI 1.4 (Up to 4096×2304 @24Hz) |
| ETHERNET | |
| LAN: | 1x Intel® i219LM PHY Gigabit LAN (iAMT 11.0)
1x Intel® i211AT Gigabit LAN |
| POWER | |
| Power in: | 9 to 24V, DC-in |
| Max Power: | 80W max |
| Adapter: | AC90~240V to DC19V6.32A/120W |
| MECHANICAL | |
| Material: | Lightweight aluminum alloy with extruded aluminum IO panel |
| Dimensions: | (W)290x(D)207x(H)65mm |
| Weight: | 3.8Kg |
| Mounting: | WallMount + DIN Rail |
| ENVIRONMENT | |
| Operating temp.: | -20°C to 50°C |
| Storage temp.: | -20°C to 70°C |
| Humidity: | 90% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, LVD, ErP ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence, FreeNAS 11.2 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| MP3 | 10005376 | B04-11C-MP3-I57500T–R08–SSD500 | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
| RAM | R08 | 8GB RAM |
| R16 | 16GB RAM | |
| R32 | 32GB RAM |
| CPU | I5 7500T |
| I7 7700T |
| STORAGE | SSDXXX | 128GB to 1TB, 2,5” type |
| MSDXXX | 64GB to 1TB, mSATA type |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |

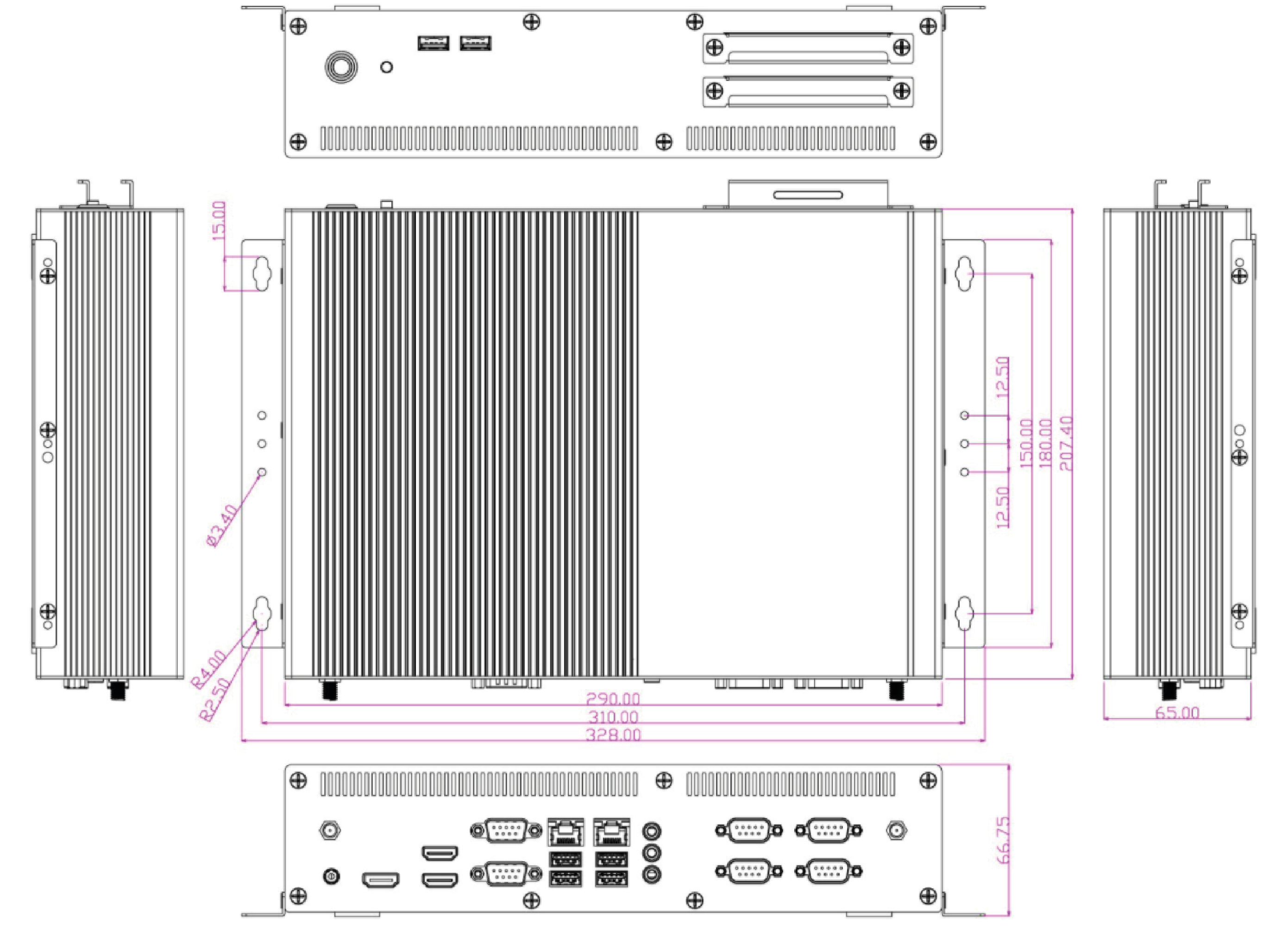

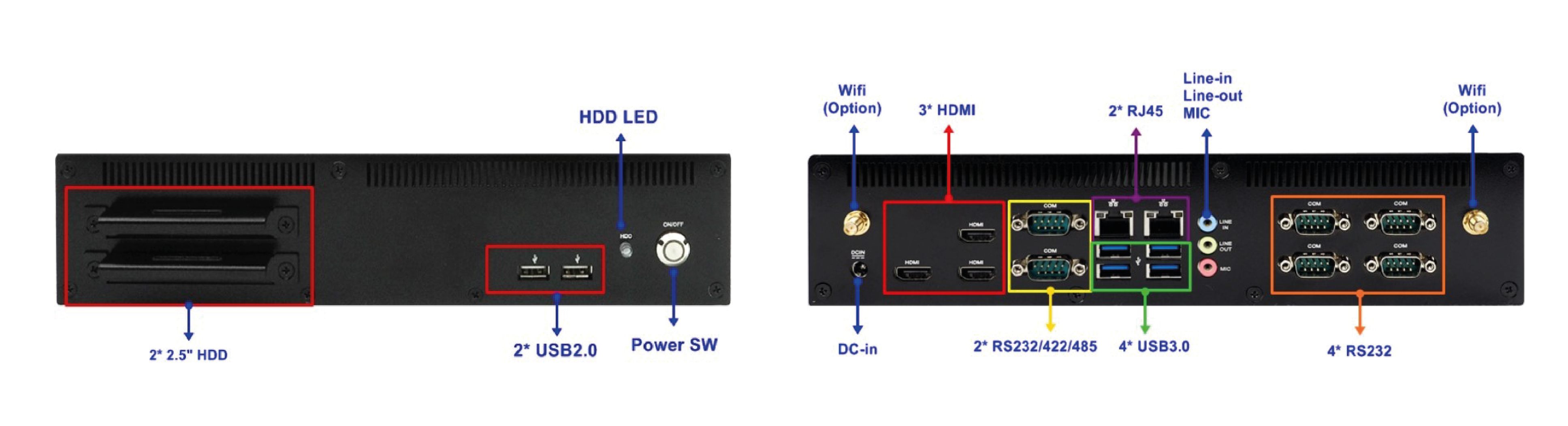

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| MP3 | v1.0 | 2023-06-01 | 931 KB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| MP3 manual | v1.0 | 2023-06-01 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| MP3 HIG | v1.0 | 2023-06-01 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| MP3 drivers | v1.0 | 2023-06-01 | 4.3 GB | |
