NEW
NET N100
Intel® Alder Lake-N Processor (N100)
1x DDR4 3200 MHz up to 16GB RAM
12V, DC-IN w/220VAC Power Adapter
M.2 M-Key SATA + 1x SSD 2.5”
4x 2.5 Gigabit Ethernet LAN
WIFI (Optional) or 4G/5G (on request)
2x 4K Video interface (HDMI + DP)
| MAINBOARD | |
| CPU: | Intel® N100
4 Core / 4 Thread 1.8 GHz (Base) / 3.4 GHz (Turbo) 6W |
| MEMORY | |
| Capacity: | up to 16GB |
| Frequency: | 3200 MHz |
| Type: | 1x SO-DIMM DDR4 |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2: | 1x M.2 M-Key (2280, SATA) |
| Storage Bay: | 1x Internal 2.5” SSD Bay |
| I/O INTERFACE | |

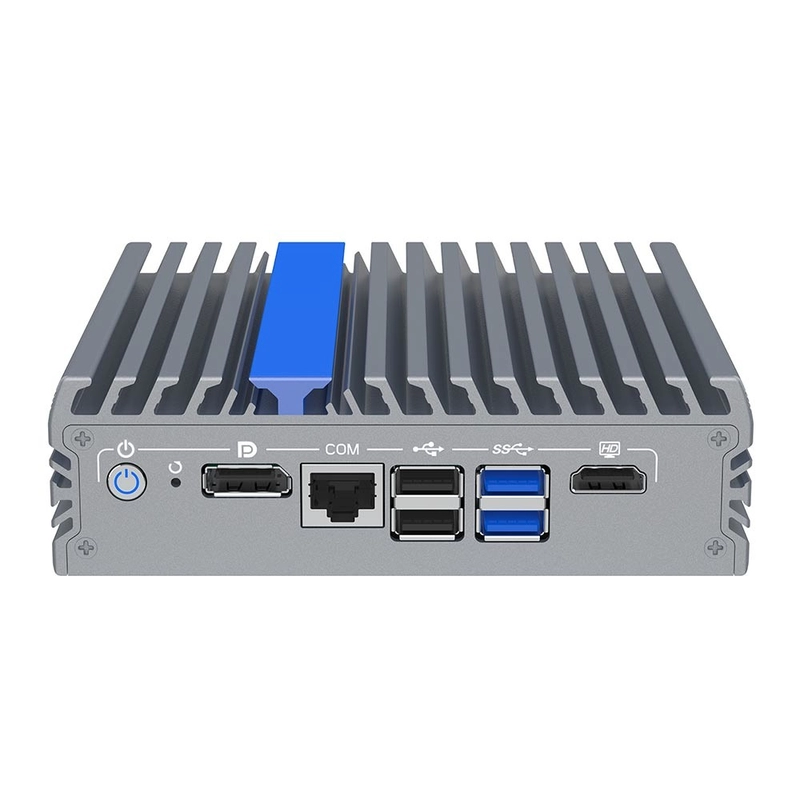

| COM: | 1x Console COM (RJ45) |
| USB ports: | 1x USB 3.1 + 3x USB 2.0 |
| M.2: | 1x M.2 E-Key Slot (2230, WIFI) (optional) 1x M.2 B B-Key Slot (3052, 4G/5G) (on request) |
| SIM: | 1x SIM Slot External |
| VIDEO | |
| GPU: | Intel® UHD Graphics |
| Interface: | 1x HDMI (Up to 4096×2160 @60Hz) 1x DP (Up to 4096×2160 @60Hz) |
| ETHERNET | |

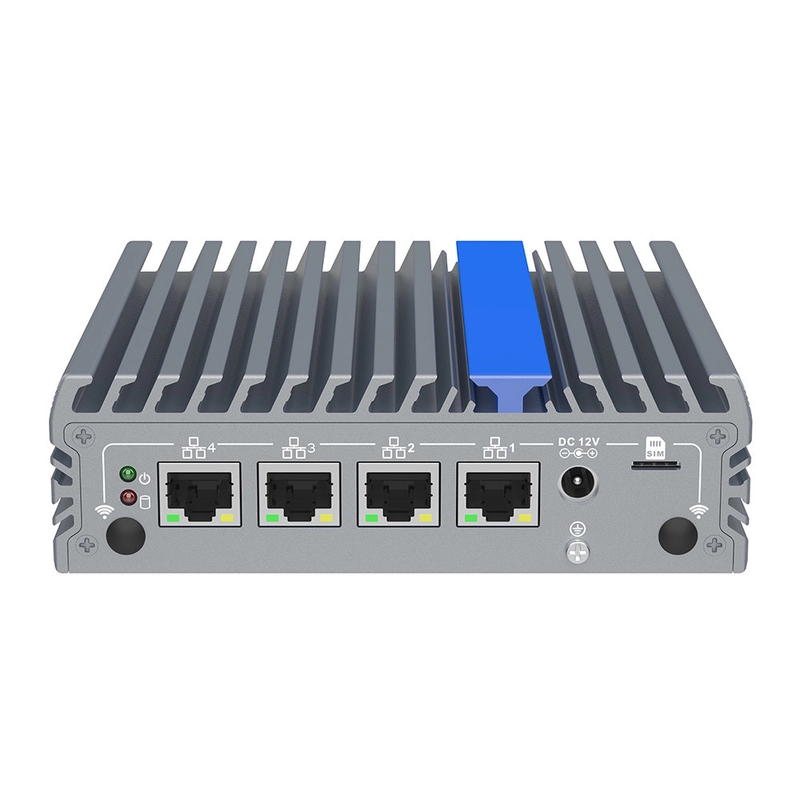

| LAN: | 4x Intel i226 i226-V 2.5 Gigabit LAN |
| POWER | |
| Power in: | 12V, DC-in |
| Max Power: | 15W max |
| Adapter: | AC 90~240V to DC 12V @5A/60W |
| MECHANICAL | |
| Material: | High-quality aluminum |

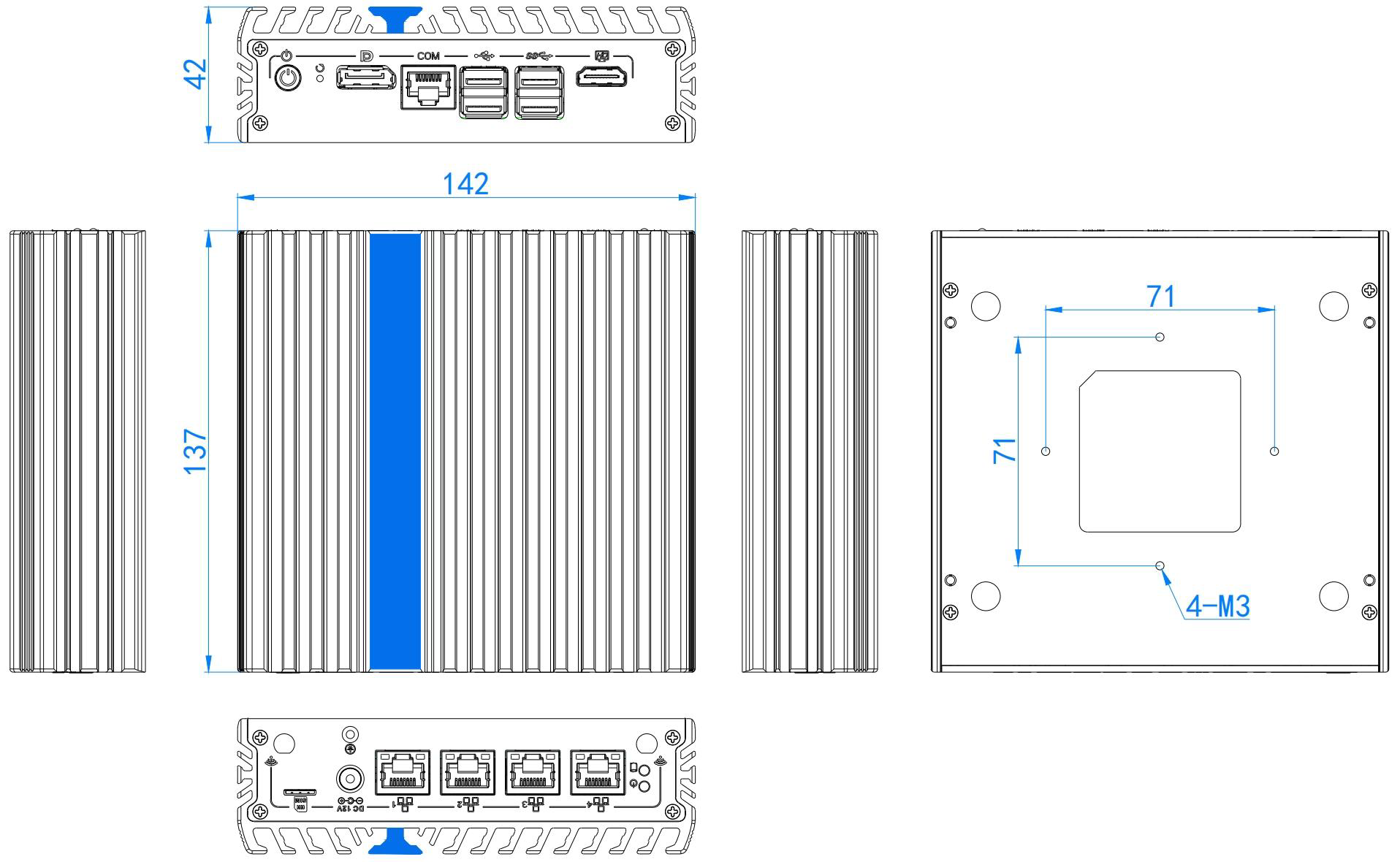

| Dimensions: | (W)142x(D)137x(H)42mm |
| Weight: | <0.79 Kg |
| Mounting: | VESA, Wall Mount Kit, Din Din-Rail (Optional) |
| ENVIRONMENT | |
| Operating temp.: | -20°C to +60°C – w/Air Flow |
| Storage temp.: | -40°C to 85C |
| Humidity: | 5% to 95% RH @40°C, non non-condensing |
| EMC: | CE, FCC, RoHS, LVD, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC (IoT),
Windows 11, Windows 11 Enterprise LTSC (IoT) |
| Linux*: | Ubuntu 22.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.7.2, |
| * Linux distributions tested with the IPC. |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| NET N100 | 1000xxxx | B04-29C-NET-N100–R08–SSD128 | IPC + 16GB RAM + 256GB SSD |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| NET N100 | v1.0 | 13-12-2024 | 1.3 |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| NET N100 | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| NET N100 HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| NET N100 drivers | TBD | TBD | TBD | |
