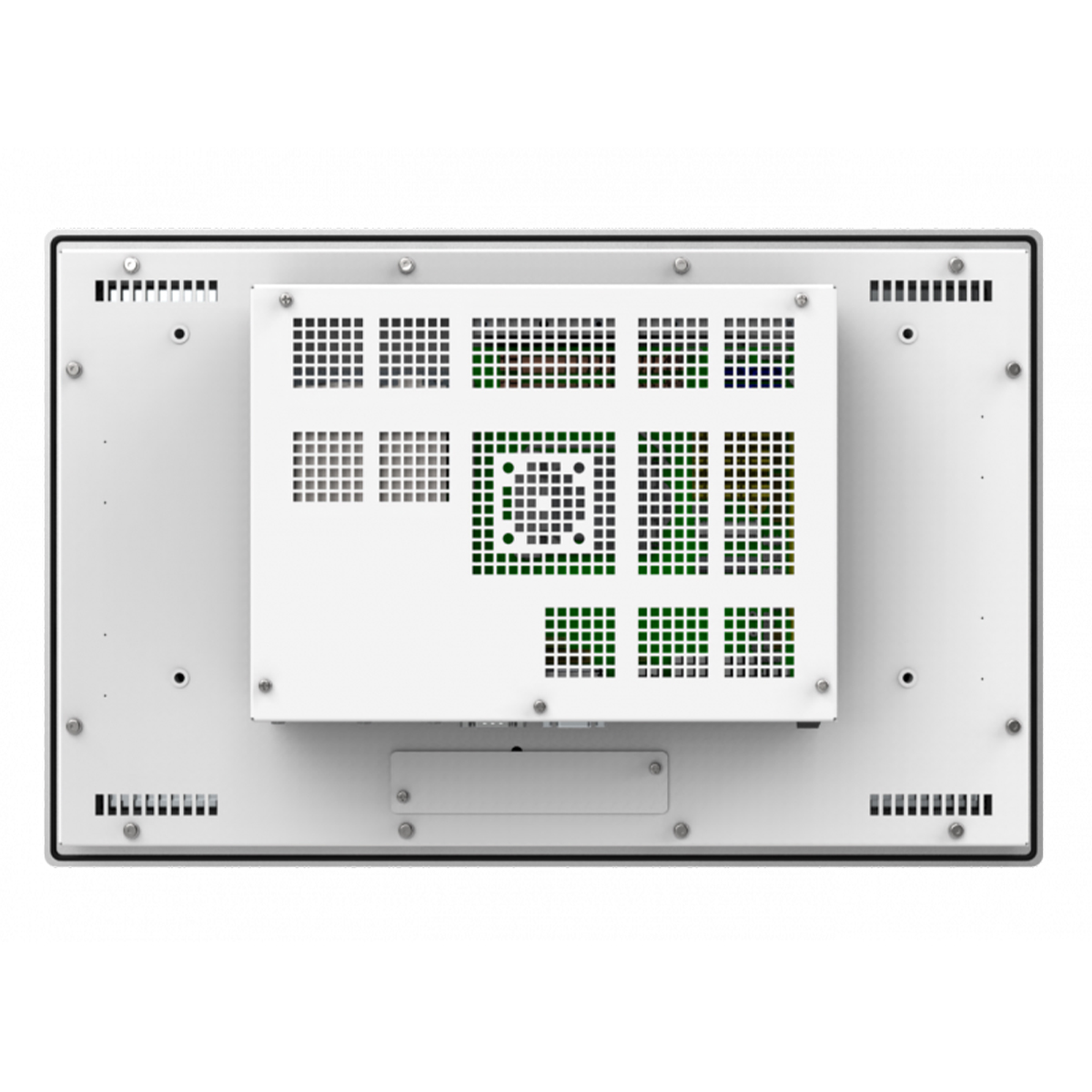

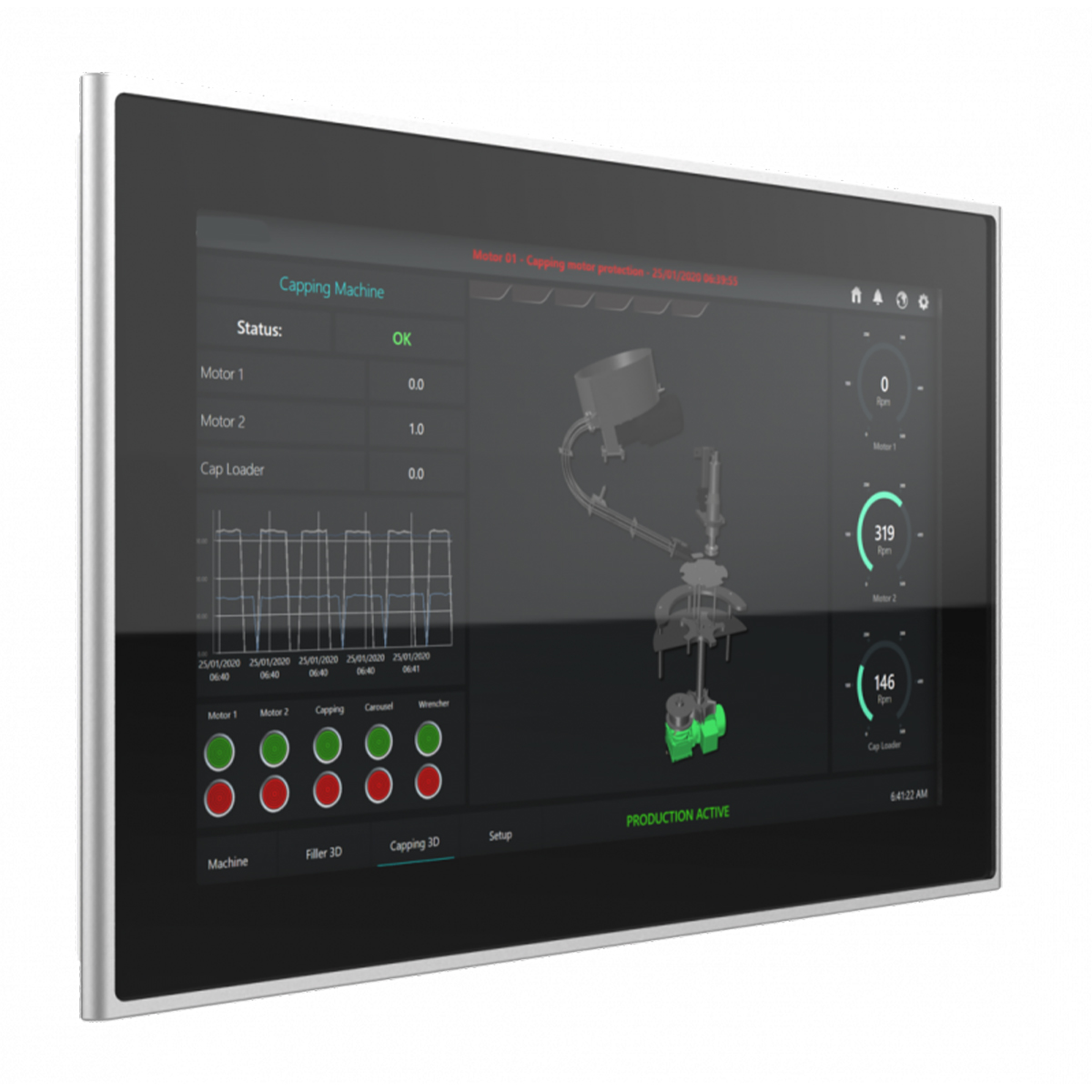

PanelPC 215X – J3455
21.5” Industrial Panel PC (16:9)
Intel® Celeron Apollo Lake J3455
Customizable fornt panel:
“Aluminum True Flat” (Standard)
“Aluminum w/USB Front”
“AISI 316 True Flat”
Touch or w/o -Touch version
Two Power options available:
18 ~ 36V, VDC or 80 ~ 265V, VAC
INDATECH Industrial Panel PC
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Celeron Apollo Lake J3455
4 Core / 4 Thread 1.5 GHz (Base) / 2.3 GHz (Turbo) 10 W |
| MEMORY | |
| Capacity: | 8GB |
| Frequency: | 1600 MHz |
| Type: | 1x SO-DIMM DDR3L |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2: | 1x M.2 M-Key (2242) |
| Storage Bay: | 1x Internal Storage Bay (2.5″) |

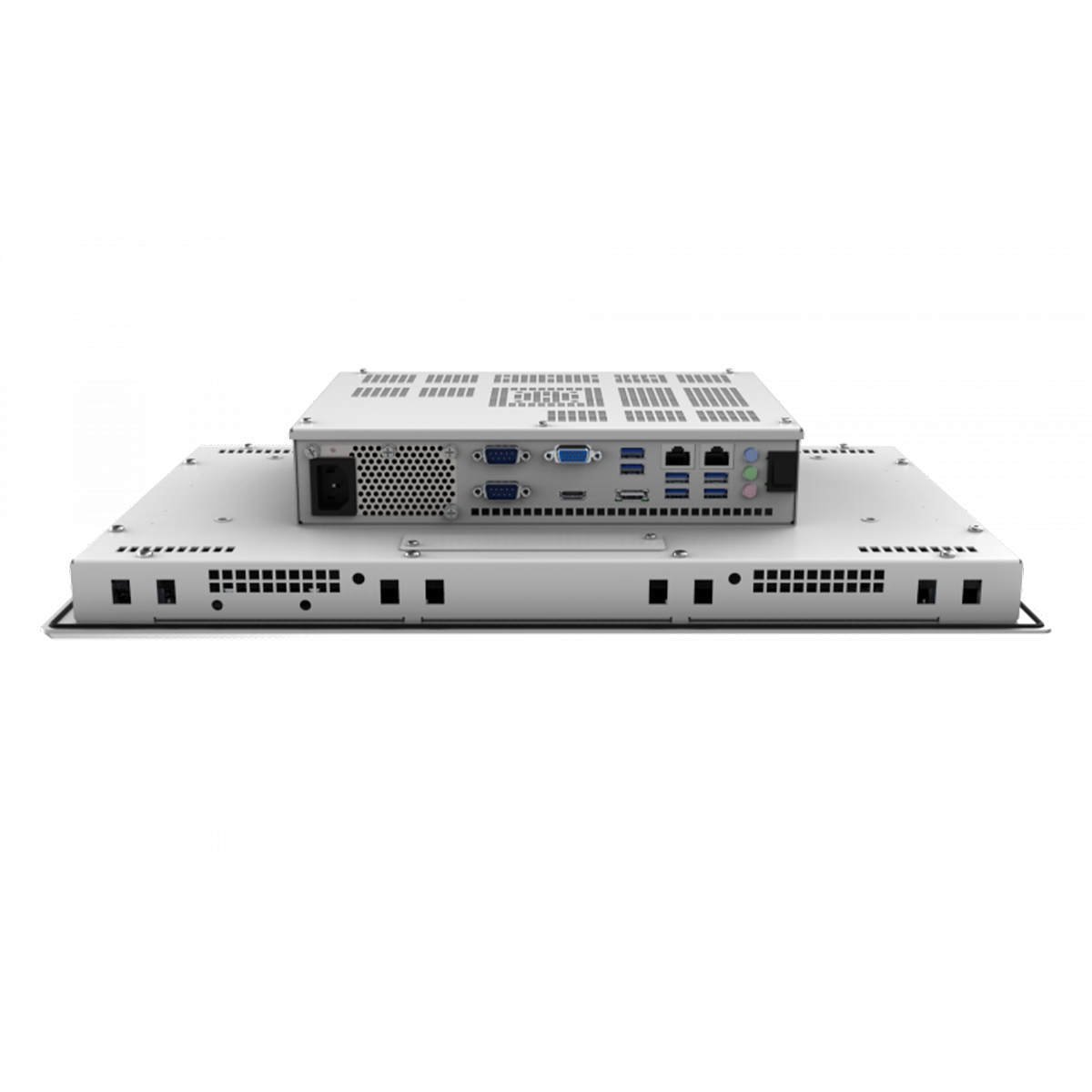

| I/O INTERFACE | |
| Serial ports: | 1x COM RS232/422/485
3x COM RS232 |
| USB ports: | 4x USB 3.0 |
| Mini-PCIe: | 1x Mini-PCIe (Half size) for WIFI or 4G/LTE module |
| Audio: | 1x Audio Combo Jack |
| VIDEO | |
| GPU: | Intel® HD Graphics 500 |
| Interface: | 2x HDMI 1.4 (Up to 3840×2160 @30Hz) |
| ETHERNET | |
| LAN: | 2x Intel® i211AT Gigabit LAN
1x Intel® 82574 GbE LAN (optional) |
| TOUCH SCREEN | |
| Glass Thickness: | 3 mm |
| Technology: | Projective Capacitive Multitouch – 4 points (Optional with “True Flat”) |
| DISPLAY | |
| Size: | 21.5″ |
| Resolution: | FullHD (1920×1080) |
| Aspect Ratio: | 4:3 |
| Backlight: | Led |
| Bright and Contrast: | 300 cd/mq 5000:1 |
| Colors: | 16 M |
| View angle: | 178° – 178° |
| FRONT PANEL | |
| Thickness: | 6 mm |
| Connection: | 1x USB 2.0 (only w/USB Front) |
| Front Panel Type: | “Aluminum True Flat” (Standard)
“Aluminum w/USB Front” “AISI 316 True Flat“ |
| MECHANICAL | |
| Material: | Painted metal RAL7035 |
| IP Protection: | IP65 on front side |
| Dimensions: | (L)560x(W)350x(H)90mm |
| Weight: | 8 Kg |
| Mounting: | Fast mounting with clamps |
| POWER | |
| Power in: | 18 to 36V, VDC Version 80 to 265V, VAC Version |
| Max Power: | 20W max |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 60°C |
| Storage temp.: | -20°C to 70°C |
| Humidity: | 40% – 60% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, LVD |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence, FreeNAS 11.2 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| PanelPC-215X – J3455 | |||
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| PanelPC-215X – J3455 | TBD | TBD | TBD |  |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| PanelPC-215X – J3455 drivers | TBD | TBD | TBD | |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| PanelPC-215X – J3455 manual | v1.28 | 2021-12-10 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| PanelPC-215X – J3455 HIG | v1.28 | 2021-12-10 | 5.99 MB | |
