NEW

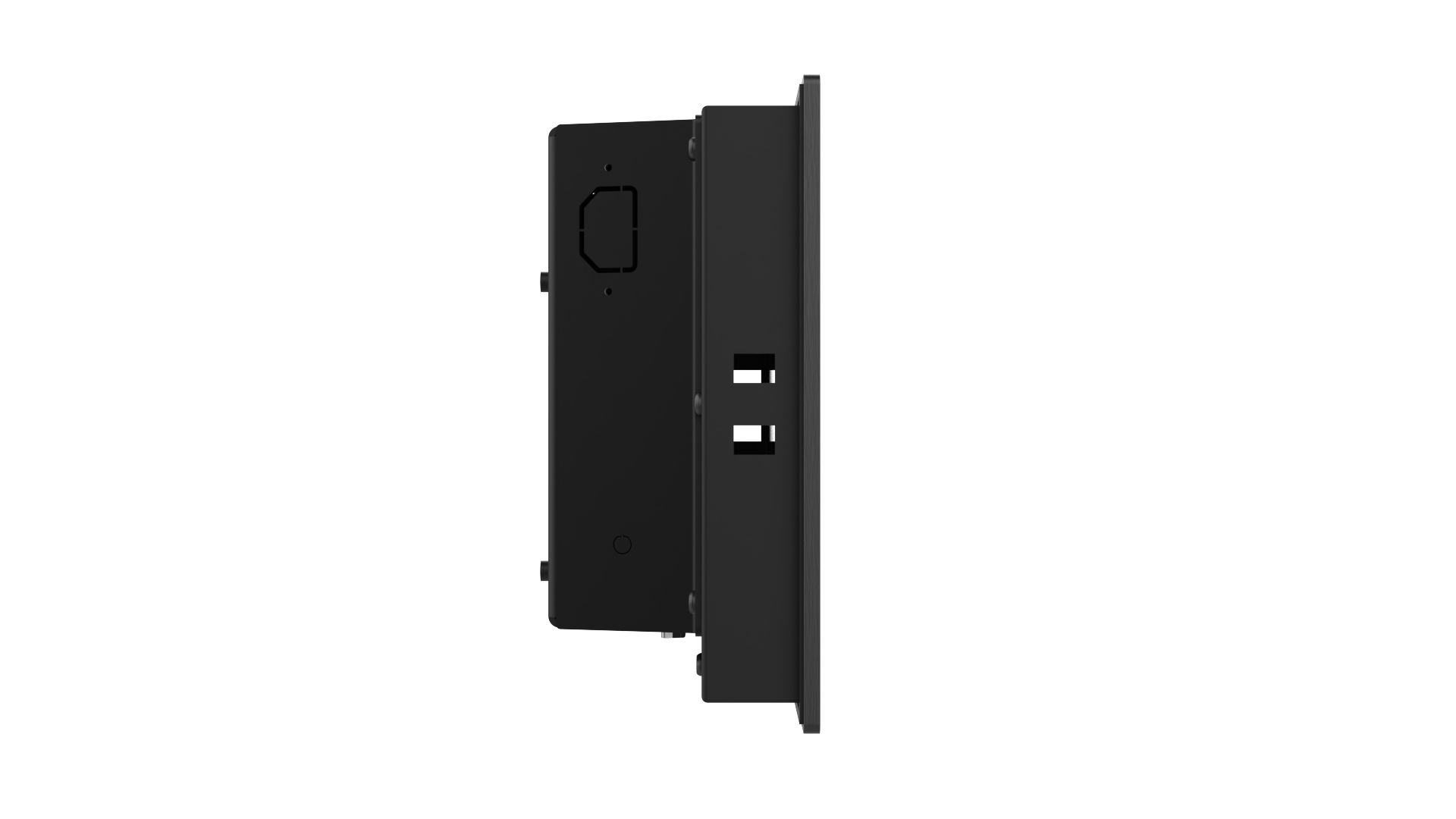

PanelPC G101X – J6412
10,1” Industrial Glass Frame Panel PC (16:10)
Intel Elkhart Lake – J6412
Up to 32GB RAM
WXGA (1280×800) resolution
Aluminum + Glass Frame front panel
Projective Capacitive Multitouch – 10 points

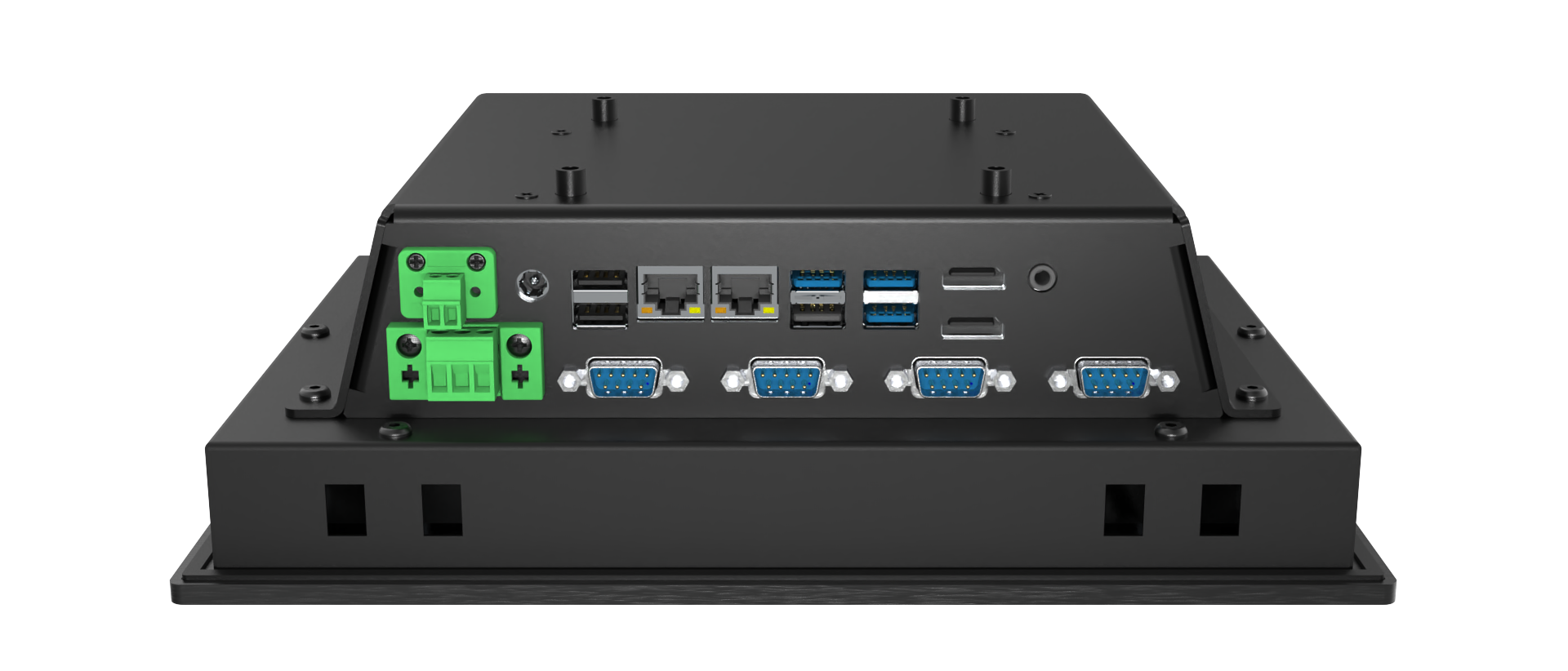

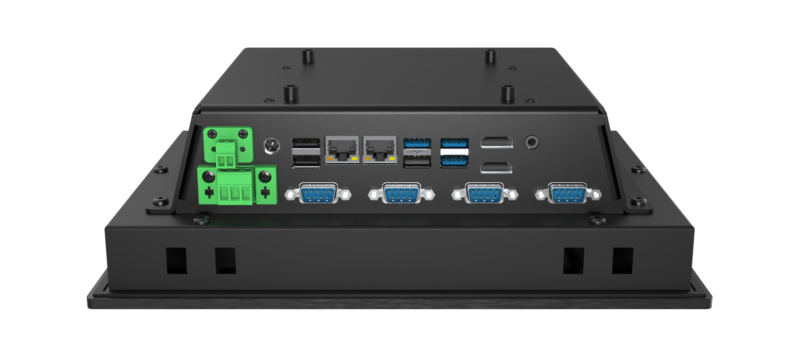

2x 2.5GbE + 2x DP + 2x HDMI + 6x USB 3.2
+ 3x USB 2.0 + 1x RS232/422/485 + 2x RS232
12 ~ 24 VDC w/ Terminal Block 3P
or 220 VAC w/ IEC connector + Remote ON/OFF
Panel and VESA Mount
INDATECH Industrial Glass Frame Panel IPC
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel Elkhart Lake – J6412
4 Core / 4 Thread 2.0 GHz (Base) / 2.6 GHz (Turbo) 10W |
| MEMORY | |
| Capacity: | up to 32GB |
| Frequency: | 3200 MHz |
| Type: | 1x SO-DIMM DDR4 |
| STORAGE | |
| SATA: | 1x SATA3 |
| eMMC: | 32/64GB eMMC (on request) |
| M.2: | 1x M.2 M M-Key (2242/2260/2280) Support NVMe |
| Storage Bay: | 1x Internal 2.5” SSD Bay |
| I/O INTERFACE | |
| Serial ports: | 1x COM RS232/422/485 2x COM RS232 |
| USB ports: | 3x USB 3.2 + 3x USB 2.0 |
| M.2: | 1x M.2 E E-Key (2230) 1x M.2 B B-Key (3042) |
| Audio: | 1x Line Line-out Combo Jack |
| VIDEO | |
| GPU: | Intel UHD Graphics |
| Interface: | 2x HDMI 2.0b (Up to 4096×2160 @60Hz) |
| ETHERNET | |
| LAN: | 2x Intel i225V 2.5GbE Gigabit LAN |
| DISPLAY | |
| Size: | 10,1″ |
| Resolution: | WXGA (1280×800) |
| Aspect Ratio: | 16:10 |
| Backlight: | Led |
| Bright and Contrast: | 500 cd/mq 800:1 |
| Colors: | 16 M |
| View angle: | 170° – 170° |
| TOUCH SCREEN | |
| Glass Thickness: | 2 mm |
| Technology: | Projective Capacitive Multitouch – 10 points |
| FRONT PANEL | |
| Thickness: | 6 mm |
| Front Panel Type: | Aluminum + Glass Frame |
| MECHANICAL | |
| Material: | Aluminum + Steel |
| IP Protection: | IP65 on front side |
| Dimensions: | (W)280x(D)200x(H)92,6mm |
| Weight: | 4 Kg |

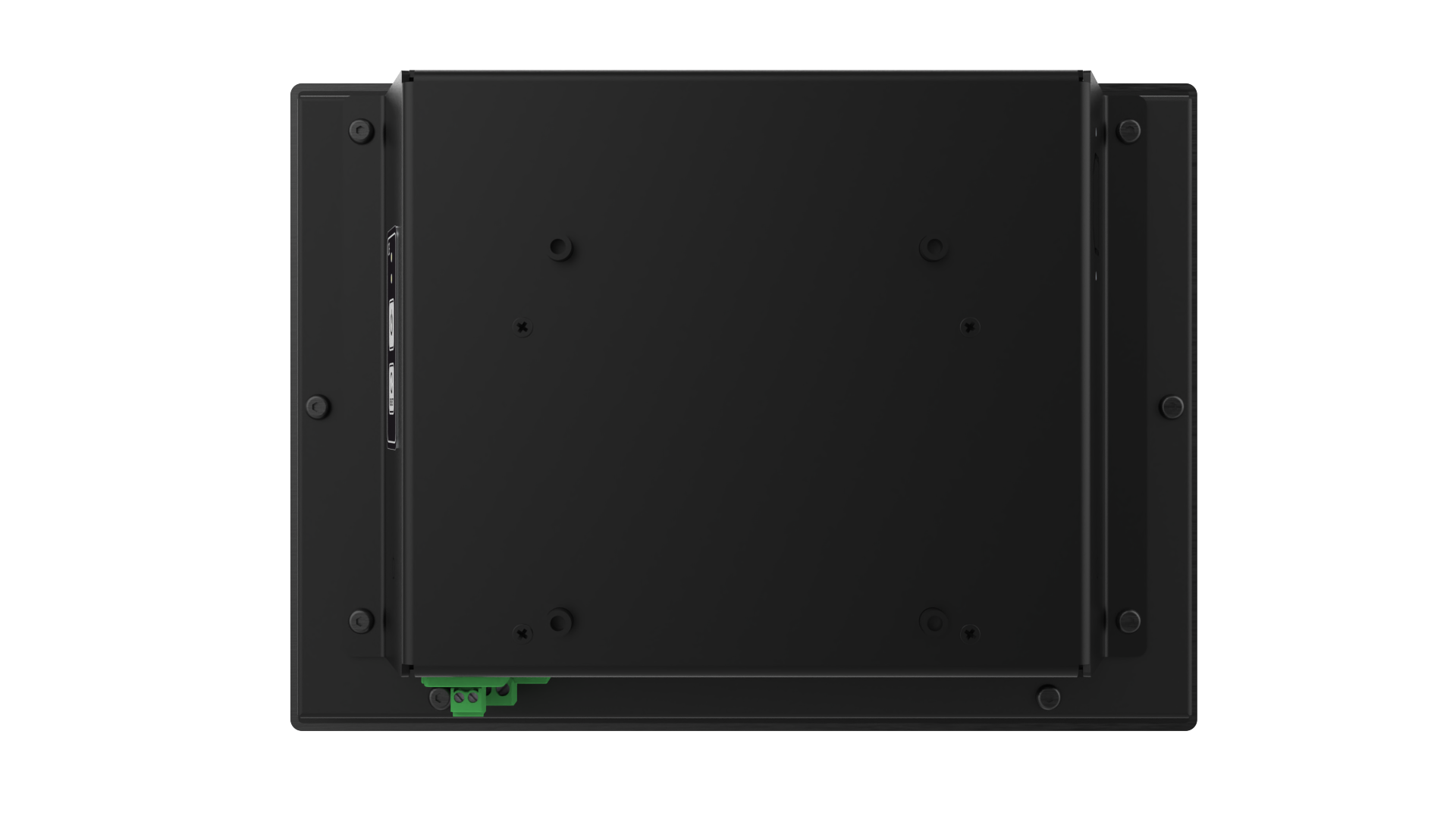

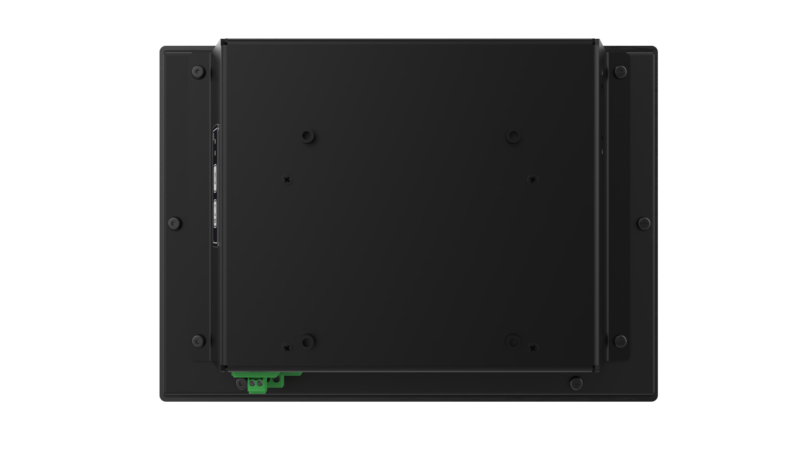

| Mounting: | Panel Mount / VESA 100 |
| POWER | |
| Power in: | 12 ~ 24 VDC or 220 VAC |
| Max Power: | ~60 W max |
| Connector: | Terminal Block 3P or IEC connector |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 60°C |
| Storage temp.: | -20°C to 70°C |
| Humidity: | 0% – 90% Humidity, non-condensing |
| EMC: | CE, RoHS |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 22.04 LTS, CentOS 8, Debian 12,
Fedora 34, pfSence 2.7, FreeNAS 11.2 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| PanelPC-G101X – J6412 | TBD | TBD | TBD |

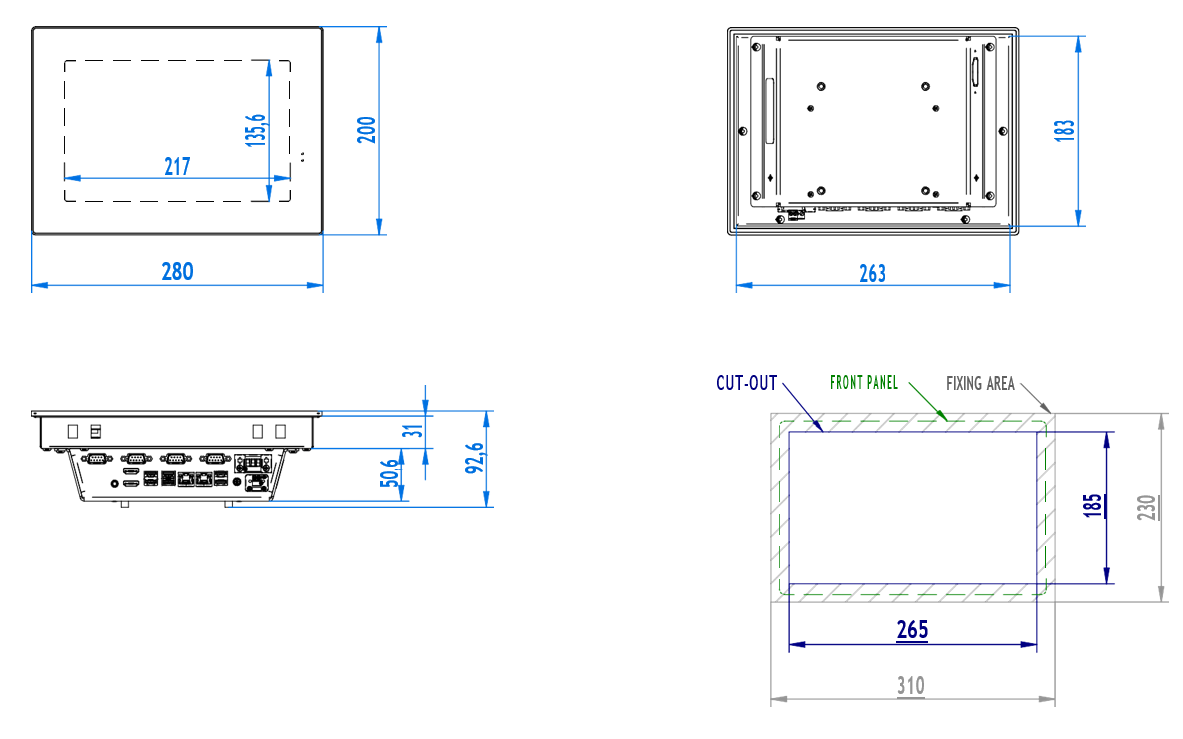

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| PanelPC-G101X – J6412 | TBD | TBD | TBD |  |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| PanelPC-G101X – J6412 drivers | TBD | TBD | TBD | |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| PanelPC-G101X – J6412 manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| PanelPC-G101X – J6412 HIG | TBD | TBD | TBD | |
