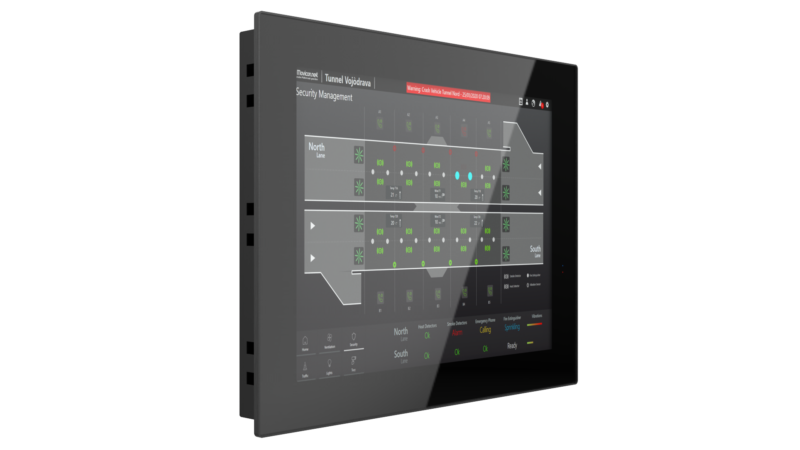

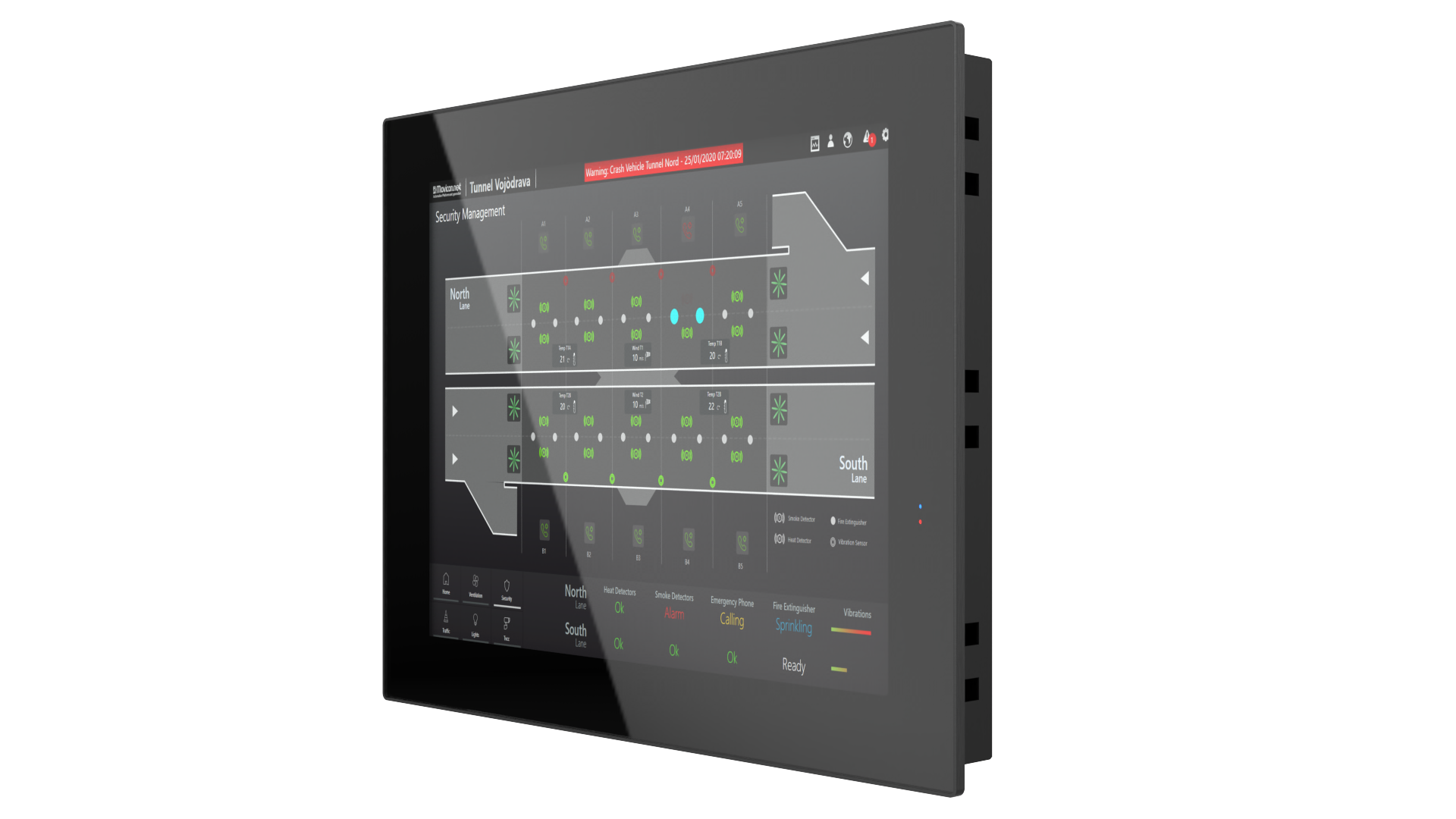

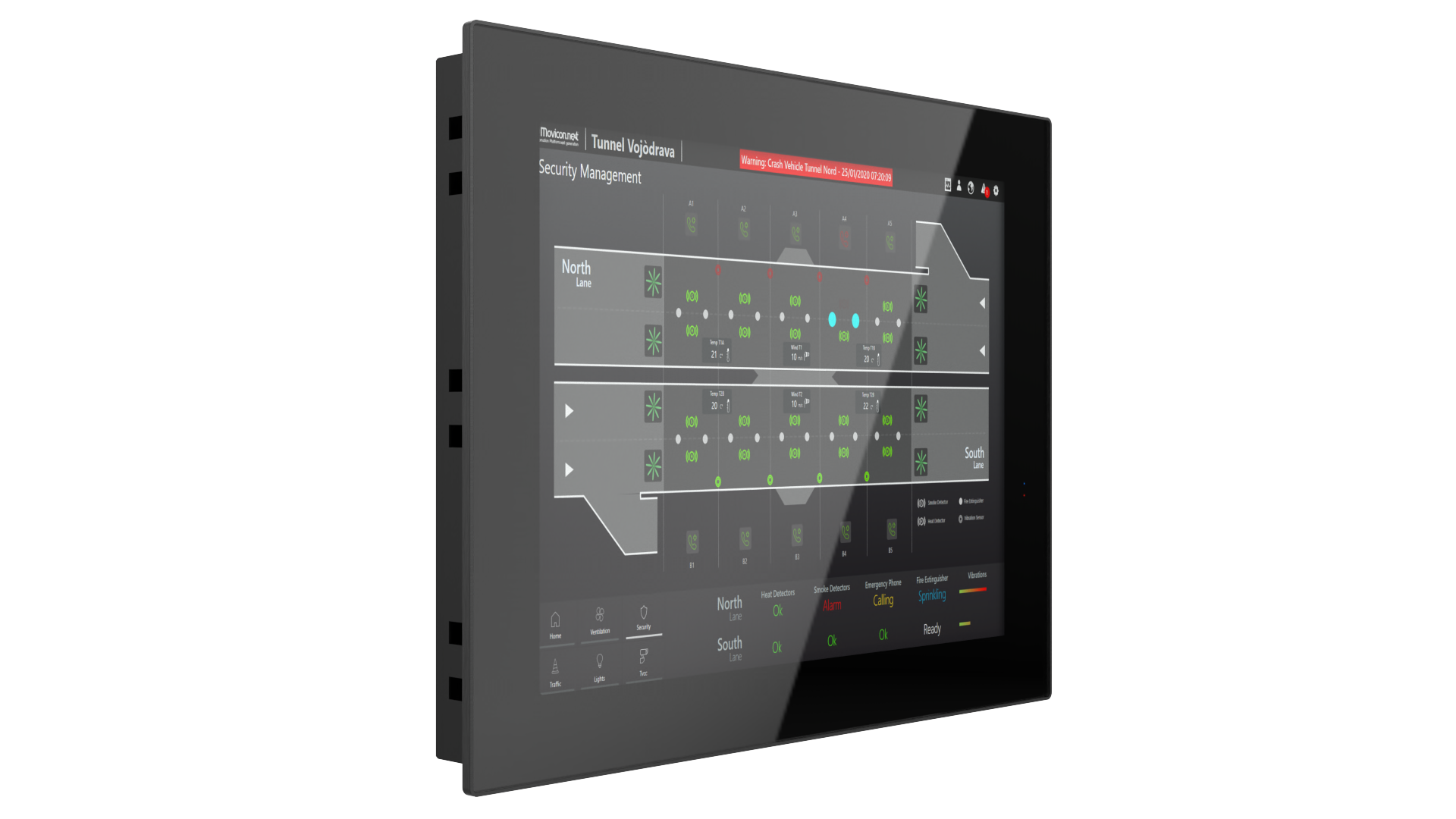

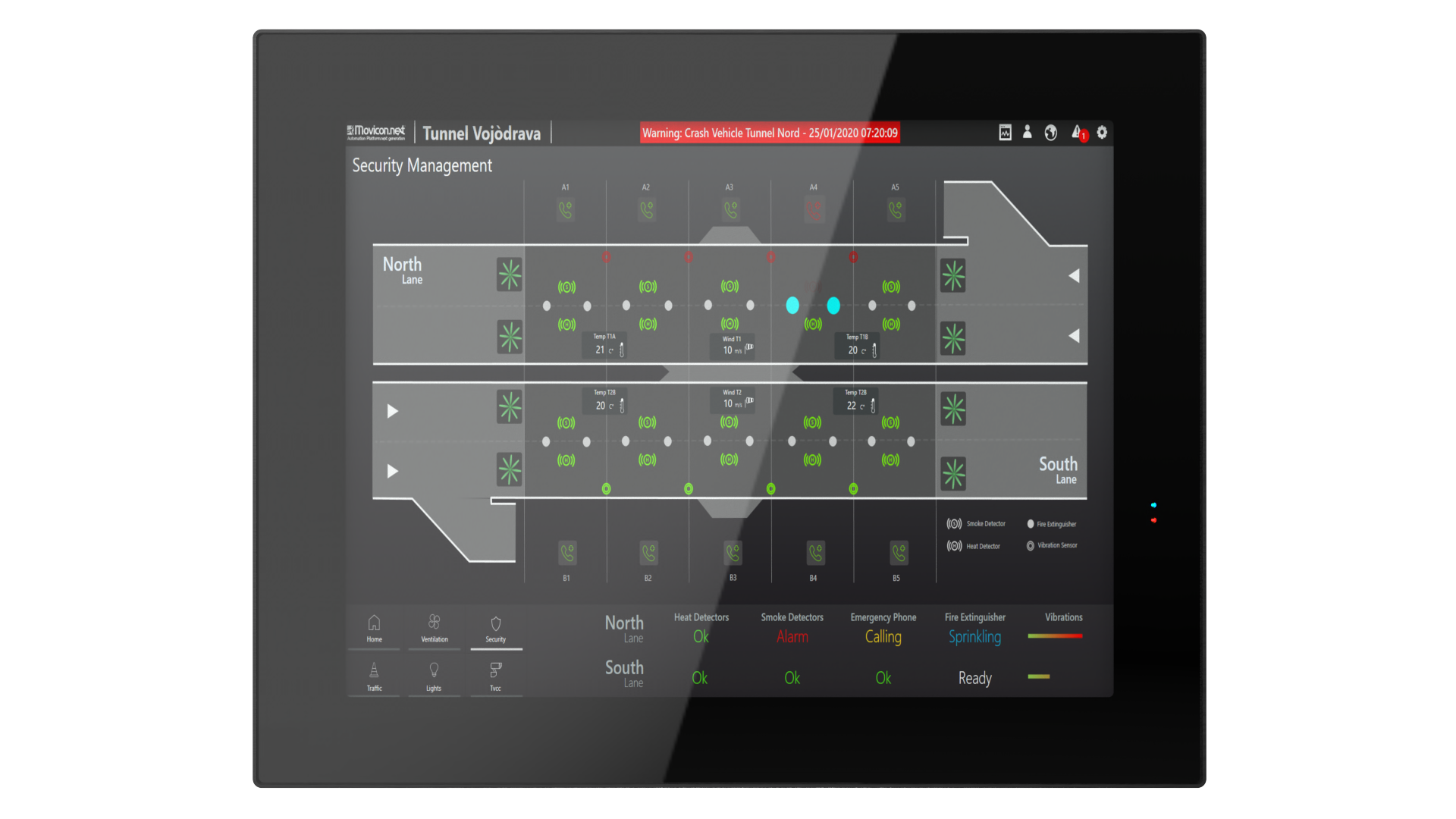

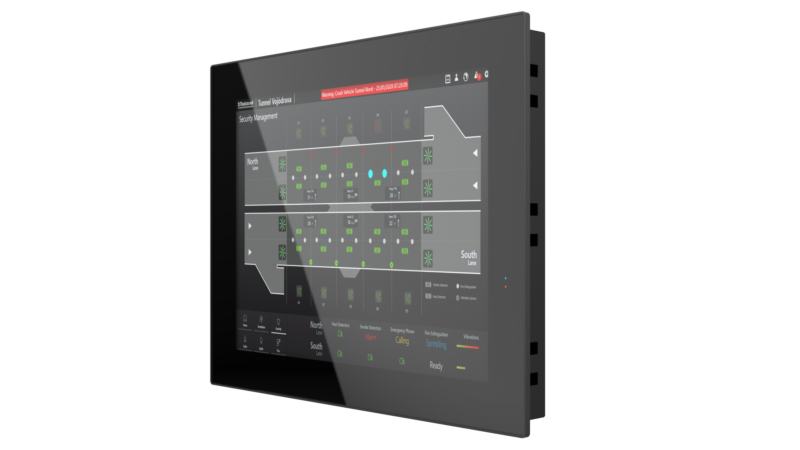

PanelPC G150X – 11G
15” Industrial Glass Frame Panel PC (4:3)
Intel Tiger Lake UP3 – i5 1135G7E
Up to 64GB RAM
SXGA (1280×1024) resolution
Aluminum + Glass Frame front panel
Projective Capacitive Multitouch – 10 points

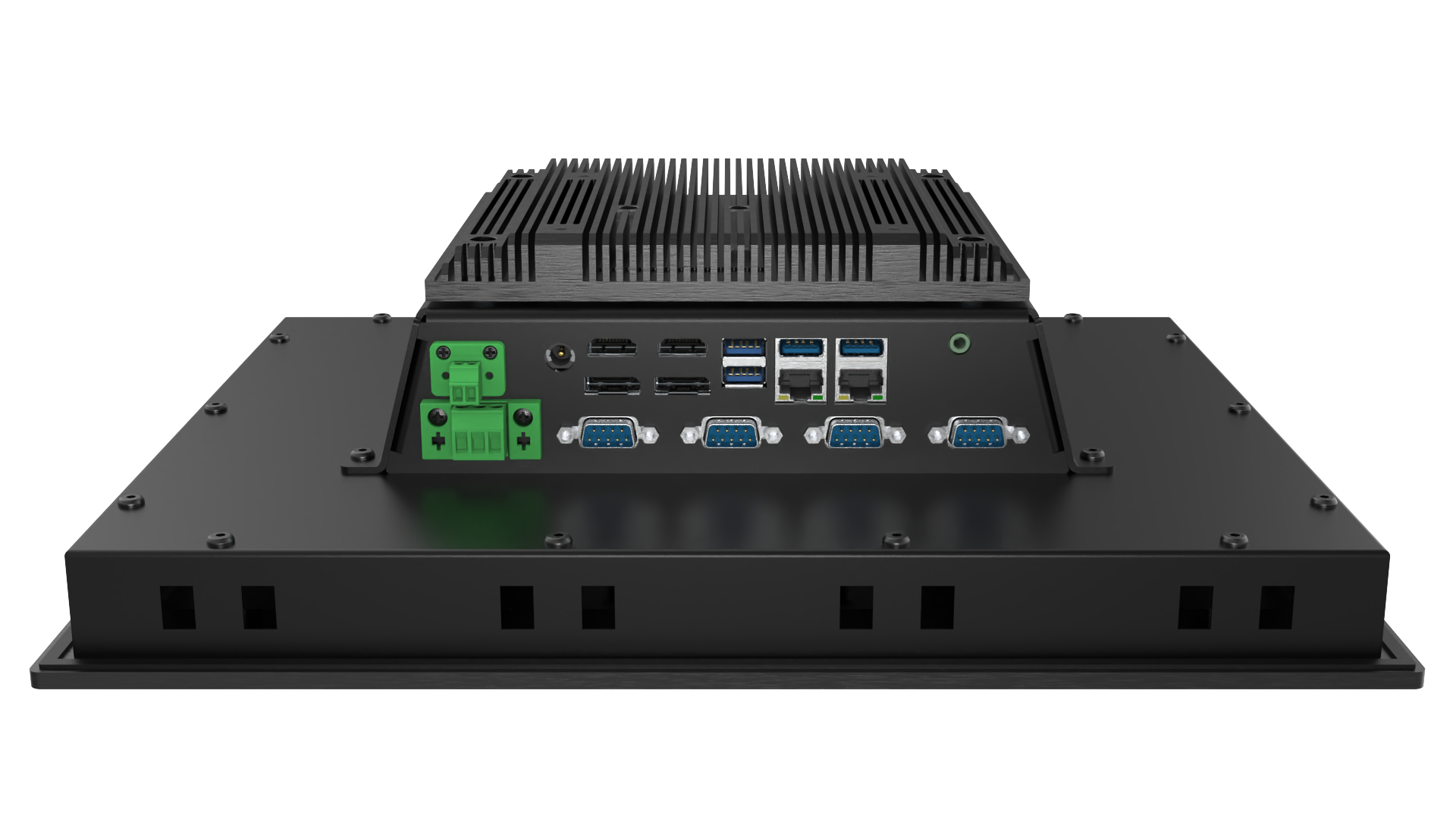

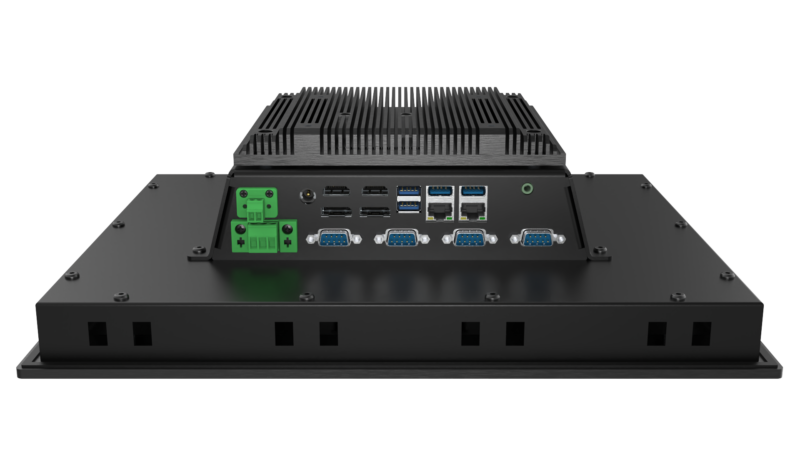

2x GbE (1x 2.5G)+ 2x DP + 2x HDMI
+ 4x USB 3.2 + 2x RS232/422/485 + 1x RS232
12 ~ 24 VDC w/ Terminal Block 3P or
220 VAC w/ IEC connector + Remote ON/OFF
Panel and VESA Mount
INDATECH Industrial Glass Frame Panel IPC
Specifiche tecniche
MAINBOARD | |
CPU: | Intel Tiger Lake Lake-UP3 i5 1135G7E
4 Core / 8 Thread 1.5 GHz (Base) / 4.1 GHz (Turbo) 15W |
MEMORY | |
Capacity: | up to 64GB |
Frequency: | 3200 MHz |
Type: | 2x SO-DIMM DDR4 |
STORAGE | |
SATA: | 1x SATA3 |
M.2: | 1x M.2 M M-Key (2242/2260/2280) Support NVMe |
Storage Bay: | 1x Internal 2.5” SSD Bay |
I/O INTERFACE | |
Serial ports: | 2x COM RS232/422/485 2x COM RS232 |
USB ports: | 4x USB 3.2 |
M.2: | 1x M.2 E E-Key (2230) 1x M.2 B B-Key (3042) |
Audio: | 1x Line Line-out Combo Jack |
VIDEO | |
GPU: | Intel Iris Xe Graphics |
Interface: | 2x HDMI 2.0b (Up to 4096×2160 @60Hz) 2x DP 1.4 (4096 * 2304 @ 60Hz) |
ETHERNET | |
LAN: | 1x Intel i225V 2.5GbE Gigabit LAN 1x Intel I219 I219-LM PHY Gigabit LAN |
DISPLAY | |
Size: | 15″ |
Resolution: | SXGA (1280×1024) |
Aspect Ratio: | 4:3 |
Backlight: | Led |
Bright and Contrast: | 400 cd/mq 1000:1 |
Colors: | 16 M |
View angle: | 160° – 140° |
TOUCH SCREEN | |
Glass Thickness: | 2 mm |
Technology: | Projective Capacitive Multitouch – 10 points |
FRONT PANEL | |
Thickness: | 6 mm |
Front Panel Type: | Aluminum + Glass Frame |
MECHANICAL | |
Material: | Aluminum + Steel |
IP Protection: | IP65 on front side |

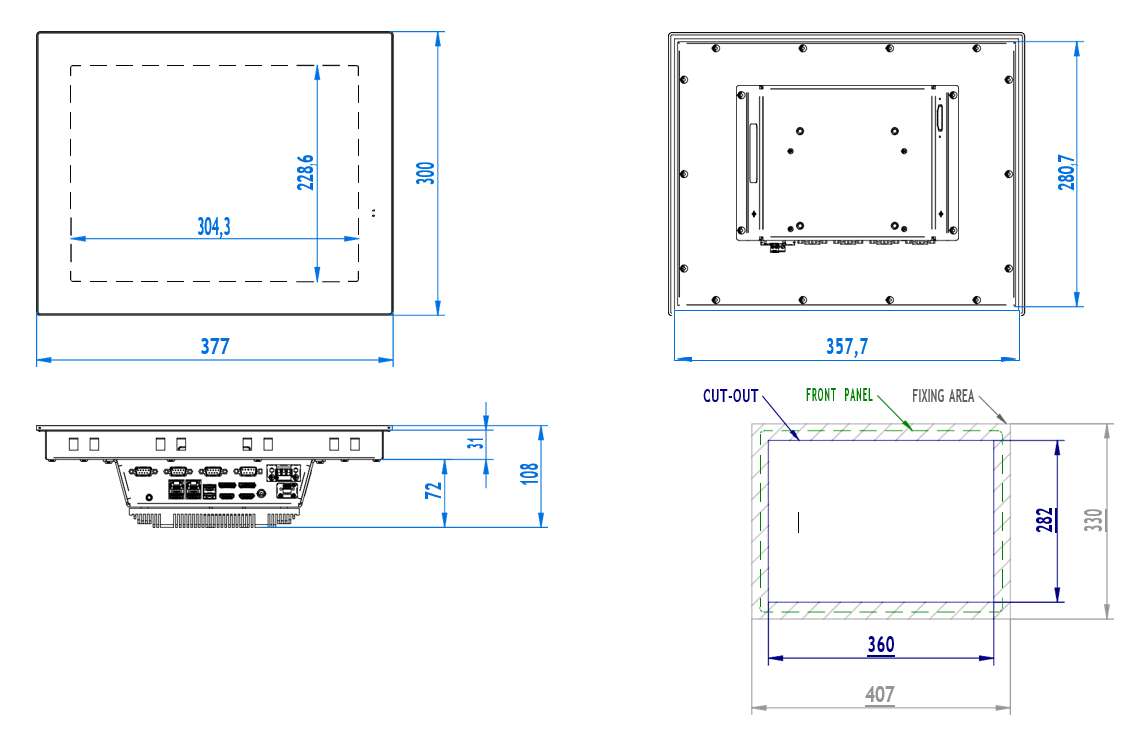

Dimensions: | (W)377x(D)300x(H)108mm |
Weight: | 5 Kg |
Mounting: | Panel Mount / VESA 100 |
POWER | |
Power in: | 12 ~ 24 VDC or 220 VAC |
Max Power: | ~60 W max |
Connector: | Terminal Block 3P or IEC connector |
ENVIRONMENT | |
Operating temp.: | 0°C to 60°C |
Storage temp.: | -20°C to 70°C |
Humidity: | 0% – 90% Humidity, non-condensing |
EMC: | CE, RoHS |
OPERATIVE SYSTEM | |
MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
Linux*: | Ubuntu 22.04 LTS, CentOS 8, Debian 12,
Fedora 34, pfSence 2.7, FreeNAS 11.2 |
* Linux distributions tested with the IPC. |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
PanelPC-G150X – 11G | TBD | TBD | TBD |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
PanelPC-G150X – 11G | TBD | TBD | TBD | ![]() |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
PanelPC-G150X – 11G drivers | TBD | TBD | TBD | ![]() |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
PanelPC-G150X – 11G manual | TBD | TBD | TBD | ![]() |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
PanelPC-G150X – 11G HIG | TBD | TBD | TBD | ![]() |
