NEW
QUANTUM i5-1235U
Intel® Core™ 12th Processor (i5-1235U)
1x DDR4 3200 MHz up to 32GB RAM
12V, DC-in w/ 220VAC Power Adapter
4x USB 3.1 + 2x USB 2.0
2x COM (RS232)
2x Gigabit Ethernet LAN
WIFI and/or 4G/5G connectivity (Optional)
2x 4K Video interface (2x HDMI)

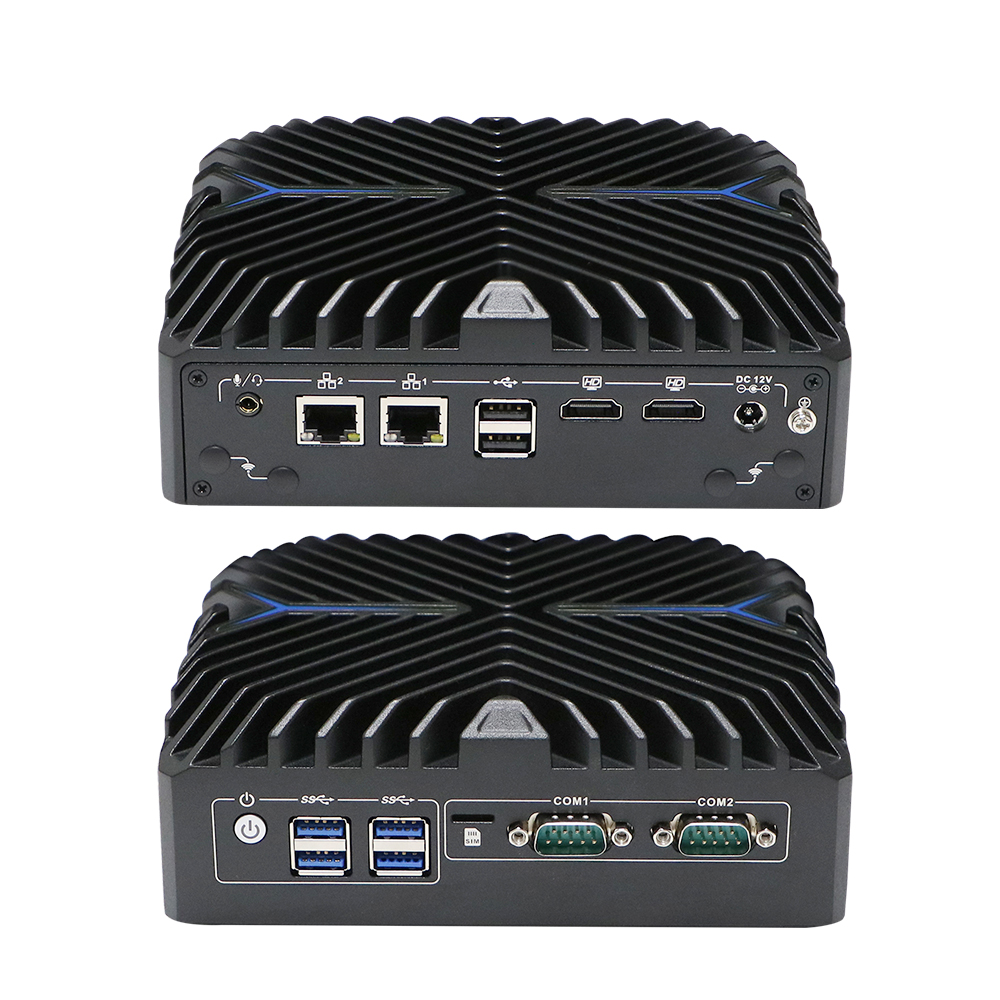

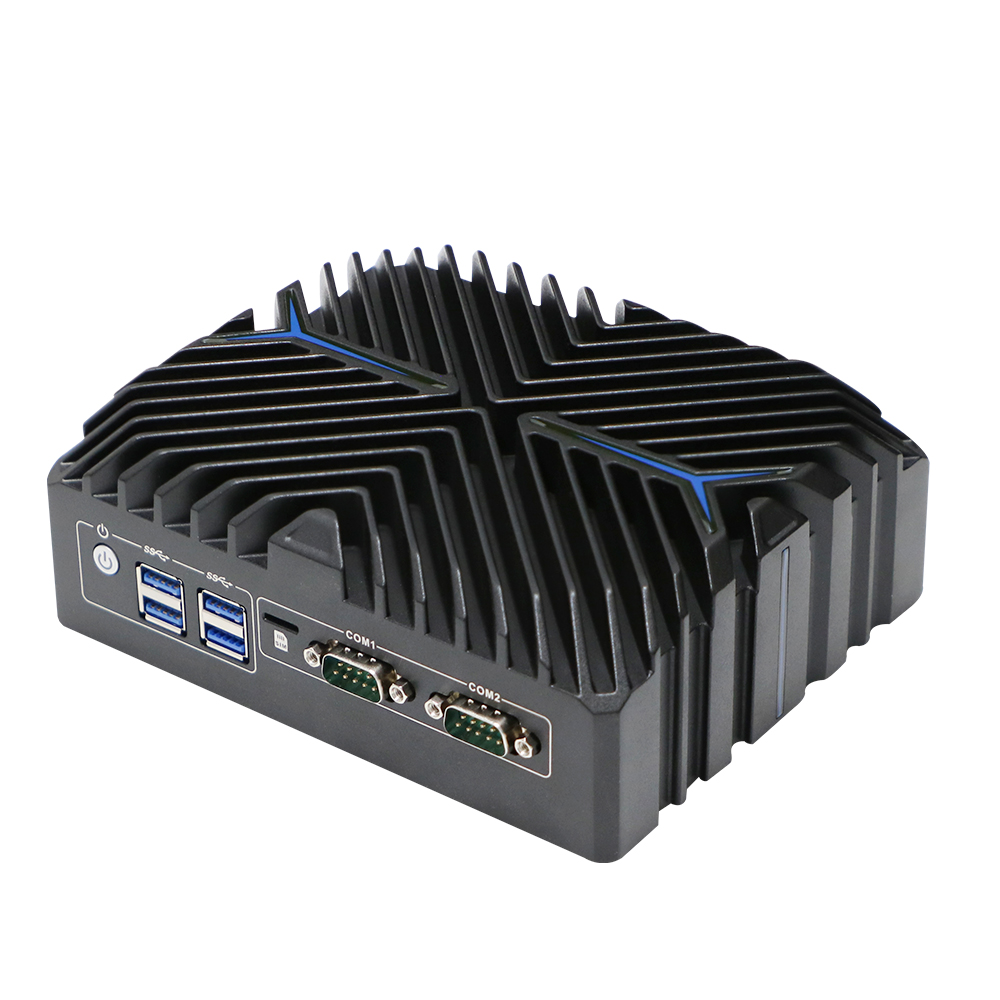

INDATECH Industrial IPC QUANTUM I5-1235U
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Core™ i5-1235U
10 Core / 12 Thread 3.3 GHz (Base) / 4.4 GHz (Turbo) 15W |
| MEMORY | |
| Capacity: | up to 32GB |
| Frequency: | 3200 MHz |
| Type: | 1x SO-DIMM DDR4 |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2: | 1x M.2 M-Key (2280, SATA +NVMe) |
| Storage Bay: | 1x Internal 2.5” SSD Bay |
| I/O INTERFACE | |
| Serial ports: | 2x COM RS232 |
| USB ports: | 4x USB 3.1 + 2x USB 2.0 |
| mPCIe | 1x Mini-PCIe Slot (WIFI) |
| M.2: | 1x M.2 B-Key Slot (3052, 4G/5G) |
| SIM: | 1x SIM Slot (MicroSIM) |
| AUDIO: | 1x Line-out/MIC-in Jack |
| VIDEO | |
| GPU: | Intel® UHD Graphics |
| Interface: | 1x HDMI 1.4 (Up to 4096×2160 @60Hz)
2x DP 1.4 (Up to 4096×2160 @60Hz) |
| ETHERNET | |
| LAN: | 2x Realtek 8111H Gigabit LAN |
| POWER | |
| Power in: | 12V, DC-in |
| Max Power: | 60W max |
| Adapter: | AC_90~240V / DC_12V_5A/60W |
| MECHANICAL | |
| Material: | High-quality aluminum |
| Dimensions: | (W)186x(D)126.5x(H)66mm |
| Weight: | <1.3 Kg |
| Mounting: | WallMount + VESA kit |
| ENVIRONMENT | |
| Operating temp.: | -20°C to +50°C -w/Air Flow |
| Storage temp.: | -20°C to 85°C |
| Humidity: | 10% to 90% RH @40°C, non-condensing |
| EMC: | CE, FCC, RoHS, LVD, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2, WMware ESXI 6.5 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| QUANTUM i5-1235U | 1000xxxx | xxxx | xxxx |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |

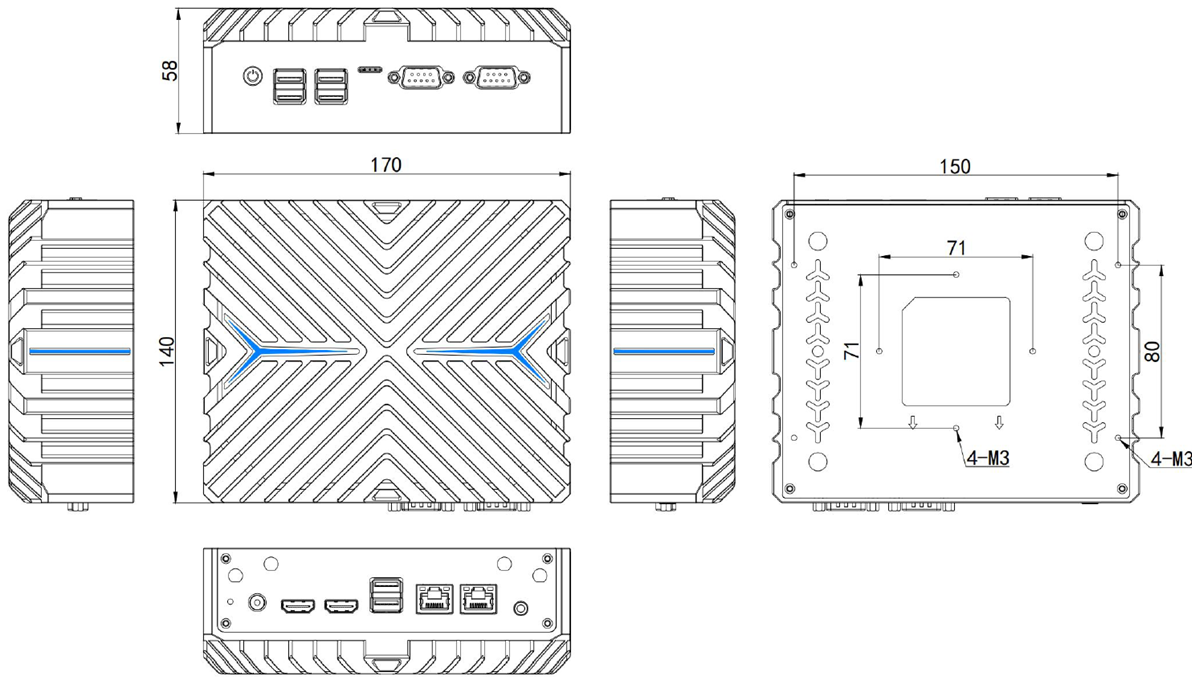

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| QUANTUM i5-1235U | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| QUANTUM i5-1235U | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| QUANTUM i5-1235U HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| QUANTUM i5-1235U drivers | TBD | TBD | TBD | |
