NEW

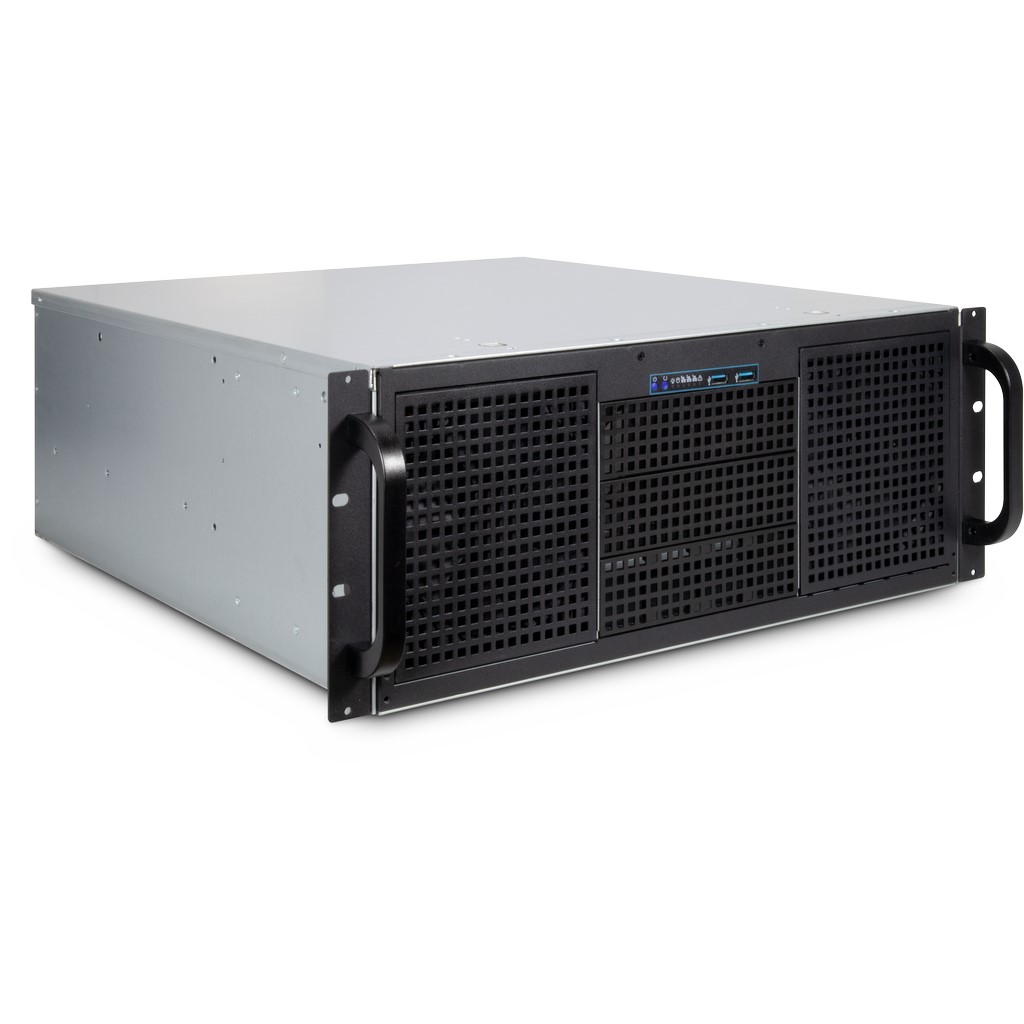

RT-QUATTRO Series
RACK 4U IPC for Operational Technology (OT) and Real-Time (RT) applications
Compatible with all major Real-Time Operative Systems (RTOS) like QNX & INtime.
Compatible with all major industrial Real-Time Ethernet and fieldbus protocols. Solution by HILSCHER
Up to 6x Real-Time Ethernet or Filedbus protocols.
Intel® 12th, 13th and 14th Gen Processors with Intel ECI and TCC
Up to 128GB ECC/Non-ECC RAM
24 VDC or 220 VAC Power option
6x USB 3.2 + 2x COM (RS232/422/485) + 1x HDMI 1x DP + 1x VGA
3x 2.5 Gigabit Ethernet LAN with IEEE 1588 and TSN
2x PCIe x16, 2x PCIe x4, 2x PCIe x1, 1x PCI
WIFI and/or 4G/5G connectivity (Optional)
Rack 19” 3U Mounting
INDATECH Industrial RACK 4U IPC for Operational Technology (OT) and Real-Time (RT) applications
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel ® 12th, 13th and 14th Gen Processors Up to 24 Core / 32 Thread From 1.0 GHz (Base) to 5.2 GHz (Turbo),125W |
| MEMORY | |
| Capacity: | up to 128GB |
| Frequency: | 5600 MHz |
| Type: | 2x Dual Channel DDR5 UDIMM ECC/Non Non-ECC |
| STORAGE | |
| SATA: | 4x SATA3 |
| M.2: | 1x M.2 M. Key (2242/2280) [SATA/NVMe] 1x M.2 M. Key (2242/2280) [NVMe] |
| Storage Bay: | 1x Internal 2.5” SSD Bay |
| I/O INTERFACE | |
| Serial ports: | 2x COM RS232/422/485 4x COM RS232 optional |
| USB ports: | 8x USB 3.2, |
| M.2: | 1x M.2 E E-Key Slot (2230) 1x M.2 B B-Key Slot (3042/3052) |
| SIM: | 1x Embedded SIM Slot |
| AUDIO: | 1x Line Line-In + out + Mic |
| PCI/PCIe Slot: | 2x PCIe x16, 2x PCIe x4, 2x PCIe x1, 1x PCI |
| VIDEO | |
| GPU: | Intel ® UHD Graphics |
| Interface: | 1x HDMI 2.0b (Up to 4096×2160 @60Hz) 1x DP 1.4a (Up to 4096×2160 @60Hz) 1x VGA (Up to 1920×1080 @60Hz) |
| ETHERNET | |
| LAN: | 3x Intel i225 i225-V/LM 2.5 Gigabit LAN (iAMT) |
| POWER | |
| Power in: | 24VDC or 220 VAC |
| Max Power: | TBD max |
| MECHANICAL | |
| Material: | Steel |
| Dimensions: | (W)482x(D)518x(H)178mm |
| Weight: | < 12 Kg |
| Mounting: | RACK 19” 4U Mounting |
| ENVIRONMENT | |
| Operating temp.: | -20°C to +60°C – w/Air Flow |
| Storage temp.: | -20°C to 85C |
| Humidity: | 0% to 90% RH @40°C, non non-condensing |
| EMC: | CE, RoHS |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 22.04.4 LTS, CentOS 8, Debian 12.5,
Fedora 40, pfSence 2.7.4, Vmware ESXi 8 |
| RTOS*: | Blackberrt QNX, TesAsys INtime, Wind River VxWorks, IntervalZero RTX64 |
| * Linux distributions & RTOS tested with the IPC. |
| The rights of all brand names, product names and trademarks belong to their respective owners. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| RT-QUATTRO Series | TBD | TBD | Contact for configuration |
Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| RT-QUATTRO Series | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| RT-QUATTRO Series Manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| RT-QUATTRO Series HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| RT-QUATTRO Series drivers | TBD | TBD | TBD | |
