NEW
SmartIOs
Modular and Extendable I/O Controller
It can be used standalone or with INDATECH SmartGate – Edge IOT Gateway –
RS485 interface with Modbus RTU communication
5* INDATECH SIO module variants are available:
# SIO-4ID4UD | 4x Digital Input + 4x Digital Output
# SIO-4IA4UD | 4x Analog Input (4~20mA) + 4x Digital Output
# SIO-4IA4UA | 4x Analog Input (4~20mA) + 4x Analog Output (4~20mA / 0~10V)
# SIO-8ID | 8x Digital Input
# SIO-8UD | 8x Digital Output
12~24 VDC, -25~75°C,
EMC Level 3, 79.6x 28 x110 mm
INDATECH SmartIOs – Industrial IO Controller
Specifiche tecniche
| I/O INTERFACE | |
| DI: | Digital Opto Opto-isolated input 0~2V Logic Low, 9~36V Logic High |
| DO: | Relay (100,000 endurance) DC contacts rating 3A / 30V DC AC contacts rating 3A / 250V AC, NO |
| AI: | Analog Input 4~20mA |
| AO: | Analog Output Voltage Output 0~10V Current Output 4~20mA |
| COMMUNICATION INTERFACE | |
| COM: | RS485 |
| Protocol: | Modbus RTU Slave address 1~255 |
>
| POWER | |
| Power in: | 12~24V, DC-in |
| MECHANICAL | |
| Material: | ABS housing, IP30 |
| Dimensions: | (W)28x(D)79.6x(H)110mm |
| Weight: | <0.1 Kg |
| Mounting: | Wall/Book and DIN Rail Mount |
| ENVIRONMENT | |
| Operating temp.: | -25~75°C |
| Storage temp.: | -40°C to 85°C |
| Humidity: | 10% to 90% RH @40°C, non-condensing |
| EMC: | Level 3, IEC 61000, CE, FCC, RoHS |
Codici di ordinazione
| IPC | |||
| PART NUMBER | MODEL NAME | DESCRIPTION | |
| 10006849 | SIO-4ID4UD | 4x Digital Input + 4x Digital Output | |
| 10006850 | SIO-4IA4UD | 4x Analog Input (4~20mA) + 4x Digital Output | |
| 10006851 | SIO-4IA4UA | 4x Analog Input (4~20mA) + 4x Analog Output (4~20mA / 0~10V) | |
| 10006852 | SIO-8ID | 8x Digital Input | |
| 10006853 | SIO-8UD | 8x Digital Output (3A) | |

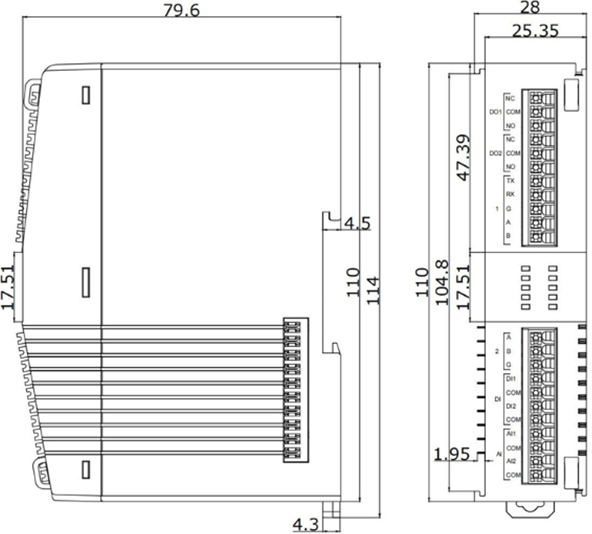

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| SmartIOs | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| SmartGate Manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| SmartIOs HIG | TBD | TBD | TBD | |
