TIGER EXP
11st Gen. Intel® Tiger Lake – UP3 ULV CPU
Core i7/i5/i3 / Celeron, 15W/28W
Intel® Iris Xe Graphics
up to 32GB RAM
Multiple Interface options
(Up to 12xLAN, Up to 8xPoE, Up to 12xCOM, Up to 16xGPIO, Up to 2xCANbus)
Wide Power Range 12V ~ 36V DC-in
Up to 4x Intel® Ethernet LAN
(1x 2.5GbE + 1x 1GbE + 2x 1GbE (on request))
WIFI and/or 4G/5G connettivity (optional)
4x Video interface (2x HDMI 2.0b – 2x DP 1.4)

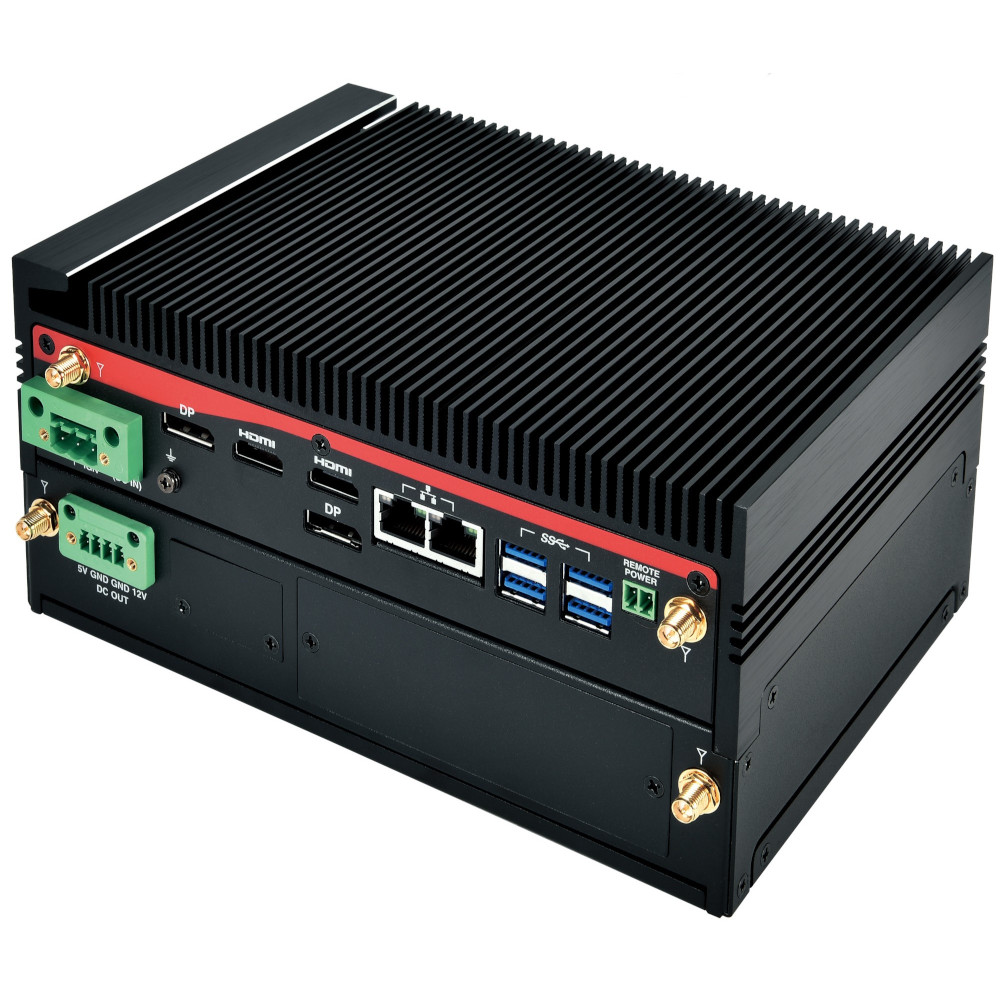

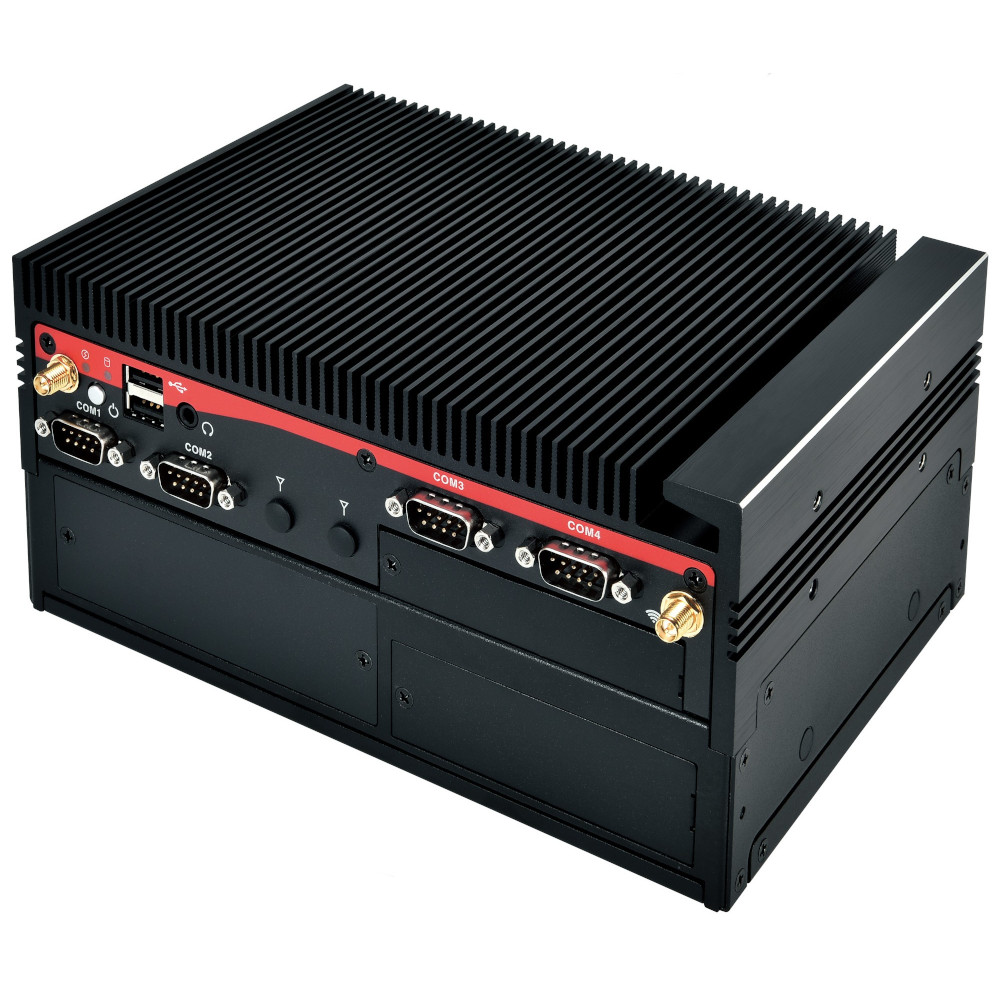

INDATECH Industrial PC TIGER EXP
Specifiche tecniche
| MAINBOARD | |
| CPU: | 11st Gen Tiger Lake-UP3 ULV CPU
Celeron 6305E – 2 Core/2 Tread 1.8GHz, 15W i3-1115G4E – 2 Core/4 Tread 3.9GHz, 15/28W i5-1145G7E – 4 Core/8 Tread 4.1GHz, 15/28W i7-1185G7E – 4 Core/8 Tread 4.4GHz, 15/28W |

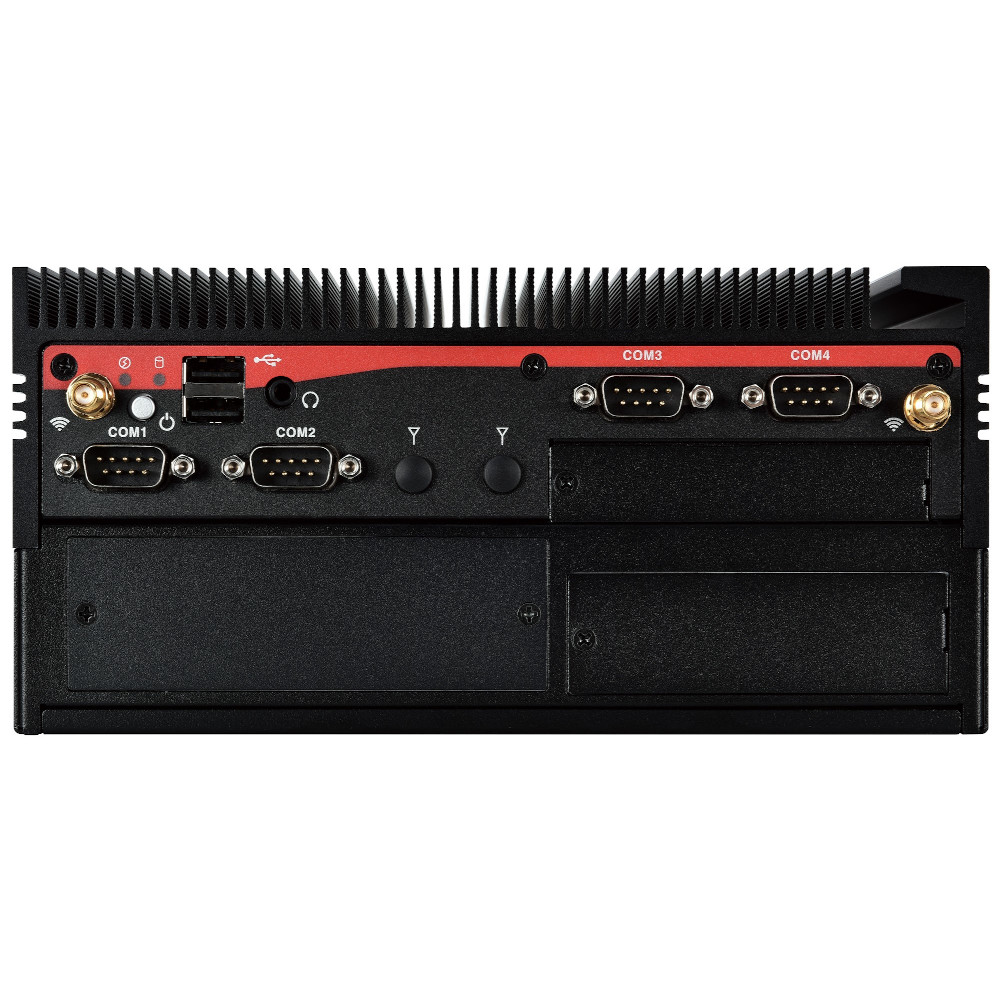

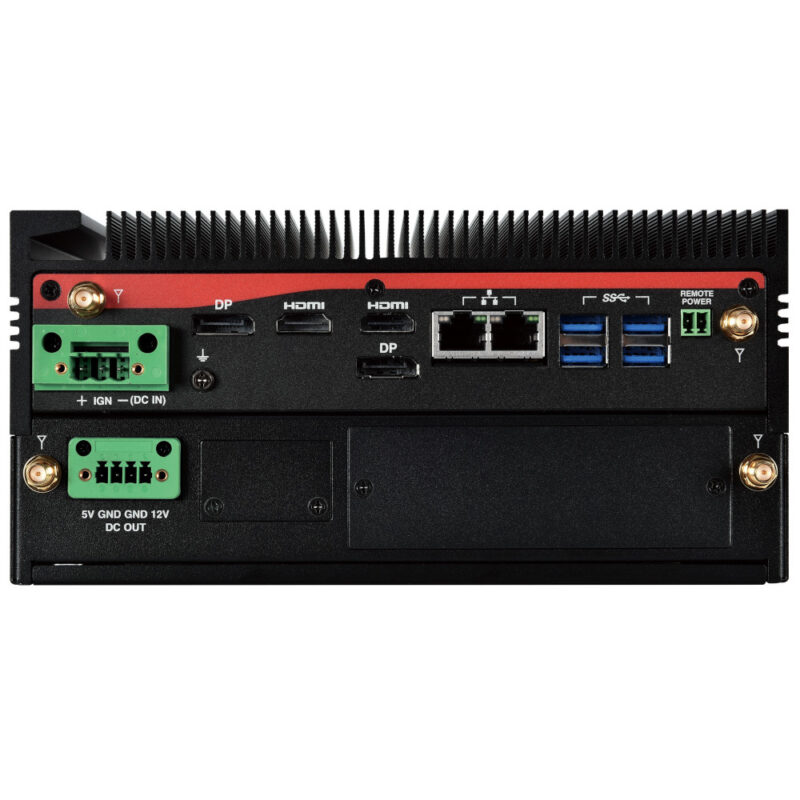

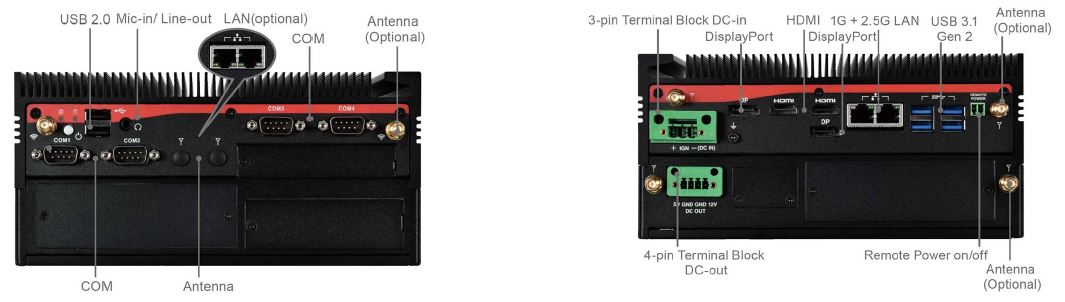

| MEMORY | |
| Capacity: | up to 32GB |
| Frequency: | 3200 MHz |
| Type: | 1x SO-DIMM DDR4 |
| STORAGE | |
| SATA: | 2x SATA3 |
| M.2 | 1x M.2 M-Key (2242/2260/2280) |
| mSATA: | 1x mSATA |
| Storage Bay: | 2x Hot Swappable 2.5” SSD Tray |
| I/O INTERFACE | |
| Serial ports: | 1x COM RS232/422/485
3x COM RS232 |
| USB ports: | 4x USB 3.1 Gen 2,
2x USB 2.0 |
| Mini-PCIe: | 1x Mini-PCIe Full size (support SATA3) |
| M.2: | 1x M.2 E-Key (2230) (PCIe/USB) for WIFI (on request)
1x M.2 B-Key (2240/2260/2280/3042/3052) (USB 2.0 / *PCIeX1 / SATA3) for Storage/LTE/5G *Not support M.2 M-Key NVMe SSD |
| AUDIO: | 1x MIC/Line-out Jack |
| Optional: | 1x COM or GPIO |
| VIDEO | |
| GPU: | Intel® Iris Xe Graphics |
| Interface: | 2x HDMI 2.0b (Up to 4096×2304 @60Hz)
2x DP 1.4 (Up to 7680×4320 @60Hz) |
| ETHERNET | |
| LAN: | 1x Intel® i219-LM PHY GbE LAN (iAMT 11.0)
1x Intel® i225-LM 2.5GbE LAN 2x Intel® i210-IT GbE LAN (on request) |
| POWER | |
| Power in: | 8~24V, DC-in |
| Max Power: | 60W max |
| Adapter: | AC_90~240V / DC_24V_3A/72W |
| MECHANICAL | |
| Material: | Top cover: aluminum alloy; Bezel and chassis:steel |
| Dimensions: | (W)210x(D)150x(H)103mm |
| Weight: | 2.2Kg |
| Mounting: | WallMount / Side Mount / 75×75 VESA Holes + DIN Rail Kit (Optional) |
| ENVIRONMENT | |
| Operating temp.: | -40°C~60°C (28W) / 70°C (15W) |
| Storage temp.: | -40°C~85°C |
| Humidity: | 10% ~ 95% Humidity, non-condensing |
| EMC: | CE, FCC, Class A, RoHS, LVD, IEC600068-2-27/64 |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| TIGER-EXP | TBD | TBD | TBD |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |

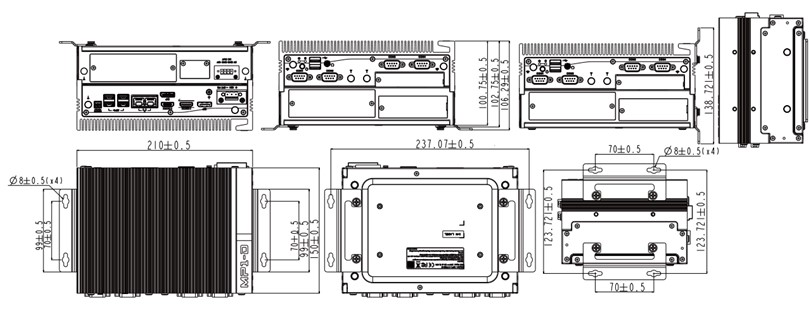

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| TIGER-EXP | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| TIGER-EXP manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| TIGER-EXP HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| TIGER-EXP drivers | TBD | TBD | TBD | |
